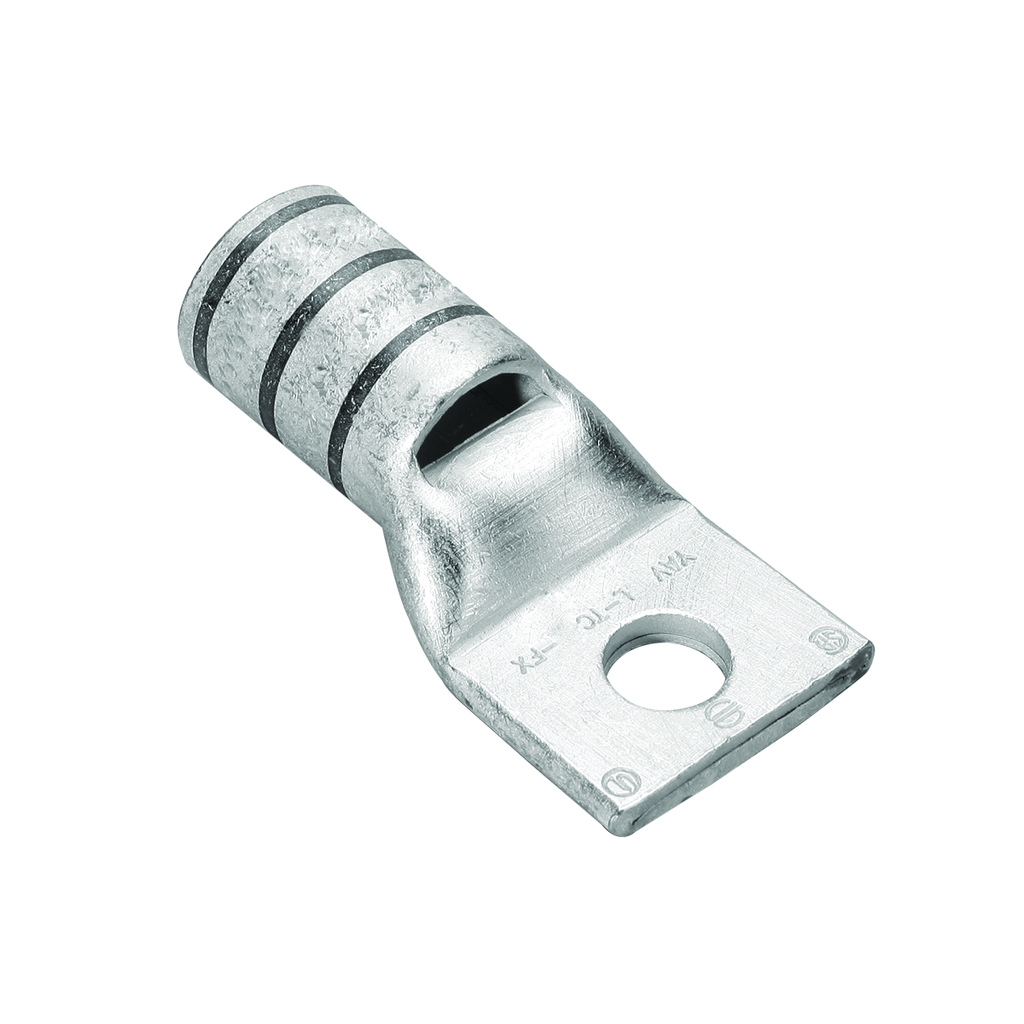

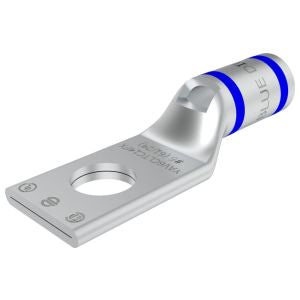

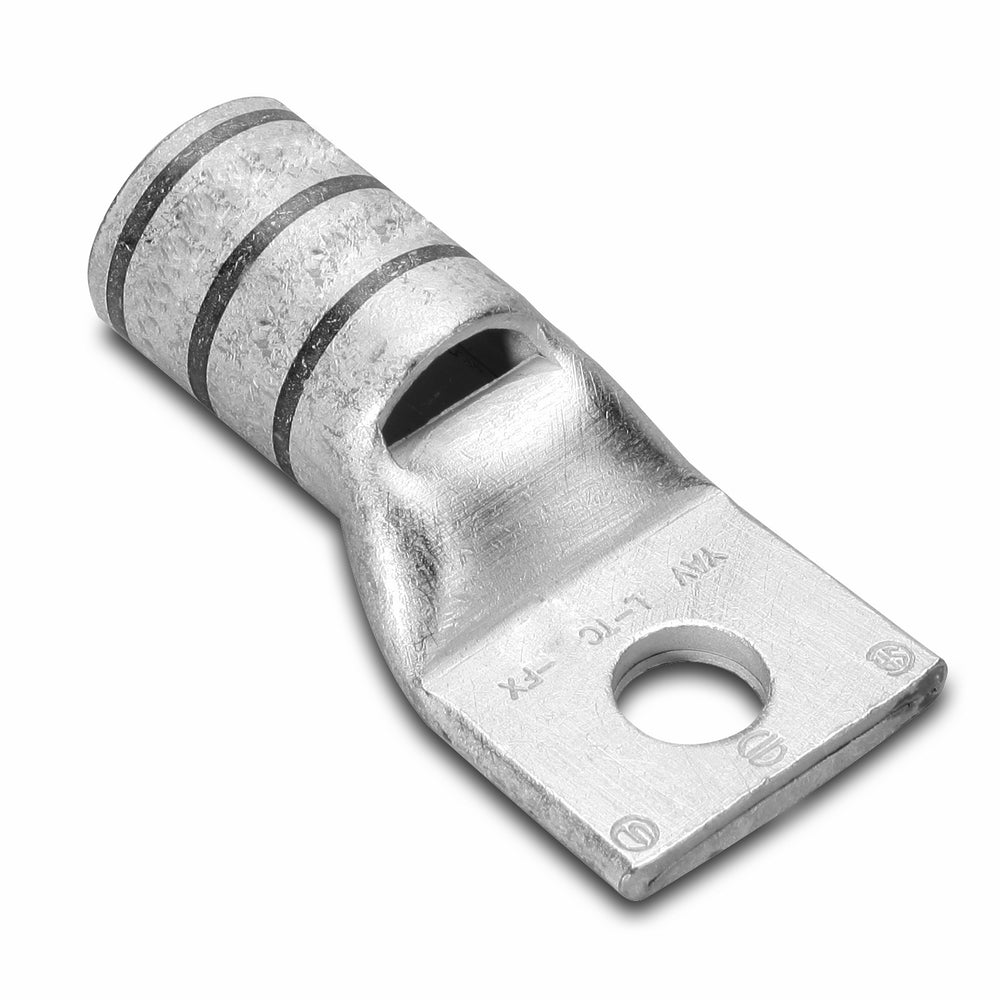

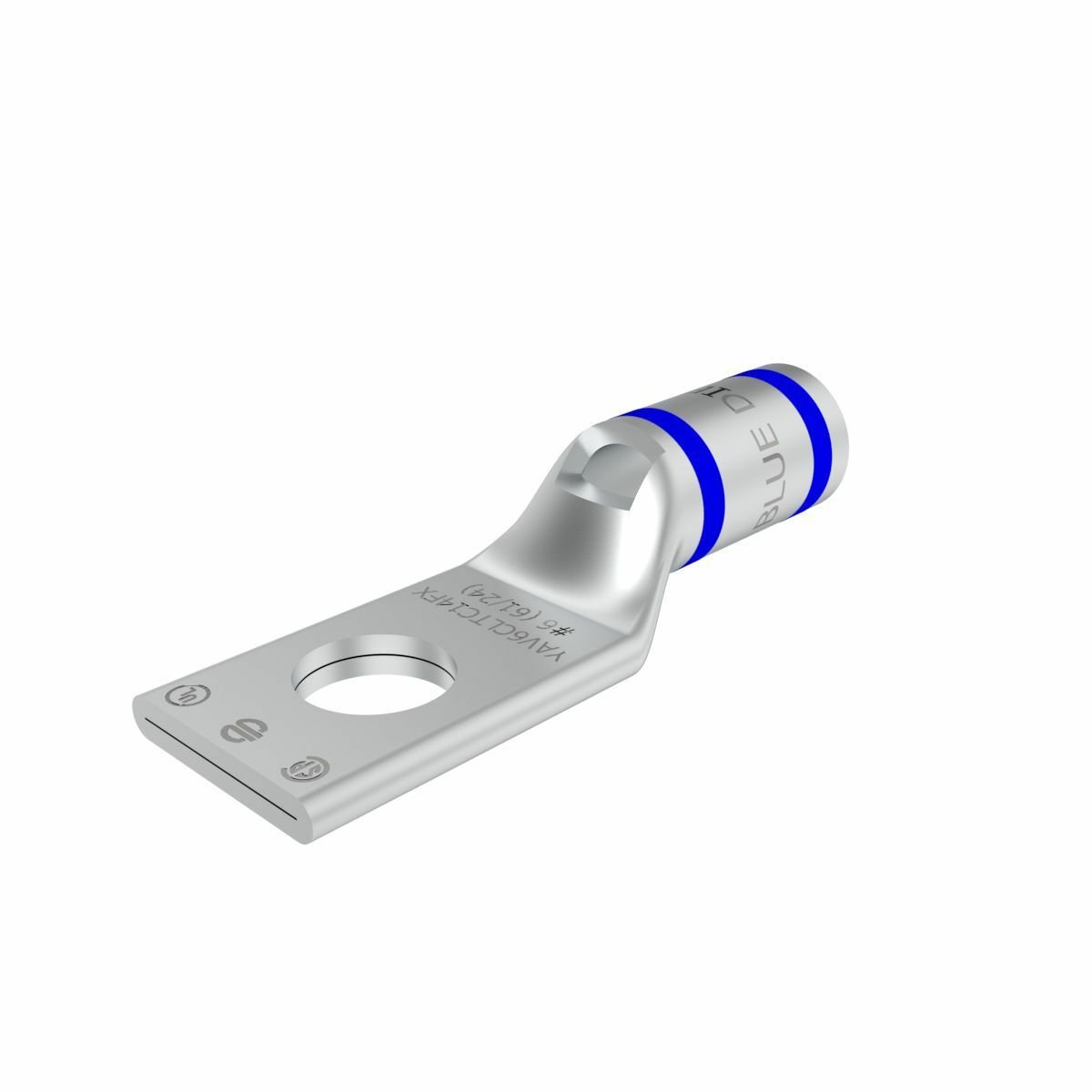

Burndy YAV6CLTC14FX 6 Flex G,H,I,K,M,DLO, 6 AWG CU, One Hole, 1/4 Stud Size, Standard Barrel, Inspection Window Internal Chamfer

Product Description

The Burndy YAV6CLTC14FX is a compression lug designed for wire termination. This copper lug is suitable for 6 AWG conductors with a one-hole configuration and 1/4 inch stud size. The standard barrel includes an inspection window and features an internal chamfer.

• UL Listed for 90 degrees Celsius, rated up to 35kV.
• Electro-tin plating enhances durability and conductivity.
• Compatible with flexible conductors and designed for ease of installation.

Product Highlights

This lug is ideal for various electrical applications, ensuring reliable connections in demanding environments.

Product Information

Standard Information

• Brand: Burndy
• Sub Brand: HYLUG

Technical Specifications

• Material: Copper
• Voltage Rating: 35,000 Volt
• Type: Standard Barrel, Tin Plated
• Width: 0.48 in
• Height: 0.31 in
• Length: 1.43 in
• Hole Size: 7 mm
• Stud Size: 0.25 in
• Color Coding: Blue
• Buy American Compliant: Yes
• Country of Origin: USA
