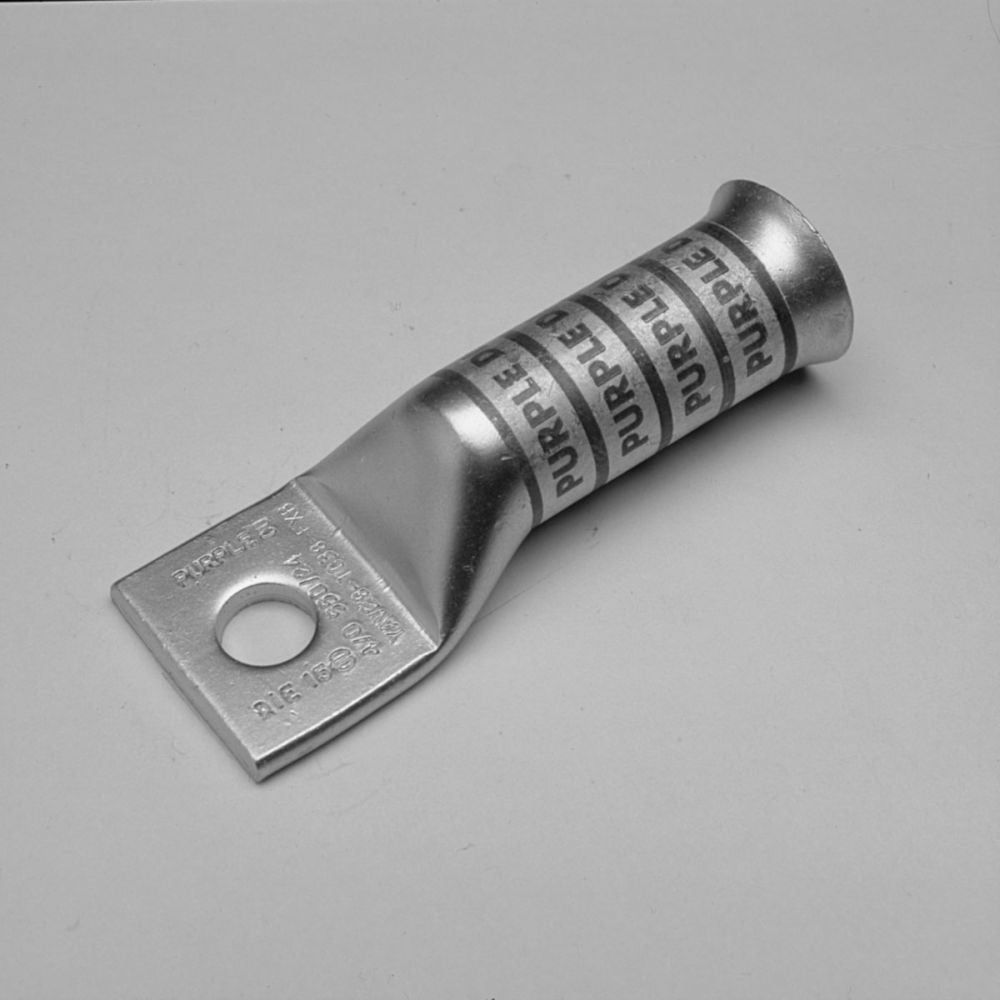

Burndy YAV4CTC516FXB Terminal Lug Compression Terminal 600V to 35kV

Product Description

The Burndy YAV4CTC516FXB is a compression terminal designed for use in various electrical applications. It has a voltage rating ranging from six hundred volts to thirty-five kilovolts, making it suitable for high-voltage environments. The terminal securely connects copper conductors sized from ninety-one twenty-fourths to one hundred five twenty-fourths AWG, including diesel locomotive cables and stranded barrel types.

• Rated for voltages up to 35 kV
• Compatible with various conductor sizes
• Constructed with electro-tin plated copper

Product Highlights

This product is ideal for electrical connections in commercial and industrial applications. Its features include a standard straight barrel design, easy installation, and a long service life. The terminal is UL 468A/468B approved and compliant with RoHS regulations.

Product Information

Standard Information

• Manufacturer: Burndy
• UPC: 78181006553

Technical Specifications

• Voltage Rating: 600V to 35kV
• Conductor Material: Copper
• Conductor Size: 91/24 to 105/24 AWG
• Barrel Type: Long, Belled, Standard, Straight
• Barrel Length: 1.22 inches
• Pad Size: 0.55 inches W x 0.09 inches thick
• Number of Pad Holes: 1
• Stud Size: 5/16 inches
• Die Index: 8
• Overall Length: 2.24 inches
• Temperature Rating: 90 degrees Celsius
• Wire Strip Length: 1-5/16 inches
