Burndy YAV4CL4BOX BUR YAV4CL4BOX 4AWG Ring Lug 4AWG

Product Description

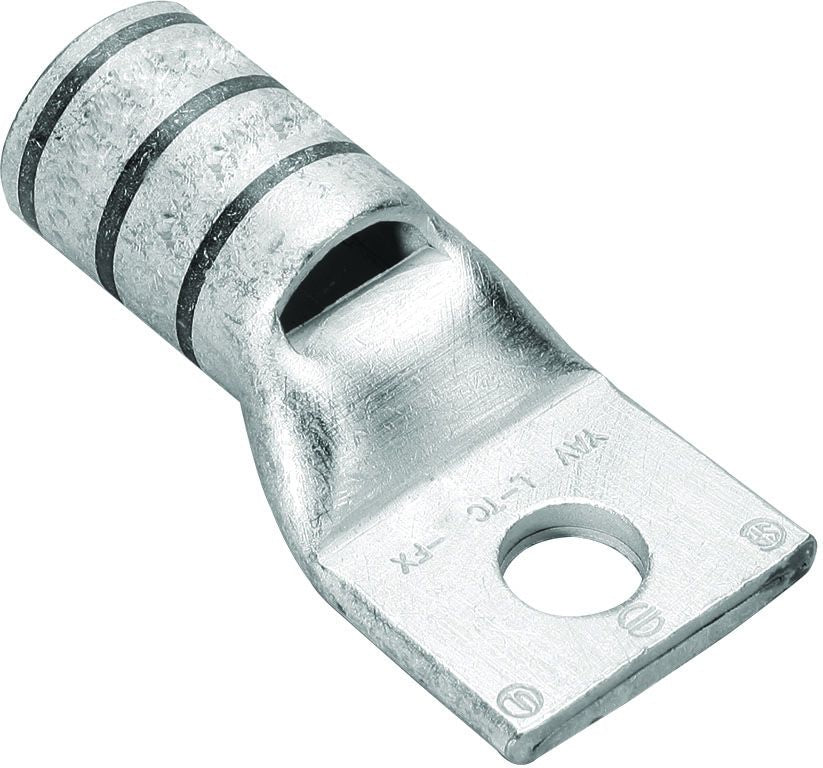

The Burndy YAV4CL4BOX is a compression ring tongue terminal designed for high conductivity applications. It is suitable for 4 AWG (aircraft/flex) conductors. The terminal is made from electrolytic tin plated copper, ensuring durability and performance in demanding electrical environments.

• Type: Beveled compression ring
• Stud Size: 5/16 inch
• Approval: UL, CSA

Product Highlights

This terminal is RoHS compatible and designed for ease of installation on AN type aircraft cable, extra flexible conductor, and commercial conductor.

Product Information

Standard Information

• Manufacturer: Burndy
• UPC: 78181053935
• Minimum Order Quantity: 1
• Availability: Call for availability

Technical Specifications

• Maximum Conductor Size: 4 AWG
• Insulation Type: Non-insulated
• Dimension: 1.48 inches length x 0.63 inches width
• Wire Strip Length: 1/2 inch
• Die Index: 40
• Package Weight: 0.0200 lb
• Country of Origin: USA
• Item Returnable: No
