Product Description

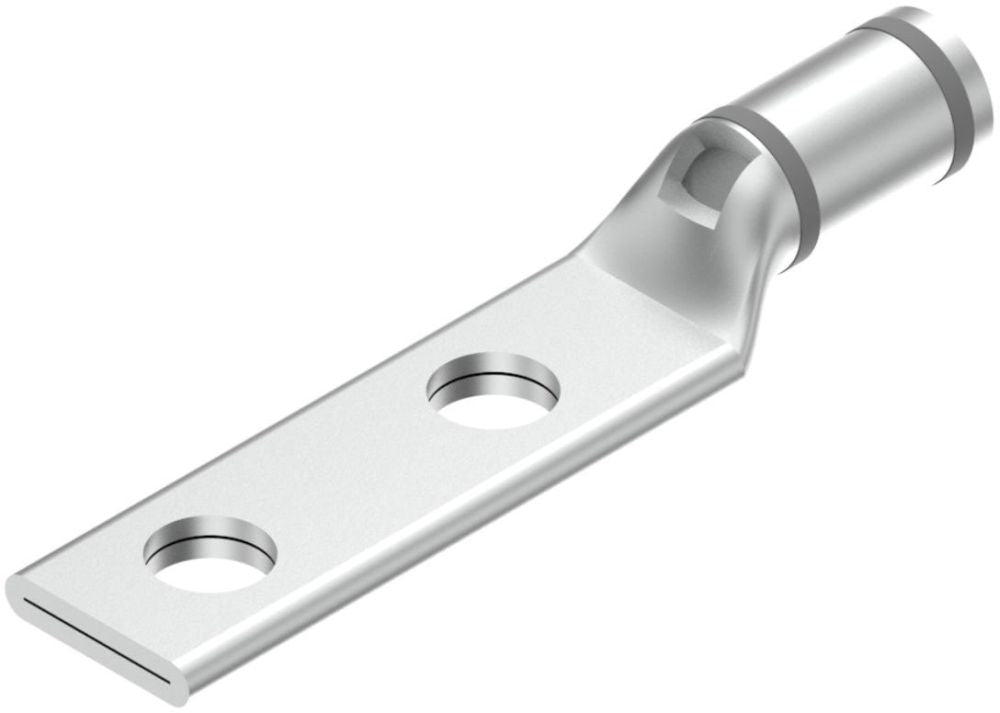

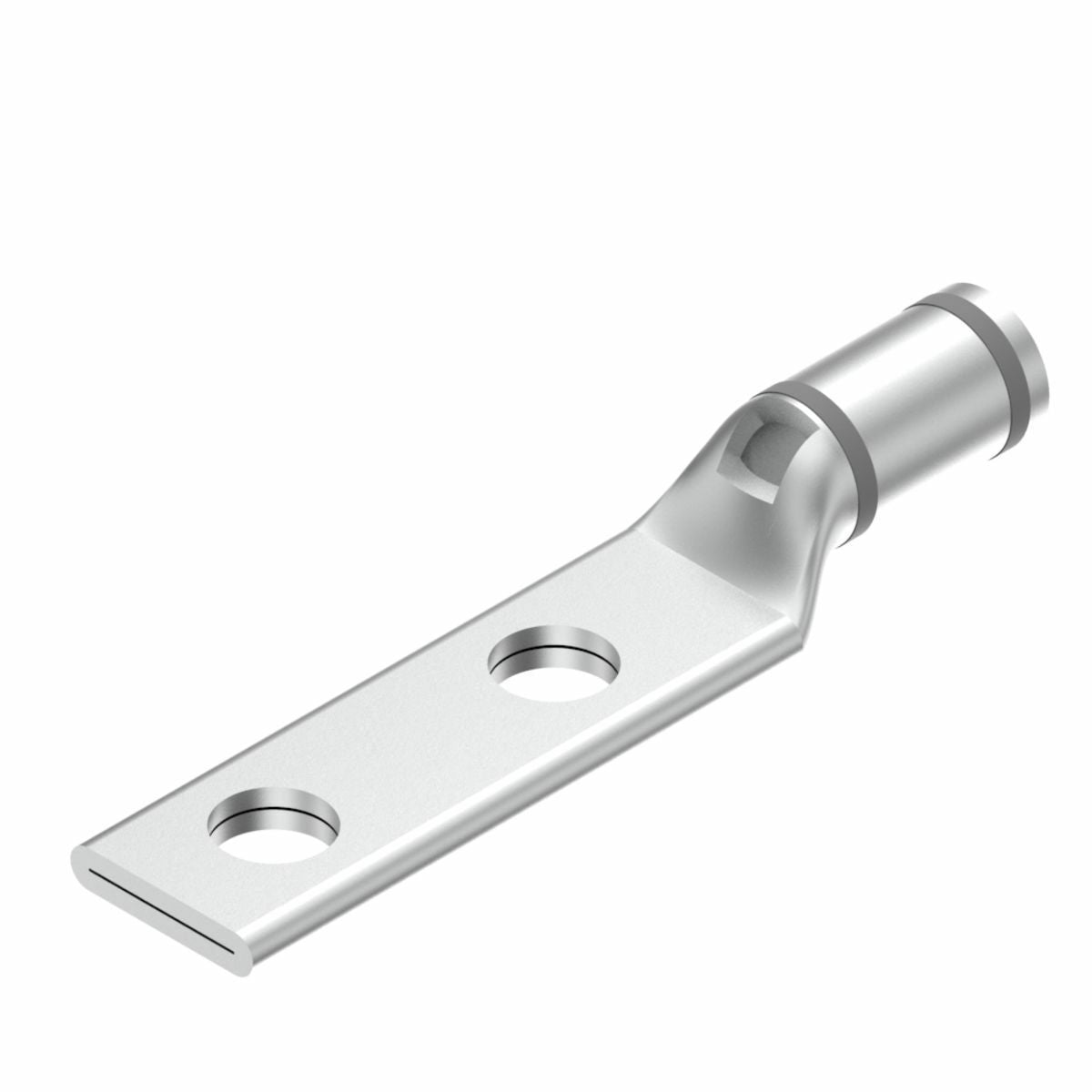

The Burndy YAV4CL2TC14FX is a copper compression lug designed for effective wire termination. This product features a two-hole design with an inspection window for easy installation and verification. With specifications that support 4 AWG conductor sizes, it is suitable for various applications.
- UL Listed for 90 Deg C, 600 V - 35 kV
- Suitable for commercial stranded copper and flexible copper
- Electro-tin plating for corrosion resistance
Product Highlights
This lug is ideal for ensuring strong electrical connections in various settings, including electrical panels and junction boxes. It also supports beveled entry for easier cable insertion.
Product Information
Standard Information
-
Manufacturer: Burndy, a Hubbell affiliate
-
Country of Origin: United States
Technical Specifications
-
Catalog Number: YAV4CL2TC14FX
-
Material: Copper
-
Voltage Rating: 35 kV
-
Special Features: UL Listed, Inspected
-
Wire Strip Length: 1/2 inches
-
Overall Length: 2.08 inches
-
Pad Hole Size: 5/8 inches
