Burndy YAV2CL2TC38FX 2 Flex G,H,I,K,M,DLO 2 AWG CU Two Hole 3/8 Stud Size 1 Hole Spacing Standard Barrel Inspection Window Internal Chamfer Tin Plated UL/CSA 90°C Up to 35kV Brown Color Code 10 Die Index

Burndy YAV2CL2TC38FX 2 Flex G,H,I,K,M,DLO 2 AWG CU Two Hole 3/8 Stud Size 1 Hole Spacing Standard Barrel Inspection Window Internal Chamfer Tin Plated UL/CSA 90°C Up to 35kV Brown Color Code 10 Die Index

Brand: BURNDY
SKU: YAV2CL2TC38FX
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12pm
$21.99
$21.99
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

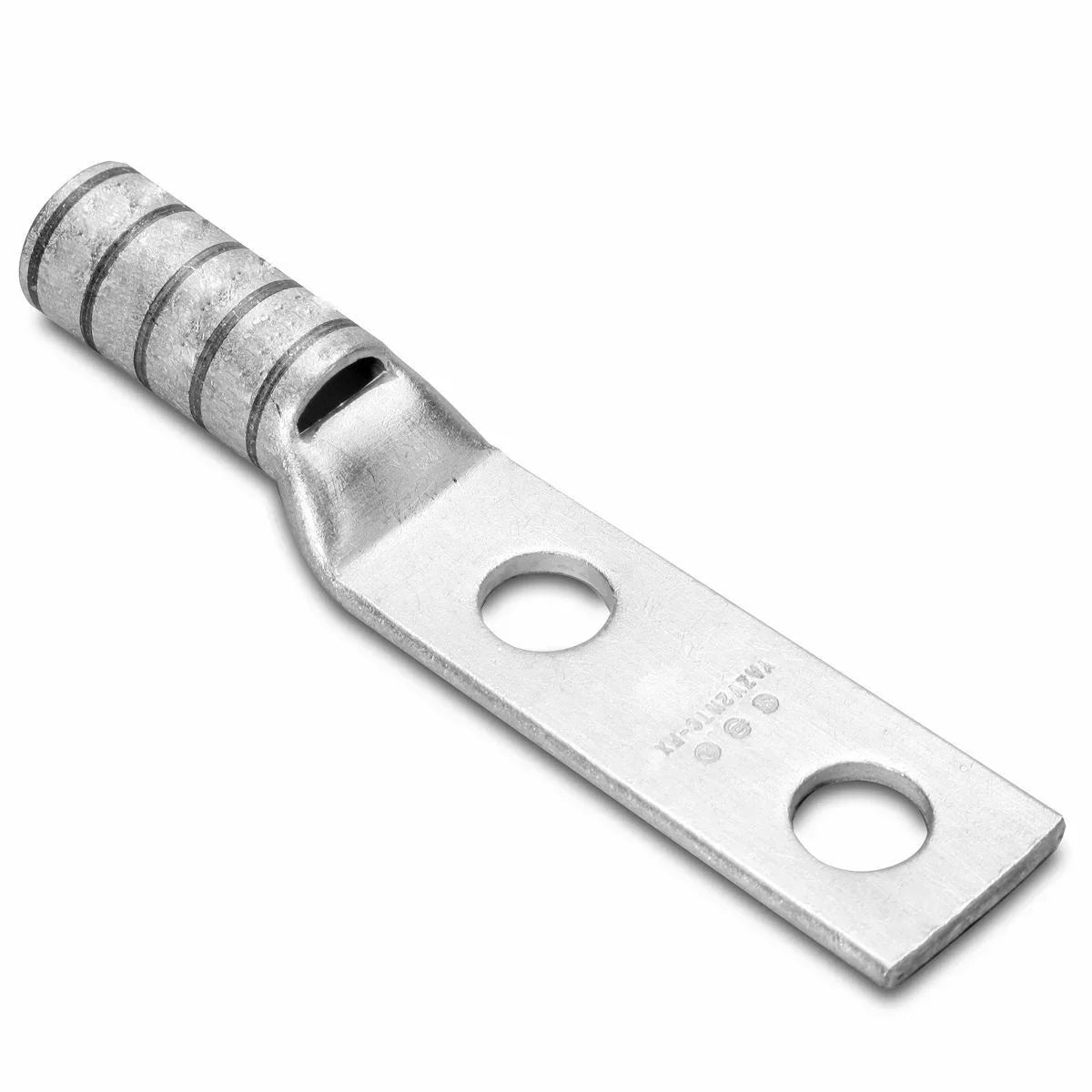

The Burndy YAV2CL2TC38FX is a compression cable lug designed for wire termination applications. It is suitable for high voltage ratings, up to thirty-five kilovolts.

  • Constructed from copper for improved conductivity.
  • Features tin plating for enhanced durability.
  • Complies with UL and CSA standards.

Product Highlights

This product is ideal for electrical applications where reliable connections are required.

Product Information

Standard Information

  • Catalog Number: YAV2CL2TC38FX
  • Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

  • Material: Copper
  • Voltage Rating: 35 kV
  • Wire Strip Length: 11/16 inches
  • Tongue Angle: Straight
  • Pad Size: 0.68 inches W x 0.1 inches thick
  • Pad Hole Spacing: 1 inch
  • Color Code: Brown
  • Die Index: 10
Burndy YAV2CL2TC38FX 2 Flex G,H,I,K,M,DLO 2 AWG CU Two Hole 3/8 Stud Size 1 Hole Spacing Standard Barrel Inspection Window Internal Chamfer Tin Plated UL/CSA 90°C Up to 35kV Brown Color Code 10 Die Index

BURNDY

Burndy YAV2CL2TC38FX 2 Flex G,H,I,K,M,DLO 2 AWG CU Two Hole 3/8 Stud Size 1 Hole Spacing Standard Barrel Inspection Window Internal Chamfer Tin Plated UL/CSA 90°C Up to 35kV Brown Color Code 10 Die Index

$21.99
Burndy YAV2CL2TC38FX 2 Flex G,H,I,K,M,DLO 2 AWG CU Two Hole 3/8 Stud Size 1 Hole Spacing Standard Barrel Inspection Window Internal Chamfer Tin Plated UL/CSA 90°C Up to 35kV Brown Color Code 10 Die Index

BURNDY

Burndy YAV2CL2TC38FX 2 Flex G,H,I,K,M,DLO 2 AWG CU Two Hole 3/8 Stud Size 1 Hole Spacing Standard Barrel Inspection Window Internal Chamfer Tin Plated UL/CSA 90°C Up to 35kV Brown Color Code 10 Die Index

$21.99
