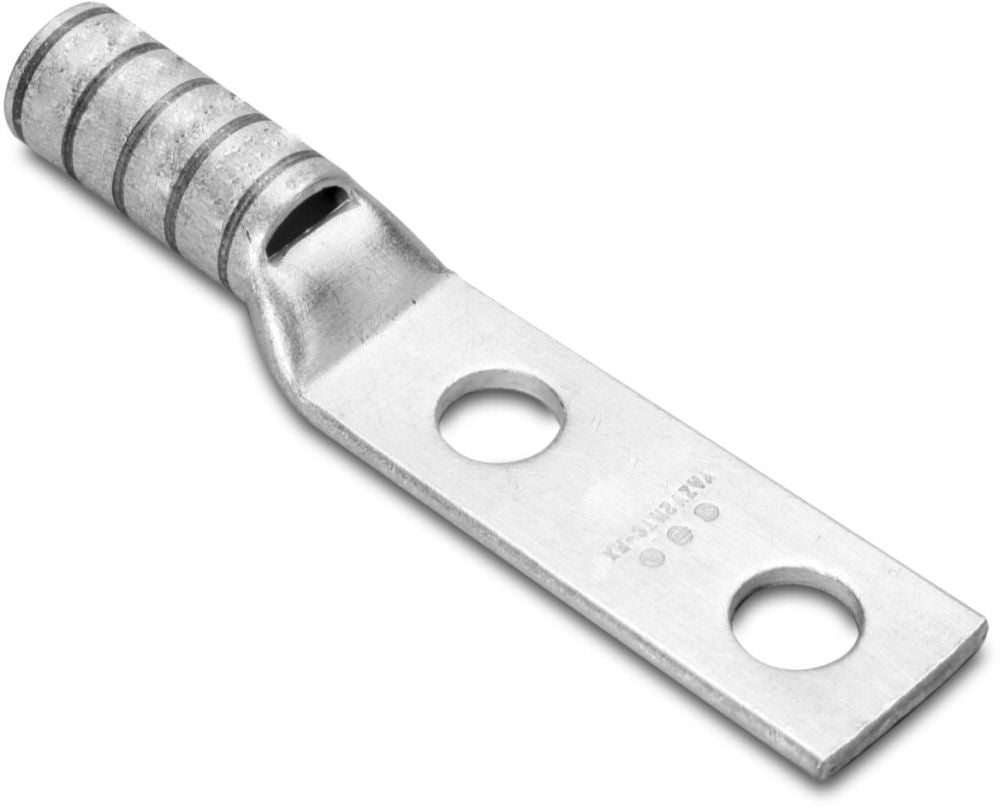

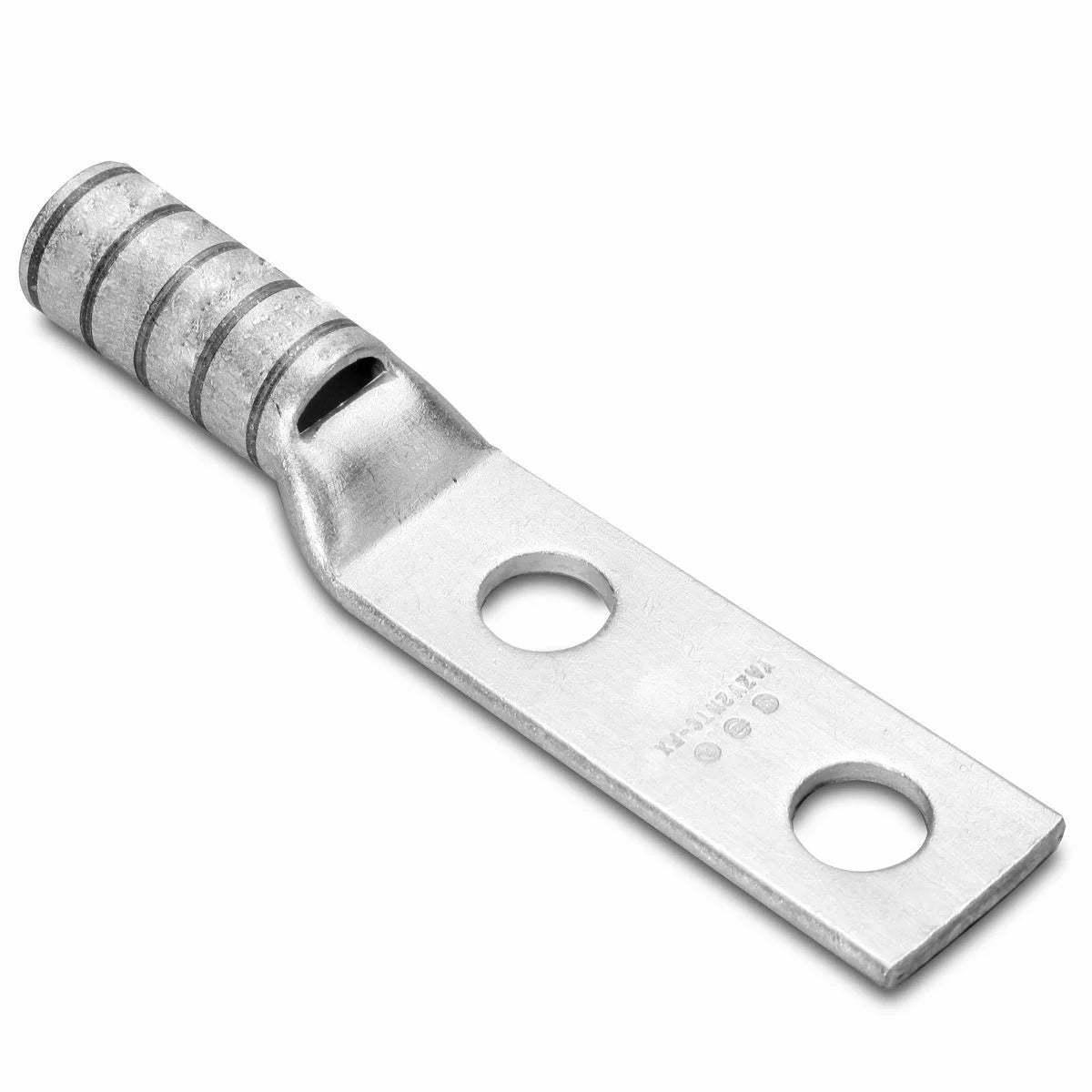

BURNDY YAV2CL2TC14FX Copper Compression Lug, 2 Hole w/ Inspection Window, 2 Flex, 1/4 Stud, 5/8 Stud Hole Spacing, Short Barrel, Tin Plated

Product Description

The BURNDY YAV2CL2TC14FX is a copper compression lug designed for reliable wire terminations. It features a two-hole configuration with an inspection window, making it suitable for various wire sizes. Ideal for use in commercial and industrial applications.

• Voltage Rating: 600 V to 35 kV
• Material: Copper with Electro-Tin Plating
• Made in USA

Product Highlights

This product is UL Listed and meets standards for wire termination. It offers a temperature rating of ninety degrees Celsius and is compatible with various tools for easy installation.

Product Information

Standard Information

• Brand: BURNDY
• UPC: 781810022207

Technical Specifications

• Catalog Number: YAV2CL2TC14FX
• Manufacturer: Burndy, a Hubbell affiliate
• Application: Wire Termination
• Special Features: UL Listed 90 DEG C, 600 V - 35 KV
• Wire Strip Length: 11/16 inches
• Overall Length: 2.26 inches
• Pad Size: 0.68 inches W x 0.1 inches thick
• Pad Hole Spacing: 5/8 inches
