Burndy YAV2CL Hylug Copper Compression Lug 2 AWG 3/8 inches Stud

Product Description

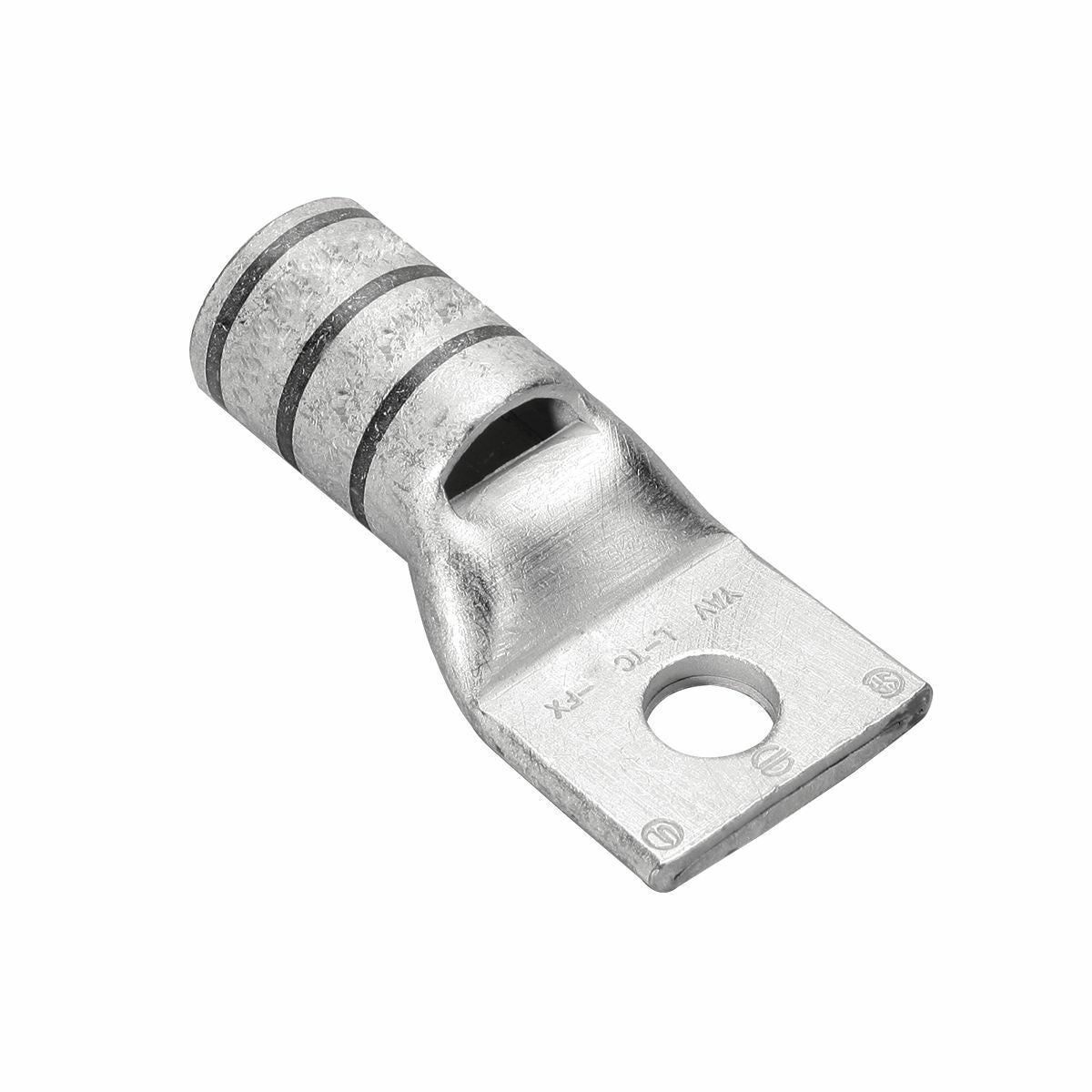

The BURNDY YAV2CL HYLUG is a seamless, heavy-duty, uninsulated copper compression lug designed for use on AN aircraft cable, extra flexible conductors, and commercial conductors. It features a ring tongue with one hole and an inspection hole, suitable for a 3/8" stud. The seamless tubing creates a double-thick tongue and barrel for demanding, high-reliability applications.

• Manufactured from electrolytic copper.
• Features a short barrel and is tin-plated.
• Suitable for use in industrial, hospital, marine, and computer applications.

Product Highlights

This heavy-duty lug ensures a strong, dependable electrical connection in environments subject to vibration or requiring consistent performance.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YAV2CL
• Country of Origin: USA

Technical Specifications

• Catalog Number: YAV2CL
• Brand: Burndy
• Manufacturer: Burndy
• Sub Brand: Hylug™
• Cable Size: 2 AWG Flex
• Barrel Type: Short
• Tongue Type: Ring
• Applications: For Use on Type AN Aircraft Cable, Extra Flexible Conductors and Commercial (Code) Conductors, Industrials, Hospitals, Electric Utilities, Marine, Computers
• Plating Type: Tin - Electro Plated
• Mounting Type: 10 mm Hole
• Conductor Size: 2 AWG Flexible
• Overall Length: 1.72 in
• Connection Type: Ring Terminal
• Number of Holes: 1 Hole
• Type: Heavy-Duty, Uninsulated
• Width: 0.69 in
• Finish: Electro Tin Plated
• Height: 0.46 Inch
• Length: 1.72 Inch
• Plated?: Yes
• Material: Copper
• Country of Origin: USA
• Hole Size: 10 mm
• Stud Size: 3/8 in
• Standard: UL467;Military Specified (Mil-Spec)
• Item Type: Ring Tongue
• Lug Wire Size: 2 AWG
• Maximum Conductor Size: 2 AWG (Aircraft/Flex)
• Insulation Type: Non-Insulated
• RoHS Compatible: True
• Die Index: 41
• Used On: AN Type Aircraft Cable, Extra Flexible Conductor and Commercial Conductor
• Feature - Barrel Style: Chamfered
• Material Composition: DLP Copper Tin Plating
• Military Specification: AS20659
• Physical Attribute - Number of Holes: 1
• Physical Attribute - Tongue Type: Ring
• Dimension - B Length inch: 0.53 in
• Dimension - Bolt Hole Size inch: 0.39 in
• Dimension - Bolt Size fraction: 3/8
• Dimension - Hole Size mm: 10 mm
• Dimension - Length Overall inch: 1.72 in
• Dimension - N inch: 0.34 in
• Dimension - Outside Diameter inch: 0.46 in
• Dimension - Pad Width inch: 0.69 in
• Dimension - Strip Length inch: 5/8
• Dimension - Stud Size inch: 3/8 in
• Dimension - Z (inch): 0.35 in
• Physical Attribute - Tongue Angle: Straight
• Conductor - Copper Flex G Size: 2
• Conductor - Copper Flex H Size: 2
• Conductor - Copper Flex I Size: 2
• Conductor - Copper Flex K Size: 2
• Conductor - Copper Flex M Size: 2
• Conductor - Copper Str Aircraft Size: AN-2
• Conductor - Copper Str Size: 2
• Conductor - Copper Str Size Range: 2 AWG
• Conductor Type: Stranded Copper
• Voltage Rating: 600 VAC
• Wire Strip Length: 5/8 Inch
• Die Code: 41
• Series: YAV-L
• Wire Strip: 5/8 in L
• Tongue Size: 0.69 in W
• Application: Used on Type AN aircraft cable, extra flexible conductors and commercial (code) conductors, industrials, hospitals, electric utilities, marine, computers and other equipment subject to vibration or requiring dependable electrical performance
