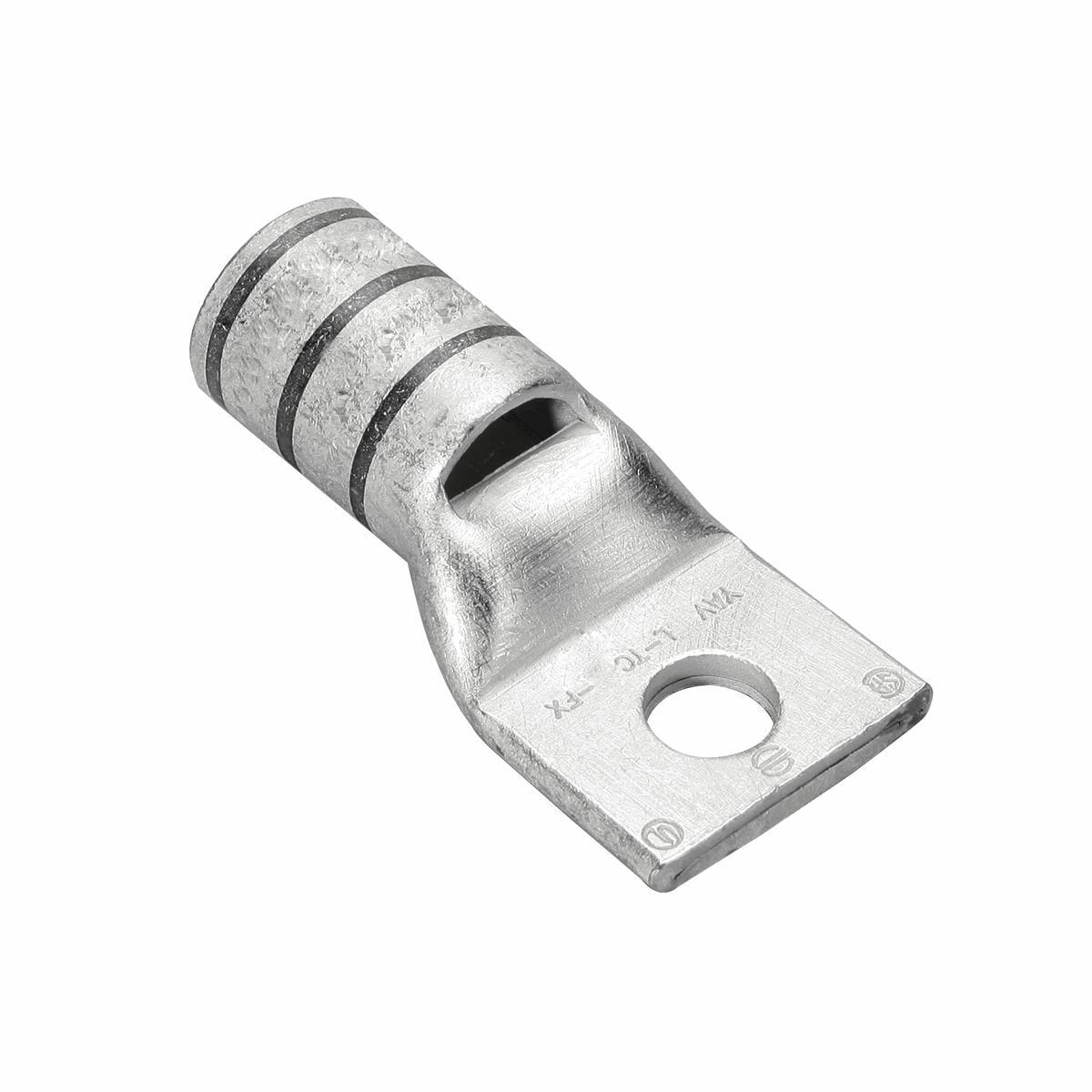

Burndy YAV28LTC38FX Copper Compression Lug 1 Hole w Inspection Window 4/0 Flex 3/8 Stud Short Barrel

Product Description

The Burndy YAV28LTC38FX is a copper compression lug designed for secure wire termination. This product features a single hole with an inspection window that allows for easy verification of wire placement. Suitable for conductors up to four-aught (4/0) flexible copper, it is built for reliable performance in electrical applications.

• UL Listed for 90 degrees Celsius, 600 volts - 35 kilovolts.
• Materials include electro-tin plated copper for enhanced conductivity.
• Includes a straight barrel design for effective crimping.

Product Highlights

The copper compression lug is ideal for various electrical applications, ensuring a solid connection for wire management.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Made in USA: Yes

Technical Specifications

• Catalog Number: YAV28LTC38FX
• Material: Copper
• Voltage Rating: 35
• Application: Wire Termination
• Temperature Rating: 90 degrees Celsius
• Wire Strip Length: 1-1/16 inches
• Stud Size: 3/8 inches
• Cross Reference Products: 58163
