Burndy YAV27LTC38FX 3/0 Flex G,H,I,K,M,DLO, 3/0 AWG CU, One Hole, 3/8 Stud Size

Brand: BURNDY
SKU: YAV27LTC38FX
Availability: In Stock

Ships same day if ordered by 12 pm
$33.81
$33.81
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

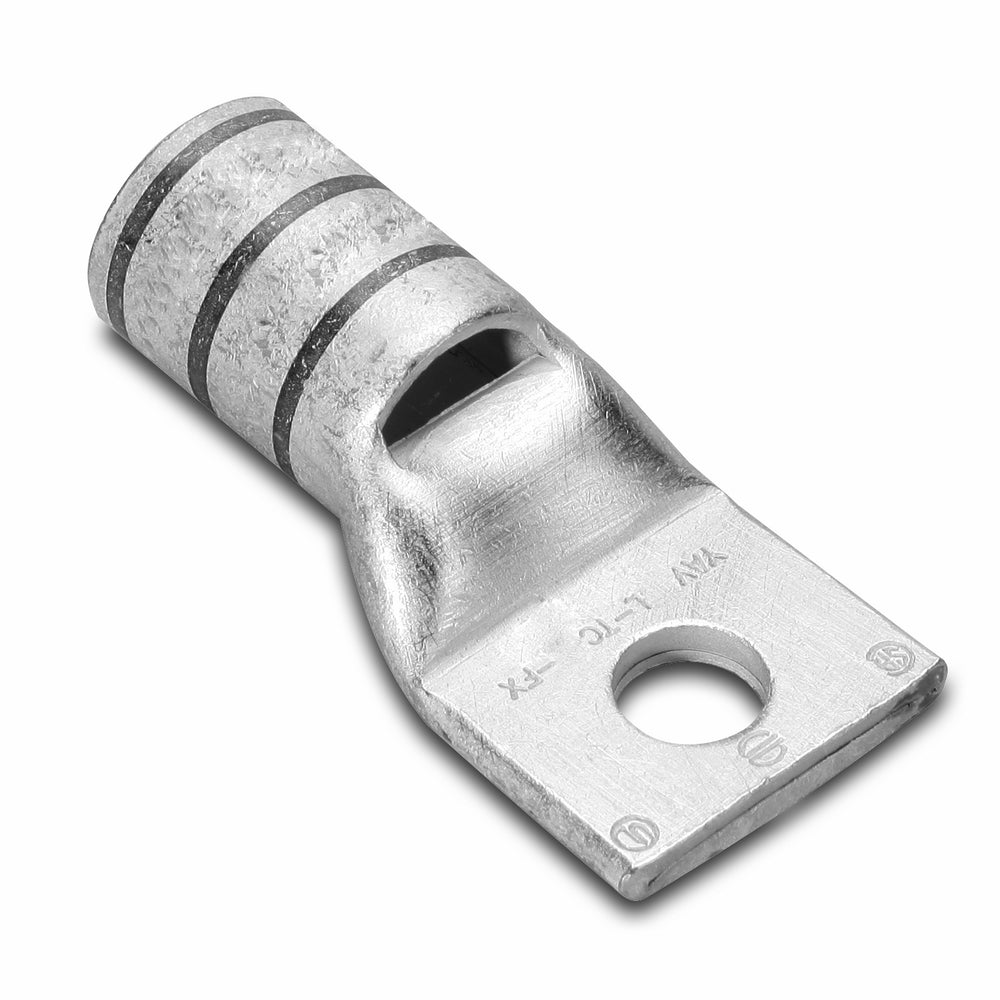

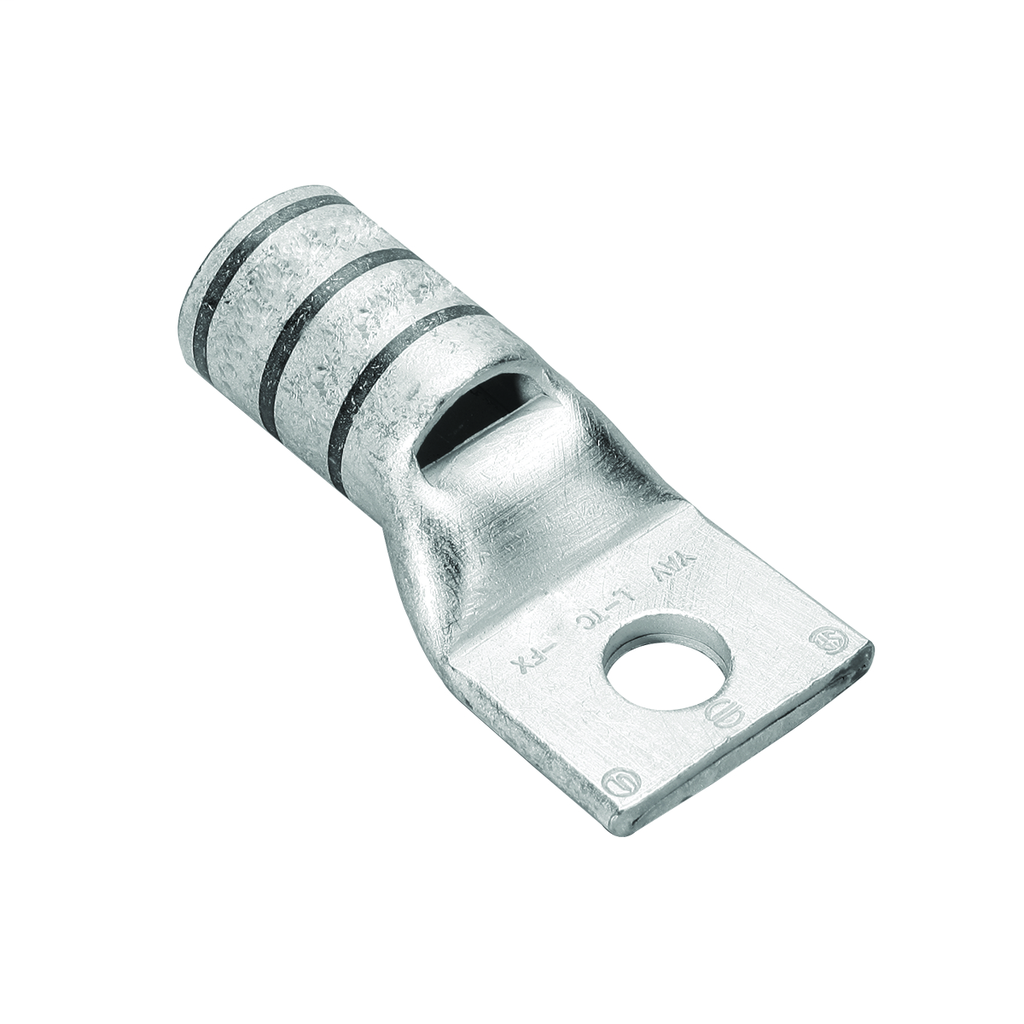

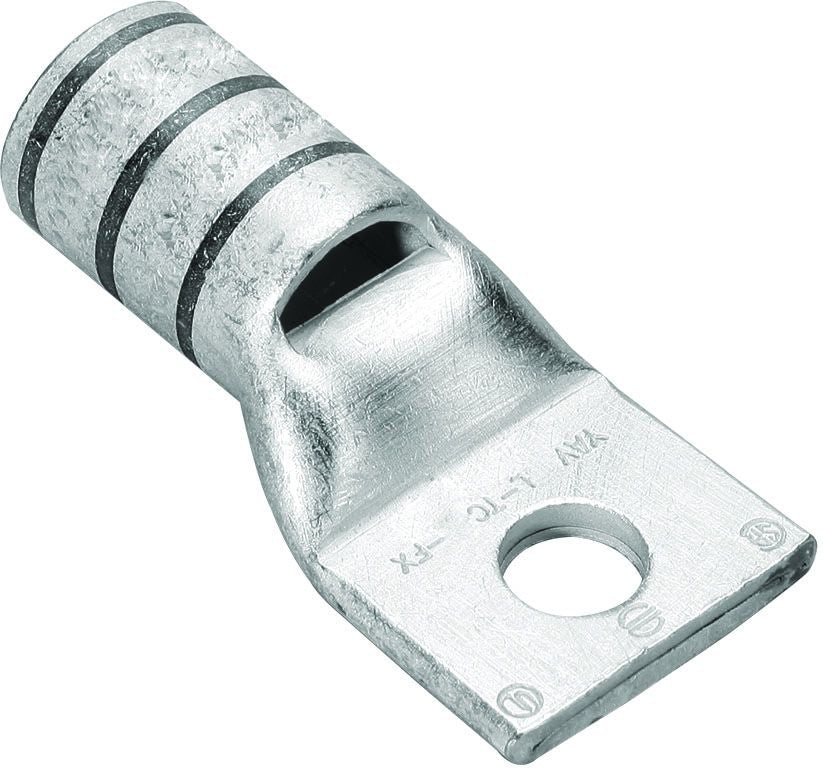

The BURNDY YAV27LTC38FX is a copper compression lug with one hole and an inspection window, designed for 3/0 flex cables and a 3/8" stud. This standard barrel, tin-plated lug is suitable for flex conductors. It is UL Listed 90 DEG C, 600 V - 35 KV and has a die index of 14.

  • UL Listed 90 DEG C, 600 V - 35 KV
  • Finish: Electro-Tin Plated
  • For Flex Conductors

Product Highlights

Copper compression lug with one hole, inspection window, and tin plating for reliable electrical connections in flexible conductor applications.

Product Information

Standard Information

  • Brand: BURNDY
  • Manufacturer Part Number: YAV27LTC38FX
  • Country of Origin: USA
Technical Specifications
Catalog Number
YAV27LTC38FX
Type
Standard Barrel, Tin Plated
Brand
Burndy
Width
1.03 in
Finish
Tin Plated
Height
0.7 Inch
Length
2.34 Inch
Plated?
Yes
Voltage
35000 V
Material
Copper
Stud Size
0.375 in
Sub Brand
HYLUG
Cable Size
3/0 AWG, 3/0 AWG Weld, 450/24, 95 SQ-MM For Class 5 Conductor
Max Voltage
35000 V
Product UPC
78181002251
12-Digit UPC
781810022511
Applications
For Flex Conductors
Color Coding
Orange
Plating Type
Tin
Conductor Size
3/0 AWG
Overall Length
2.34 in
Connection Type
Terminal
Number of Holes
1 Hole
Country of Origin
USA
Conductor Material
Copper
Buy American Compliant
Y
CSA
Yes
GTiN
00781810022511
MPN
YAV27LTC38FX
Application
Copper Compression Lug
Barrel Type
Standard Barrel
Features
Inspection Window Internal Chamfer, Tin Plated, UL/CSA, 90.C, Up to 35kV, Orange Color Code, 14 Die Index
Wire Size Range
4/0 AWG
Insulated
Non-Insulated
Tongue Width
1.14 "
Maximum Temperature
221 °F
Approvals
CSA, UL
