Burndy YAV27LTC12FX 3/0 Flex G,h,i,k,m,dlo, 3/0 Awg Cu, One Hole, 1/2 Stud Size

Product Description

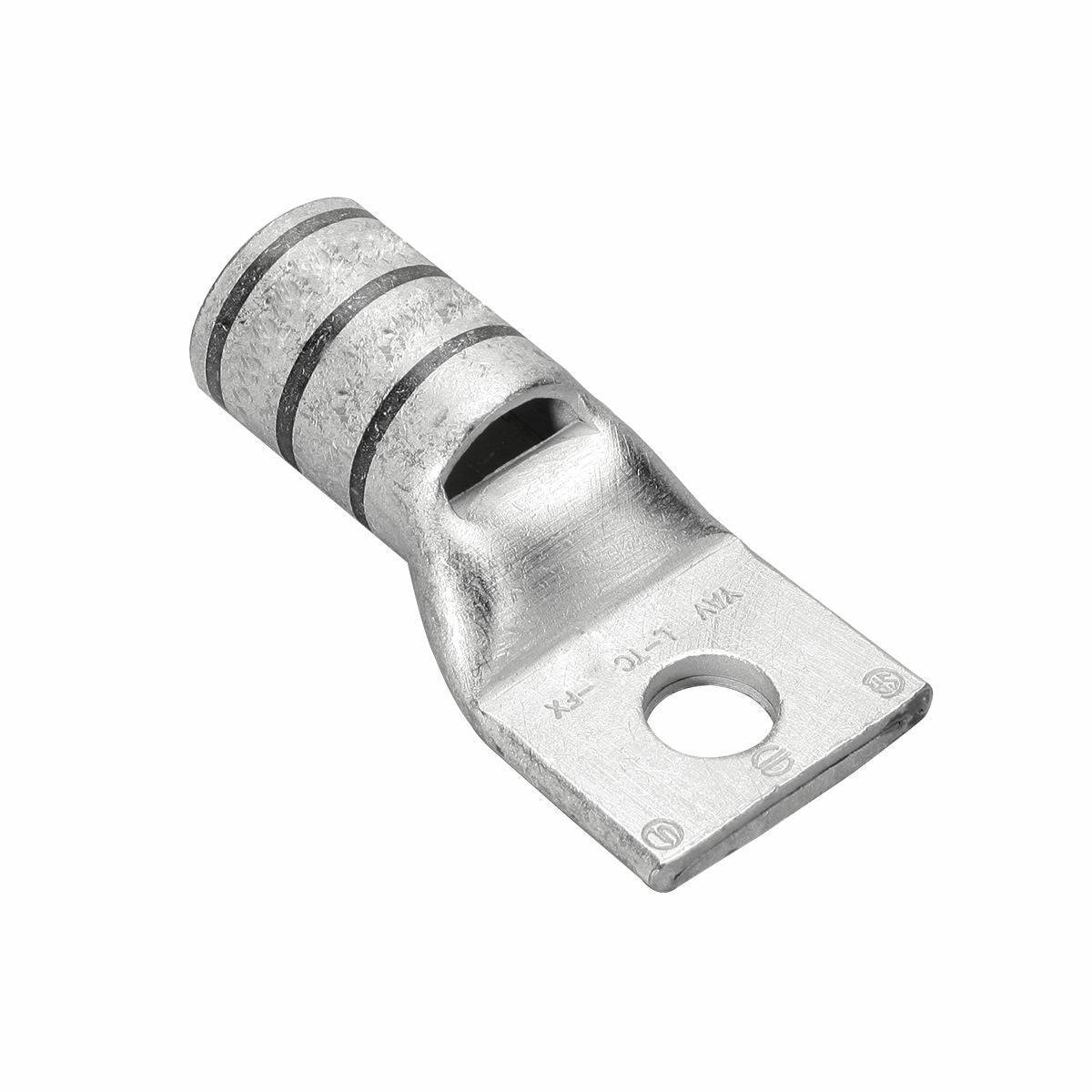

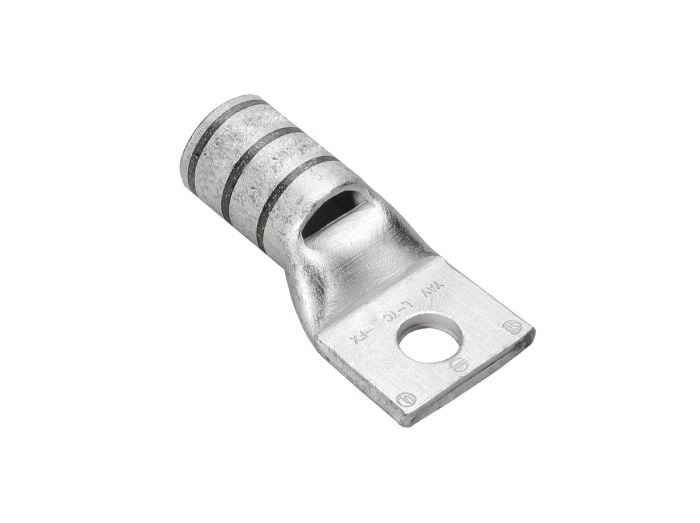

The BURNDY YAV27LTC12FX is a copper compression lug with one hole and an inspection window. Designed for 3/0 Flex cables and a 1/2" stud size, it features a standard barrel and is tin plated. This lug is suitable for flexible conductors and offers reliable wire termination in various applications. It is UL listed and CSA certified for up to 35kV.

• UL Listed 90 DEG C, 600 V - 35 KV
• 45 DEG And 90 DEG Angles Are Available
• Tongue Angle: Straight

Product Highlights

Copper compression lug with inspection window, designed for 3/0 Flex cables, tin plated, and UL/CSA certified.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YAV27LTC12FX
• Country of Origin: USA

Technical Specifications

• Type: Standard Barrel, Tin Plated
• Brand: Burndy
• Width: 1.03 in
• Finish: Tin Plated
• Height: 0.7 Inch
• Length: 2.59 Inch
• Plated?: Yes
• Voltage: 35,000 Volt
• Material: Copper
• Hole Size: 13 mm
• Stud Size: 0.5 in
• Sub Brand: HYLUG
• Cable Size: 3/0 AWG, 3/0 AWG Weld, 450/24, 95 SQ-MM For Class 5 Conductor
• Max Voltage: 35000 V
• Applications: For Flex Conductors
• Color Coding: Orange
• Plating Type: Tin
• Conductor Size: 3/0 AWG
• Overall Length: 2.59 in
• Connection Type: Terminal
• Number of Holes: 1 Hole
• Country of Origin: USA
• Conductor Material: Copper
• Buy American Compliant: Y
• CSA: Yes
• Application: Wire Termination
• Standard: UL 486A-486B
• Voltage Rating: 35 kV
• Die Index: 14
• Dimension - Hole Size mm: 13.5 mm
• Dimension - Hole Size inch: 0.53
• Dimension - Pad Width inch: 1.03 in
• Dimension - Strip Length inch: 1 in
• Dimension - Outside Diameter i: 0.70 in
• Trade Name: HYLUG
• Product Name: YAV27LTC12FX; Compression Terminal; 3/0 Flex G;H;I;K;M; DLO; 3/0 AWG; Cu; 1-Hole
• Product Type: TERMINAL
• EU RoHS Indicator: Yes
• Feature - Barrel Type: Standard
• Minimum Pack Quantity: 1
• IGCC: 4532
• Plated: Y
• Manufacturer: BURNDY
• Product Series: YAV
• Family Series: Burndy Terminals, YAV Series
• Description: CU-HYDENT 3/0 FLEX 1/2 S
• Terminal Type: Ring
• Wire Size Range: 4/0 AWG
• Insulated: Non-Insulated
• Maximum Temperature: 221 °F
• Approvals: CSA, UL
