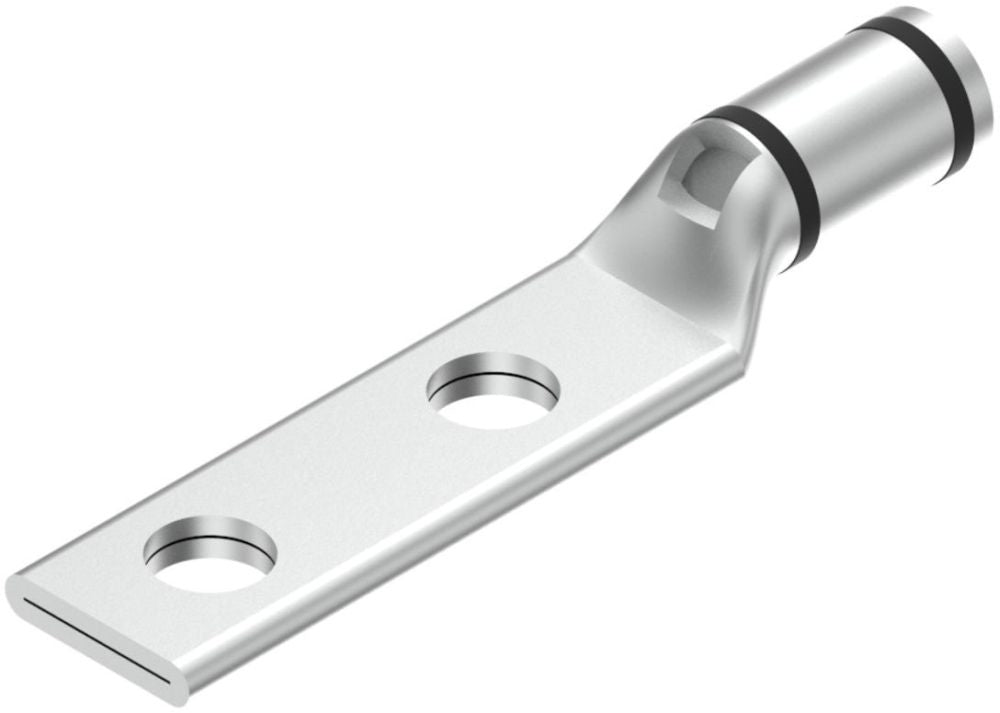

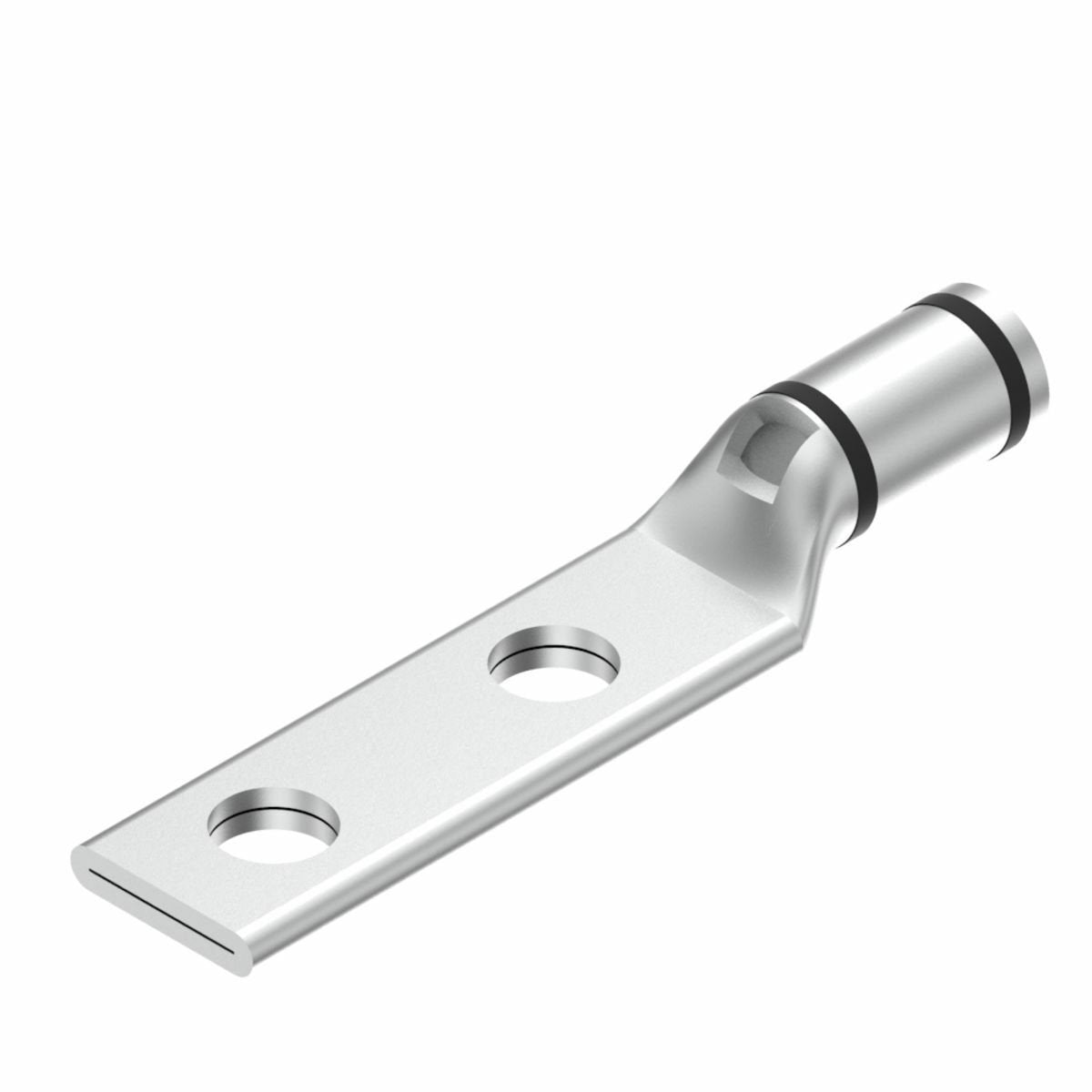

Burndy YAV26L2TC38FX 2/0 Flex G,H,I,K,M,DLO Cable Lug 3/8 Stud Size

Product Description

The Burndy YAV26L2TC38FX is a two-hole compression cable lug designed for wire termination. It is suitable for flexible copper cables and rated for voltages up to thirty-five kilovolts. This product is made in the United States and is UL and CSA approved.

• Voltage rating up to thirty-five kilovolts
• Made from electro-tin plated copper
• Includes an inspection window for quality assurance

Product Highlights

This lug features standard barrel design with a straight tongue angle. The wire strip length is thirteen-sixteenths inches. Its construction includes an internal chamfer for ease of use, making it ideal for various electrical applications.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Brand: Burndy
• Catalog Number: YAV26L2TC38FX

Technical Specifications

• Material: Copper
• Application: Wire Termination
• Voltage Rating: 35 kV
• Temperature Rating: 90 °C
• Pad Size: 0.93 inches wide by 0.13 inches thick
• Pad Hole Spacing: 1 inch
• Stud Size: 3/8 inches
• Die Index: 13
