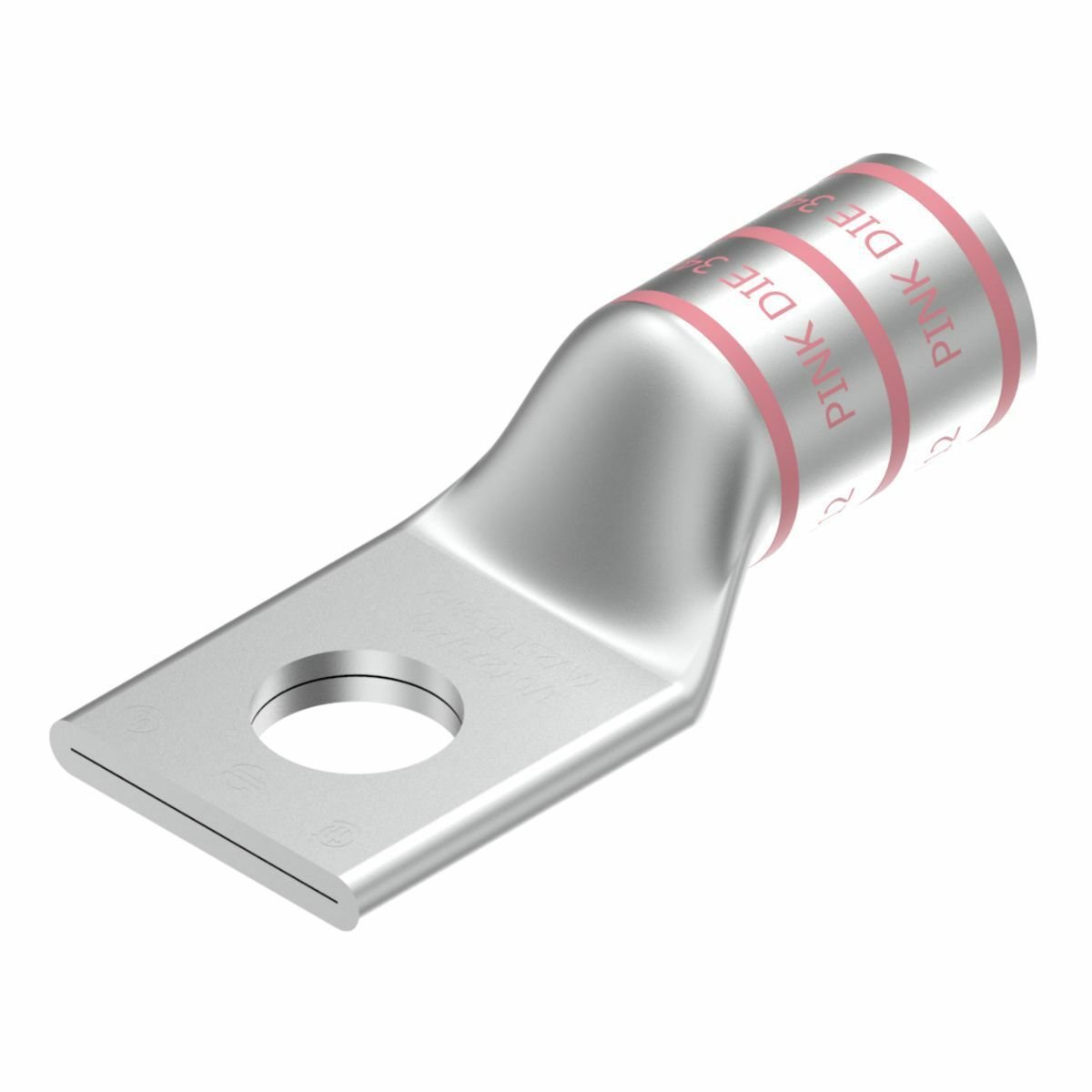

Burndy YAV25LTC38FX Copper Compression Lug 1 Hole w/ Inspection Window 1/0 Flex 3/8 Stud

Product Description

The Burndy YAV25LTC38FX is a copper compression lug designed for effective wire termination. It features a one-hole design with an inspection window, suitable for 1/0 AWG flexible copper conductors. This product is commonly used in electrical installations where reliability and performance are critical.

• Material: Copper with tin plating
• Voltage Rating: 600 V to 35 kV
• Temperature Rating: 90 Degrees Celsius

Product Highlights

This lug provides strong electrical connections while allowing easy inspection to ensure proper crimping. It is made in the USA and complies with UL standards.

Product Information

Standard Information

• Brand: Burndy, a Hubbell affiliate
• Country of Origin: United States

Technical Specifications

• Catalog Number: YAV25LTC38FX
• Conductor Size: 1/0 AWG
• Stud Size: 3/8 Inch
• Overall Length: 1.94 Inches
• Pad Size: 0.83 Inch Width x 0.12 Inch Thickness
• Wire Strip Length: 11/16 Inch
• Die Index: 12
• Application: Wire Termination
• Special Features: UL Listed, inspection window, electro-tin plating
