Burndy YAV25L3 Copper Compression Lug Heavy Duty 1 Hole 1/2 Stud

Product Description

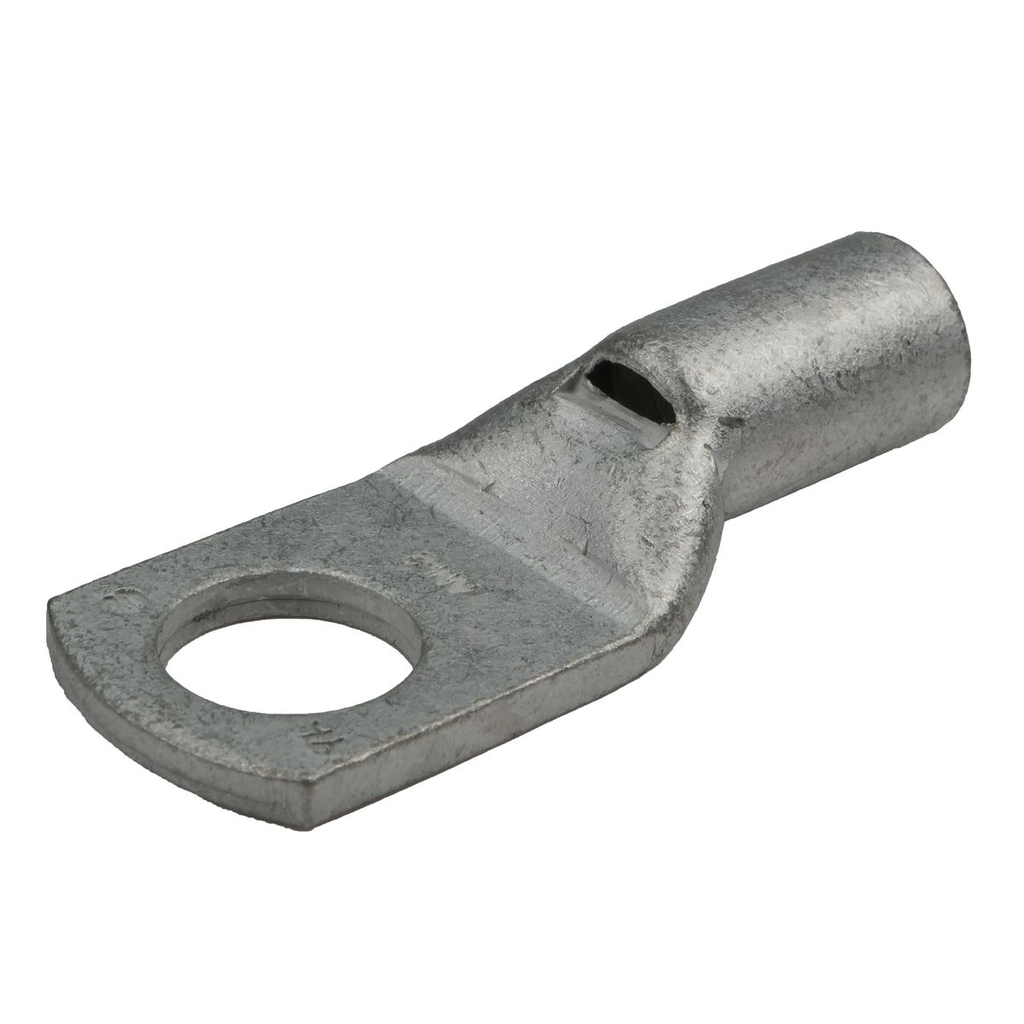

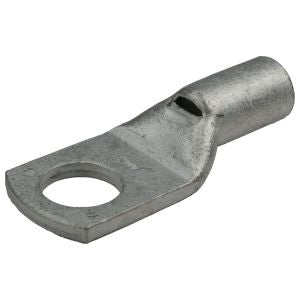

The Burndy YAV25L3 is a copper compression lug designed for heavy-duty applications. This lug features a ring tongue design with one inspection hole, making it suitable for various uses including aircraft cables and flexible conductors. The lug supports AN-1/0 flex wires and fits a half-inch stud. It is short barrel type and has an electro-tin plated finish for increased conductivity and resistance to corrosion.

• Heavy-duty, uninsulated design for optimal reliability.
• Meets SAE-AS7928 and AS20659 standards.
• Ideal for aircraft, industrial, hospital, and marine applications.

Product Highlights

This product provides dependable electrical performance for demanding applications. Its seamless tubing offers a strong connection, enhancing reliability in environments subject to vibration.

Product Information

Standard Information

• Brand: Burndy
• Country of Origin: USA

Technical Specifications

• MPN: YAV25L3
• Material: Copper
• Width: 0.88 in
• Height: 0.63 in
• Length: 2.09 in
• Hole Size: 13 mm
• Stud Size: 1/2 in
• Cable Size: 1/0 AWG Flex
• Connection Type: Ring Terminal
• Number of Holes: 1 Hole
• Plating Type: Electro-Tin Plated
• Applications: Suitable for aircraft cable, extra flexible conductors, and commercial conductors.
• Plated?: Yes
