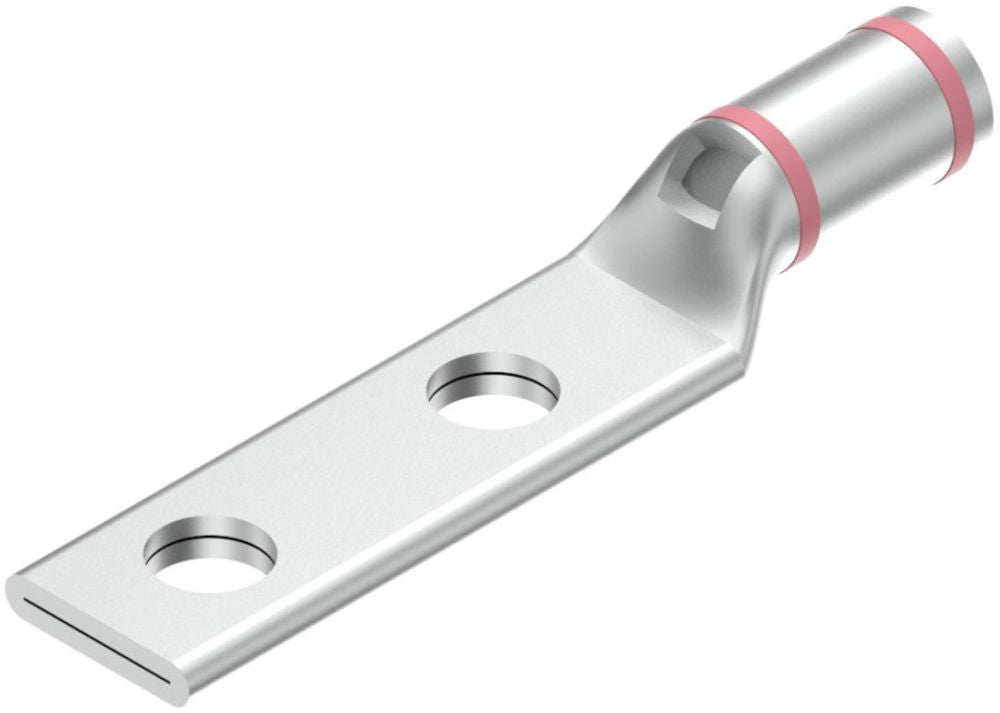

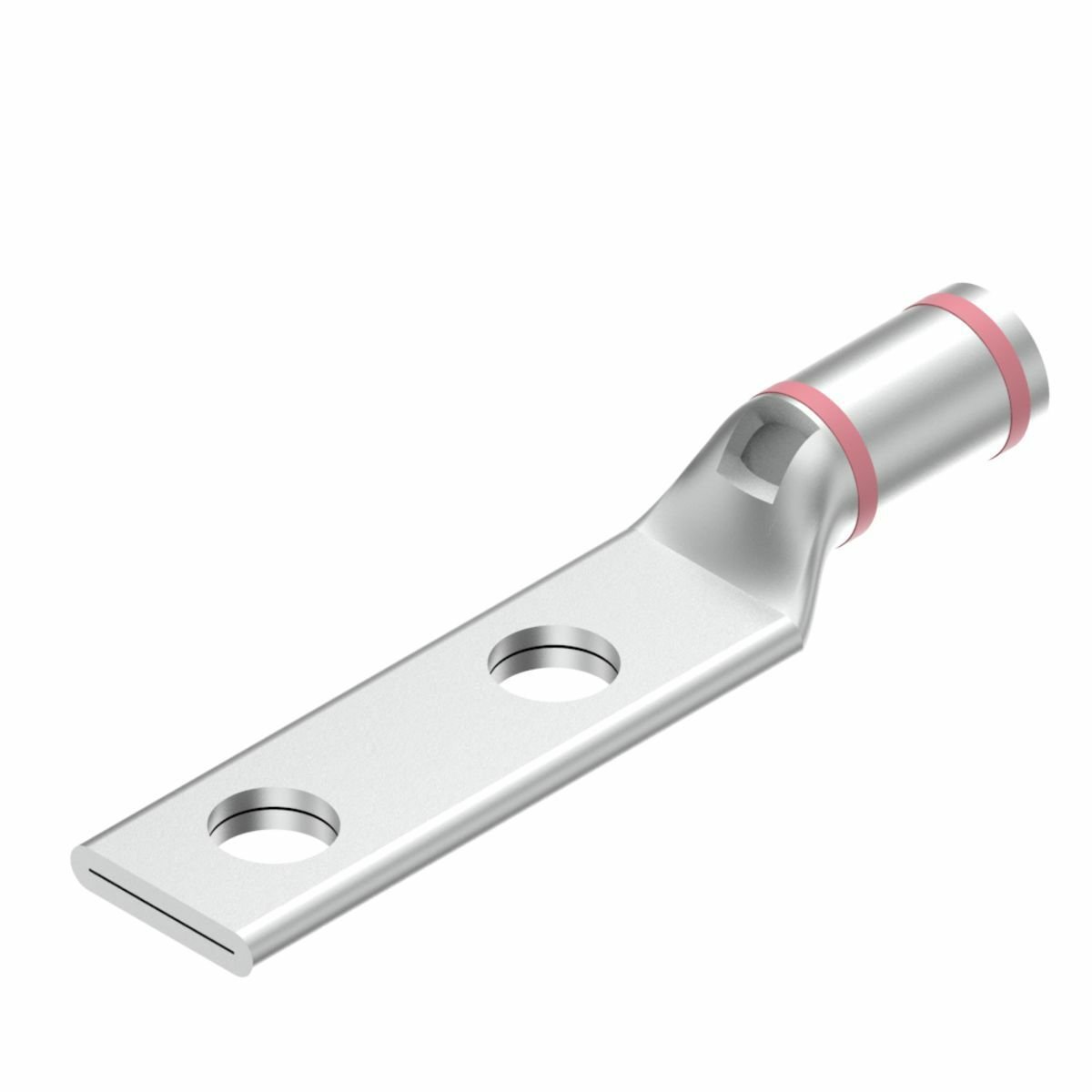

BURNDY YAV25L2TC38FX Copper Compression Lug, 2 Hole w/ Inspection Window, 1/0 Flex, 3/8 Stud, 1 Stud Hole Spacing, Short Barrel, Tin Plated

Product Description

The BURNDY YAV25L2TC38FX is a copper compression lug designed for reliable wire terminations. With a short barrel design, it ensures proper connections in various electrical setups. This product stands compliant with UL standards and is ideal for use in commercial stranded copper applications.

• Constructed from copper for durability.
• Features an inspection window for easy visual inspection.
• Includes a tin plating finish to resist corrosion.

Product Highlights

The design promotes efficient wire termination while ensuring high conductivity and safety. The product is made in the USA and is suitable for both construction and maintenance tasks.

Product Information

Standard Information

• Catalog Number: YAV25L2TC38FX
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper
• Voltage Rating: 35 kV
• Application: Wire Termination
• Country of Origin: United States
• Wire Strip Length: 11/16 inches
• Pad Size: 0.83 inches wide, 0.12 inches thick
• Stud Size: 3/8 inches
• Temperature Rating: 90 degrees C
