Product Description

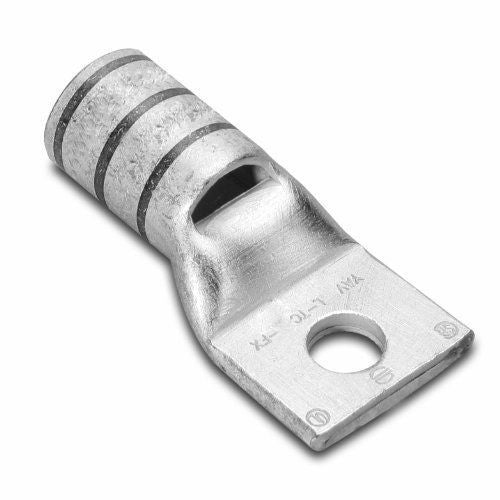

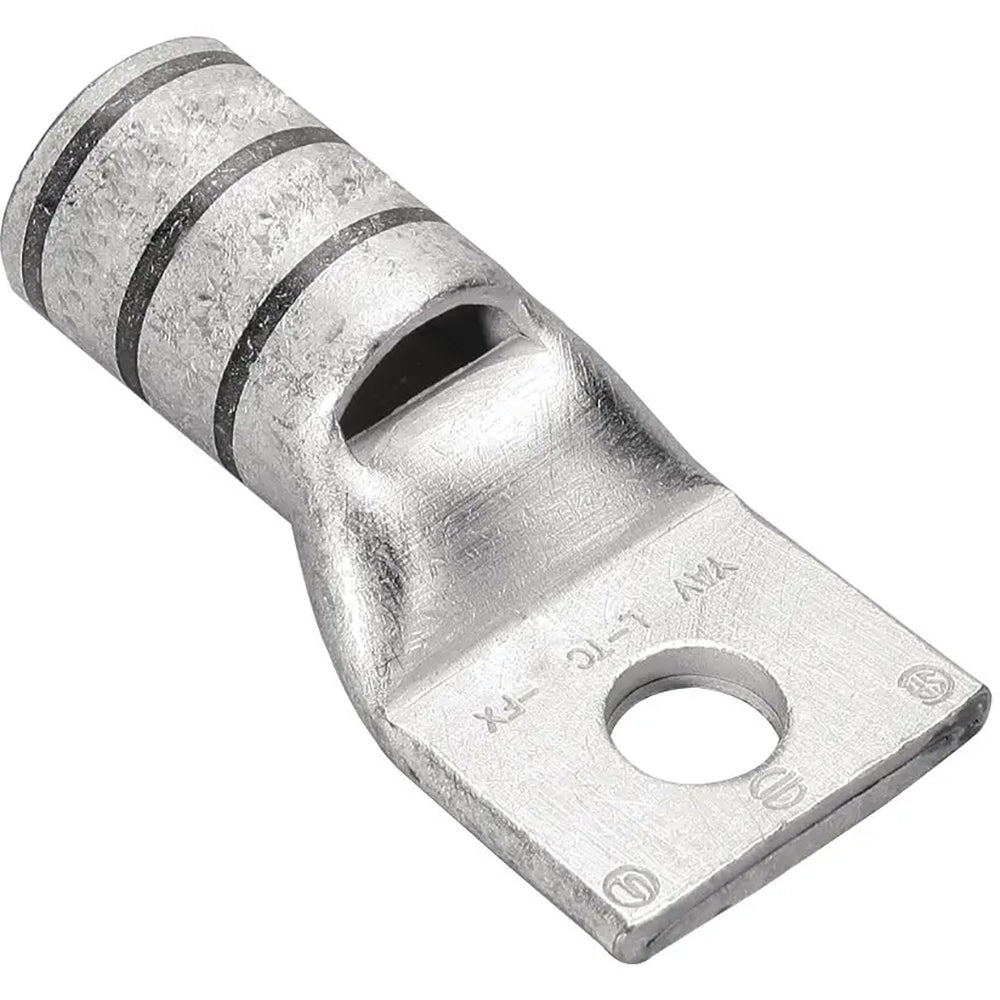

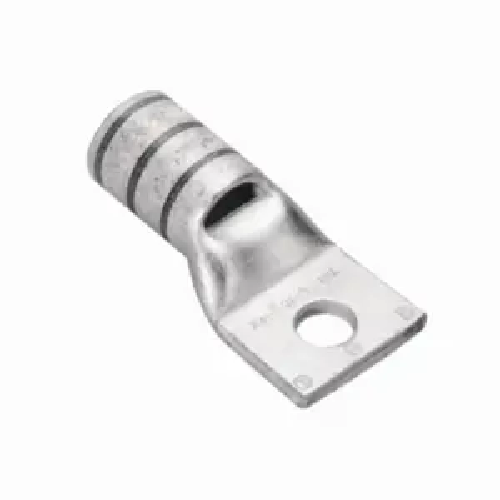

Burndy YAV25-L2-BOX is an uninsulated copper compression ring tongue terminal (HYLUG) designed for 1/0 AWG copper conductors and a 5/16 in stud. It uses a short seamless tubular crimp barrel with an internal bevel and inspection window, and a double-thick tongue for mechanical strength. The part is electro-tin plated DLP copper and meets UL467 and CSA approvals for industrial and utility applications.
- Seamless tubular crimp barrel with internal bevel for easy cable entry
- Double-thick ring tongue with inspection window for visual conductor confirmation
- Electro-tin plated DLP copper construction for conductivity and corrosion resistance; die index 43
Product Highlights
Uninsulated HYLUG for 1/0 AWG on 5/16 in stud; short seamless crimp barrel; UL467 and CSA approved.
Product Information
Standard Information
-
Brand: BURNDY
-
Manufacturer Part Number: YAV25-L2-BOX
-
Country of Origin: United States
Technical Specifications
-
Brand: Burndy
-
Manufacturer Part Number: YAV25-L2-BOX
-
Catalog Description: Copper compression lug, ring tongue, 1 hole with inspection window, AN-1/0 flex, 5/16" stud, short barrel, electro-tin plated
-
Connector Type: Ring Terminal
-
Type: Ring Tongue / HYLUG
-
Conductor Size: 1/0 AWG
-
Conductor Type: Copper solid and stranded (CU C Solid-Size; CU C Str-Size)
-
Stud Size: 5/16 in (0.3125 in)
-
Number of Holes: 1
-
Material: Copper (electro-tin plated DLP copper)
-
Plated: Yes
-
Plating Type: Tin (electro-tin plated)
-
Barrel Style: Short, chamfered, skived
-
Barrel Type: Seamless tubular (standard)
-
Die Index: 43
-
Tongue Type: Ring
-
Tongue Angle: Straight
-
Inspection Window: Yes
-
Military Specification: AS20659
-
Industry Standards: UL467
-
UL Listed: Yes
-
CSA Approved: Yes
-
RoHS Compliance Status: CM
-
Application: Industrials, Hospitals, Utilities, Marine, Computer
-
Overall Length: 2.03 in
-
Outside Diameter: 0.57 in
-
Pad Width: 0.83 in
-
B Length: 0.66 in
-
D: 0.85 in
-
Bolt Hole Size: 0.33 in
-
N: 0.42 in
-
Z: 0.43 in
-
Strip Length: 11/16 in
