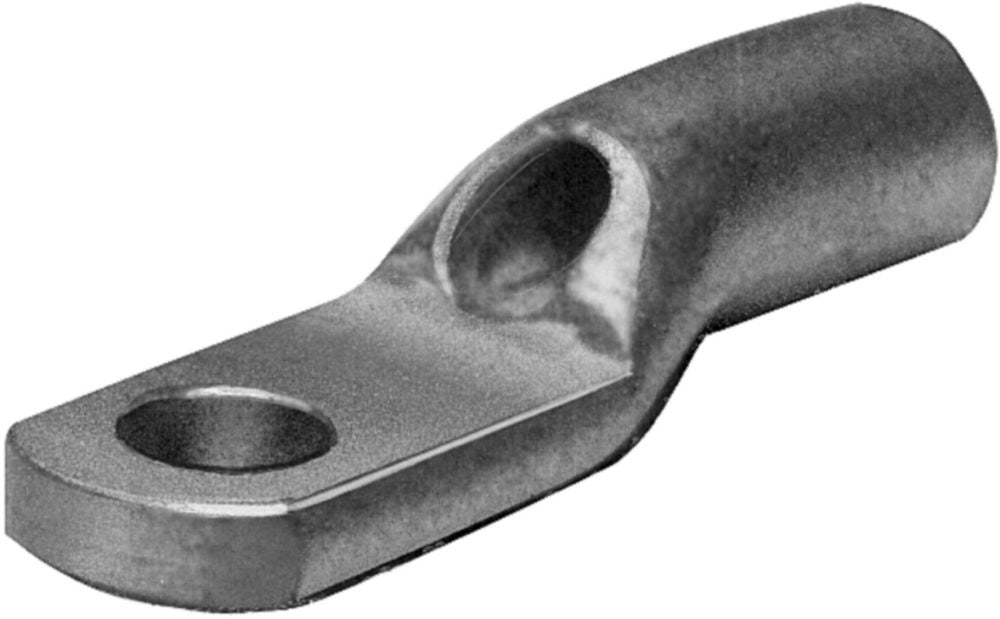

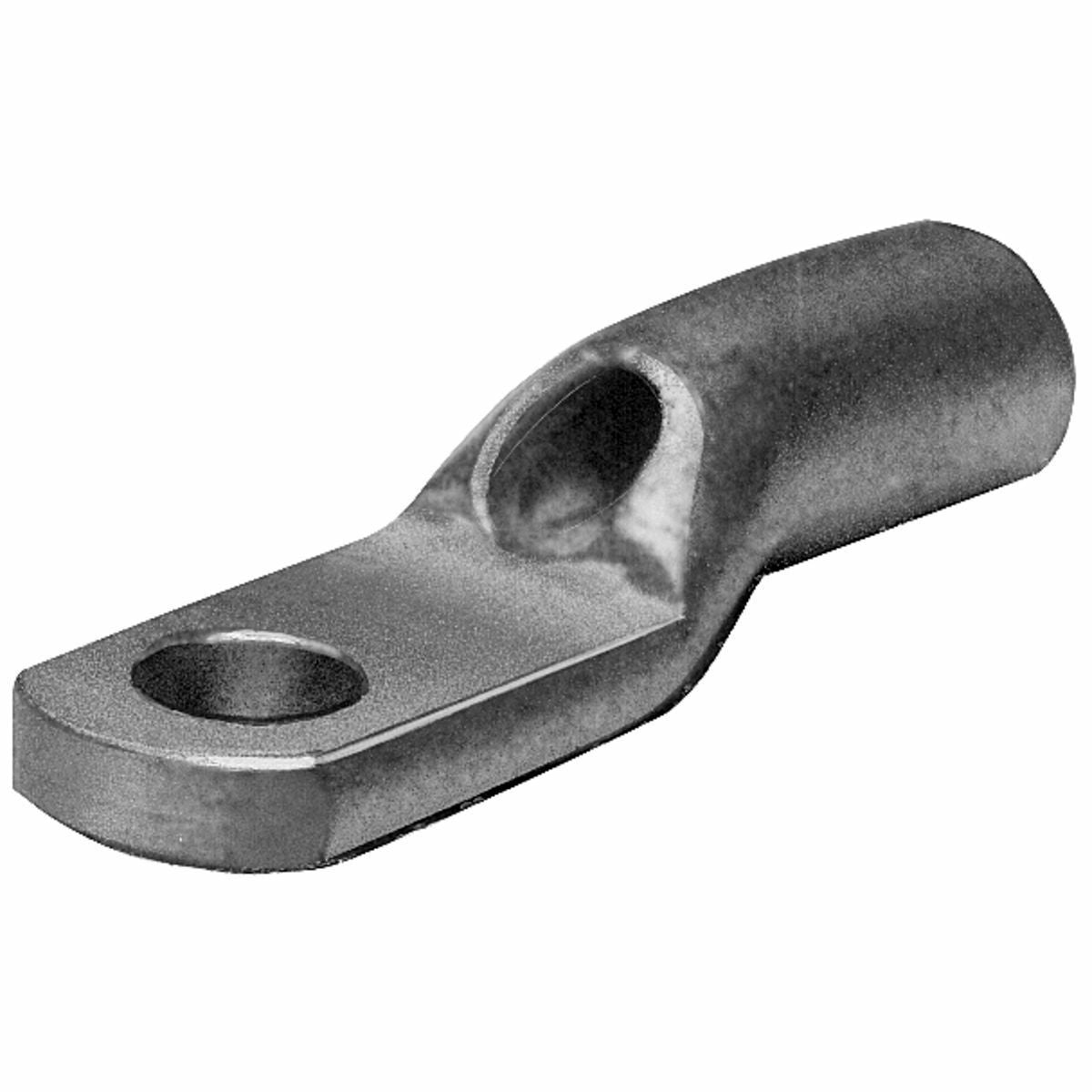

BURNDY YAV14BOX Copper Compression Lug, Ring Tongue w/ Inspection Hole, 1 Hole, 20-14 AWG/20-12 AWG, #8-#10 Stud, Short Barrel, Tin Plated

Product Description

The BURNDY YAV14BOX is a copper compression lug designed for reliable electrical connections. This product is suitable for various applications including commercial and military stranded copper conductors and flexible conductors. The ring tongue features an inspection hole for easy visual checks of proper conductor insertion.

• Seamless design for high reliability
• Electro-tin plated for corrosion resistance
• Suitable for a range of wire sizes from 20 AWG to 12 AWG

Product Highlights

This compression lug offers a strong connection for conductors, minimizing the risk of vibration-induced failures.

Product Information

Standard Information

• Brand: BURNDY
• Country of Origin: United States

Technical Specifications

• Catalog Number: YAV14BOX
• Material: Copper
• Application: For use on copper commercial cable, Type AN aircraft cable, and extra flexible conductors
• Wire Strip Length: 9/32 inches
• Stud Size: #8 to #10
• Standard: UL467
• Finish: Electro-Tin Plated
• Conductor Type: Commercial/Military Stranded Copper
