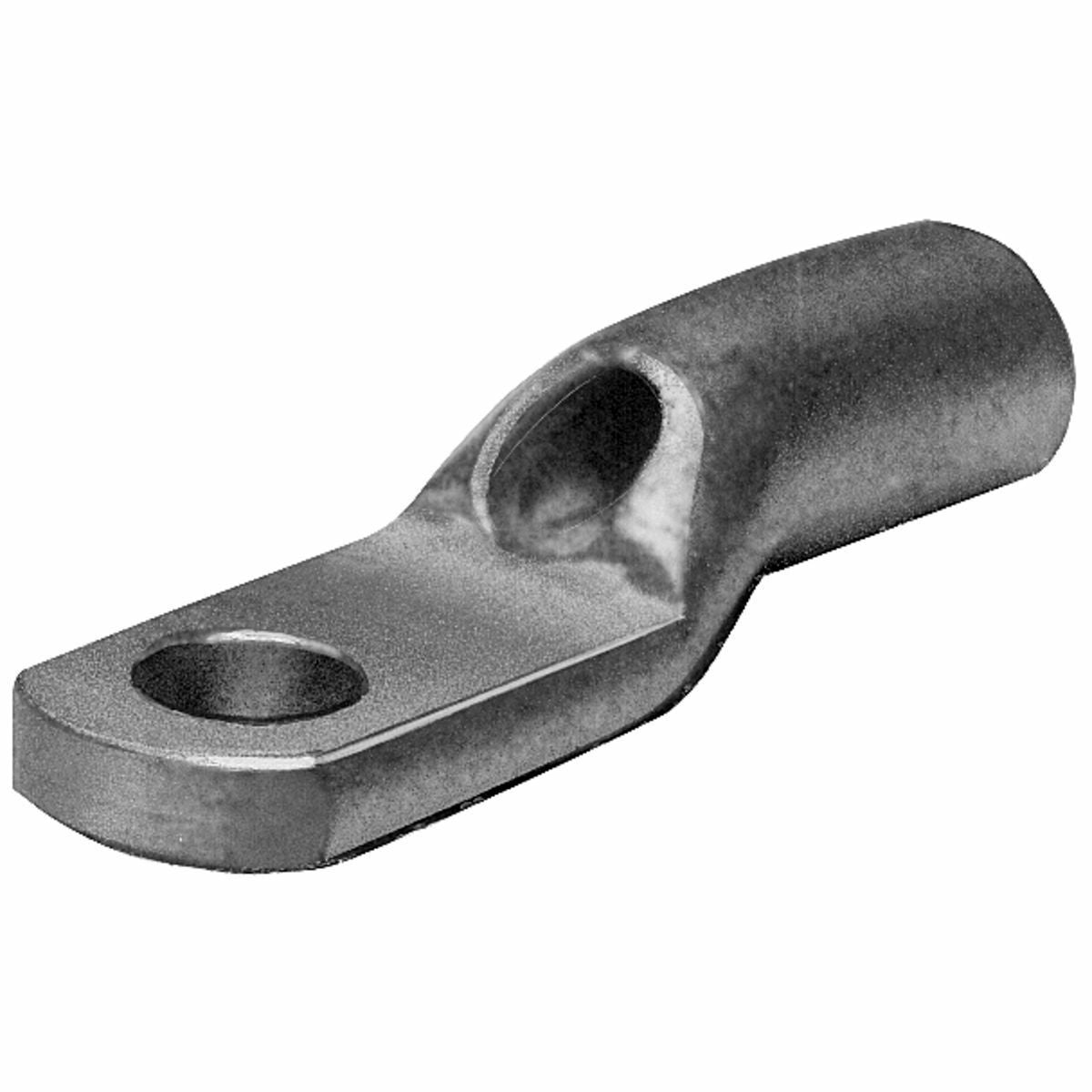

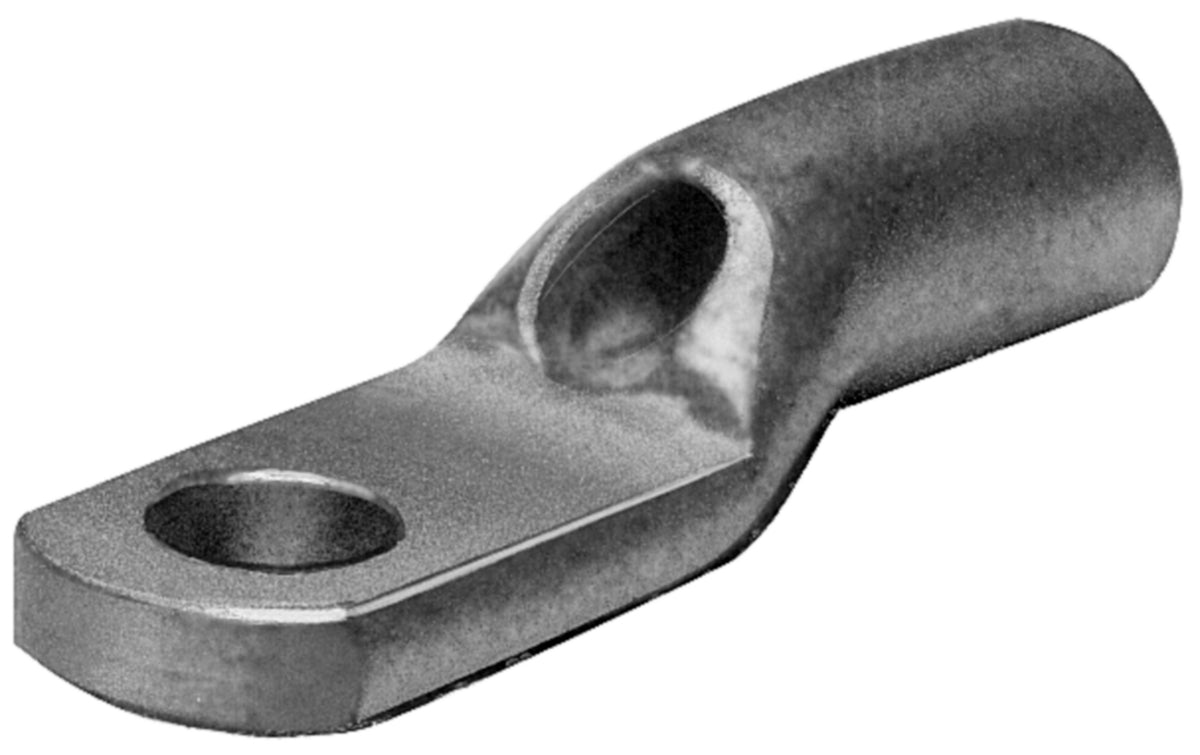

Burndy YAV10T3 Copper Compression Lug, 1 Hole w/ Inspection Window, 14-10 AWG/12-10 AWG, 1/4 inches Stud, Short Barrel, Tin Plated

Product Description

The BURNDY YAV10T3 is a copper compression lug with one hole and an inspection window, designed for 14-10 AWG or 12-10 AWG wires. It features a 1/4" stud, a short barrel, and a tin-plated finish. This heavy-duty ring tongue terminal is made from pure electrolytic copper tubing and accommodates solid conductors. It is suitable for use on copper commercial cable, aircraft cable and extra flexible conductors.

• Seamless uninsulated compression heavy duty ring tongue terminal
• Made from pure electrolytic copper tubing
• For use on copper commercial (Code) cable, Type AN aircraft cable and extra flexible conductors

Product Highlights

Provides maximum conductivity, low resistance, and excellent ductility. Features a seamless tubular crimp barrel and an internally beveled barrel for easy cable entry.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YAV10T3
• Country of Origin: USA

Technical Specifications

• Catalog Number: YAV10T3
• Manufacturer: Burndy, a Hubbell affiliate
• Brand: BURNDY
• Sub Brand: HYLUG
• Country of Origin: United States
• Made in USA: Yes
• Application: For Use On Copper Commercial (Code) Cable; Type AN Aircraft Cable And Extra Flex
• Material: Copper
• Special Features: Features: Seamless uninsulated compression heavy duty ring tongue terminal. HYLUG Type YAV is a seamless, heavy duty uninsulated compression ring tongue terminal made from pure electrolytic copper tubing for use on copper commercial (Code) cable, Type AN aircraft cable and extra flexible conductors. Its seamless design also accommodates solid conductors. Double thick tongue provides a strong connector for demanding applications requiring high reliability. Applications include: industrials, hospitals, electric utilities, aircraft, shipboard and marine, steel mills, computers, mining equipment and other equipment subject to vibration. HYLUG Type YAV provides maximum conductivity, low resistance and excellent ductility. Seamless tubular crimp barrel has no seams to split for a very high quality electrical connection. Extra copper material assures the compression connector operates cooler than the conductors it connects. Internally bevelled barrel provides easy cable entry, especially for flexible conductors. Inspection hole provides visual check for proper conductor insertion. Nickel plating available, add -NK suffix.
• Standard: UL467
• UPC: 781810025277
• GTIN: 00781810025277
• Item Type: Ring Tongue
• ECCN: EAR99
• UNSPSC: 39121405
• Stud Size: 1/4 in.
• Type: Beveled, Heavy Duty
• Minimum Conductor Size: 14 AWG Stranded, 12 AWG Solid/Stranded
• Maximum Conductor Size: 10 AWG Solid/Stranded
• Insulation Type: Non-Insulated
• Approval: UL, CSA
• RoHS Compatible: True
• Barrel Type: Seamless Tubular Crimp Barrel
• Wire Strip Length: 7/16 Inch
• Plated: Y
• Plating Type: Tin - Electro Plated
• Cable Size: 12 - 10 AWG
• Conductor Size: 12 to 10
• Connection Type: Ring Terminal
• Number of Holes: 1 Hole
• Overall Length: 1.09
• Width: 0.48 in
• Buy American Compliant: Y
• IGCC: 4532
• Trade Name: HYLUG
• Family group: CONNECTORS
• Product Name: YAV10T3; Uninsulated Ring Terminal; NO.14-10 AWG Str; NO.12-10 Sol; 1-Hole; 1/4I
• Product Type: TERMINAL
• EU RoHS Indicator: Yes
• Feature - Barrel Type: Standard
• Feature - Barrel Style: Chamfered
• Dimension - B Length inch: 0.392 in
• Dimension - Pad Width inch: 0.47 in
• Dimension - B Length fraction: 3/8 in
• Dimension - Outside Diameter i: 0.21 in
• Physical Attribute - Tongue Ty: Ring
• Standards - Industry Standards: UL486
• Standards - RoHS Compliance St: CM
• Dimension - N inch: 0.23 in
• Conductor - Copper Solid Size: 12 AWG;11 AWG;10 AWG
• Conductor - Copper Solid Size Range: 12 AWG-10 AWG
• Conductor - Copper Str Size: 12 AWG;10 AWG
• Conductor - Copper Str Size Range: 12 AWG-10 AWG
• Conductor Type: CU C Solid-Size CU C Str-Size
• Industry Standard(s): UL467
• Standards - Industry Standards Met: UL486
• UL Listed: Yes
• Barrel Size: 0.21 in OD x 0.39 in L
• Die Code: 2
• Series: YAV
• Specifications: 7/16 in L Wire Strip
• Temperature Rating: 650
• Tongue Size: 0.45 in W x 0.05 in THK
• Tongue Type: Ring Straight
• Voltage Rating: 600 VAC to 35 kV
• Insulation: None
• Length1: 1.0600
