Burndy YAV10T2BOX Copper Compression Lug 14-10 AWG/12-10 AWG (5/16 in Stud, Short Barrel)

Product Description

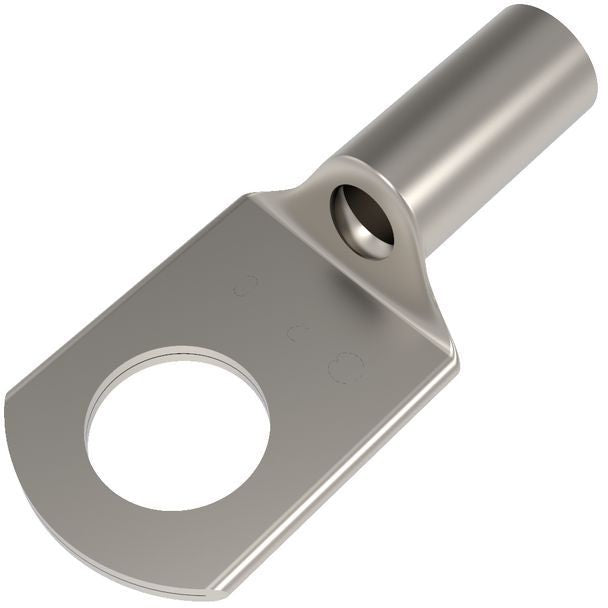

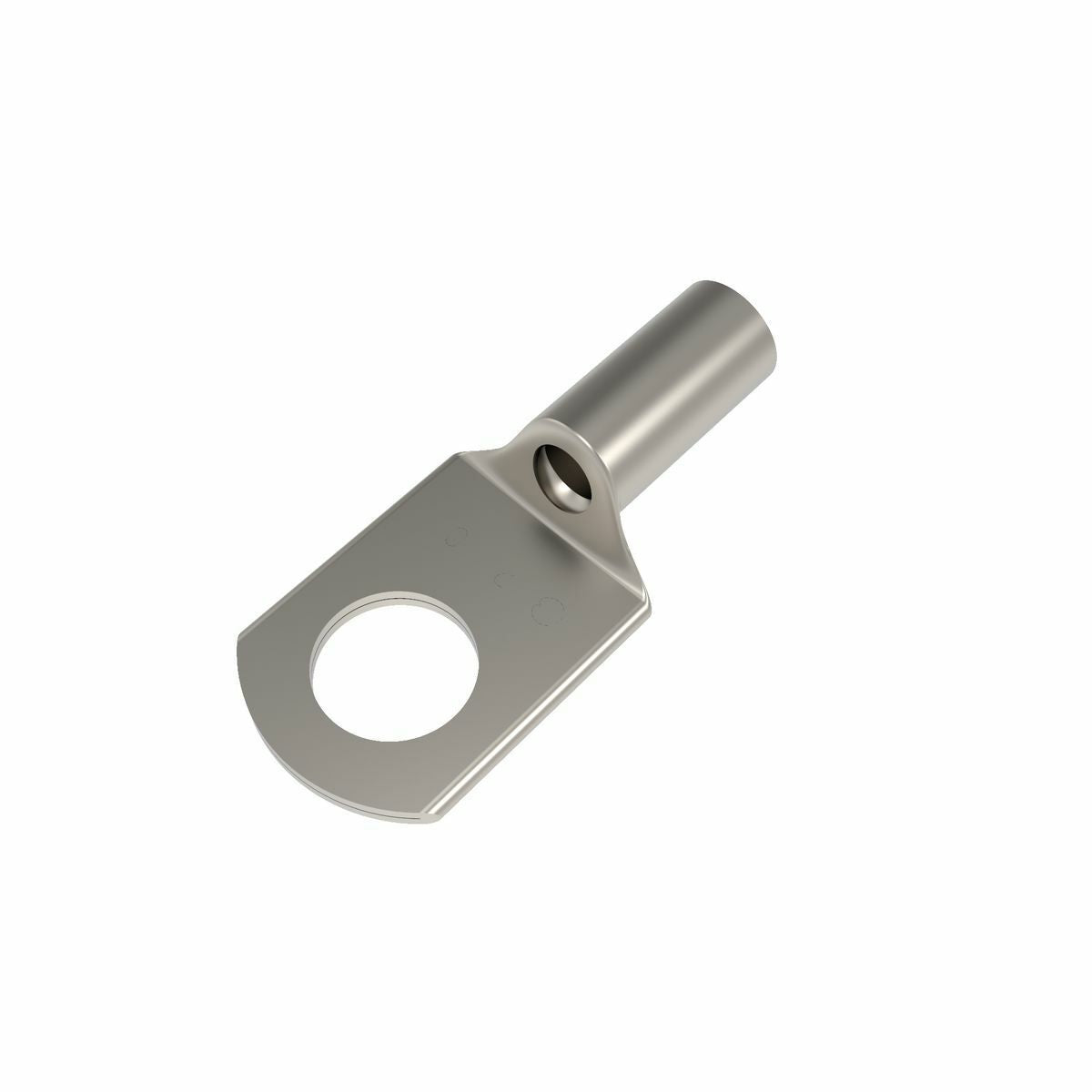

Burndy YAV10T2BOX is a seamless uninsulated copper compression lug (HYLUG) designed for 14-10 AWG and 12-10 AWG conductors. The short-barrel ring terminal is manufactured from pure electrolytic copper tubing with an internally beveled barrel and double-thick tongue to enable crimp termination and low resistance connections. It includes an inspection window for visual conductor insertion confirmation and an electro-tin plating for corrosion resistance. Applications include industrial, aircraft, marine, utility, hospital, computer and mining equipment.

• Seamless electrolytic copper construction with double-thick tongue and seamless tubular crimp barrel
• Accepts 14-10 AWG and 12-10 AWG conductors with 5/16 in stud and internally beveled short barrel
• Inspection window for visual conductor entry; electro-tin plated finish; meets UL467 and military specifications

Product Highlights

Seamless HYLUG ring terminal, 5/16 in stud, inspection window, electro-tin plated, UL467/Mil-Spec compliance

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YAV10T2BOX
• Country of Origin: United States

Technical Specifications

• Brand: Burndy
• Manufacturer: Burndy (Hubbell affiliate)
• Manufacturer Part Number: YAV10T2BOX
• Product Name: Copper compression lug, 1 hole with inspection window, short barrel
• Series: YAV (Hylug)
• Type: Ring tongue (ring terminal), uninsulated, heavy-duty, seamless
• Material: Electrolytic copper
• Plating: Electro-tin (tin plated)
• Stud Size: 5/16 in (0.3125 in)
• Conductor Size: 14-10 AWG / 12-10 AWG
• Wire Size Range: 12-10 AWG; 14-10 AWG (compatible)
• Number of Holes: 1
• Barrel Style: Short barrel, internally beveled / chamfered, seamless tubular crimp barrel
• Inspection Window: Yes
• Double-thick Tongue: Yes
• Length Overall: 1.13 in (29 mm)
• Width (Pad Width): 0.53 in
• Outside Diameter: 0.21 in
• Strip Length: 7/16 in
• Tongue Thickness: 0.04 in
• Applications: Industrial, hospital, utility, aircraft, shipboard/marine, computer, steel mill, mining equipment
• Standards: UL467; UL486; Military Specified (Mil-Spec); AS20659
• Certifications: UL Listed; CSA Approved; RoHS compliant
• Country of Origin: United States
• Temperature Rating: 650 °F
• Voltage Rating: 600 VAC (typical for this lug size)
