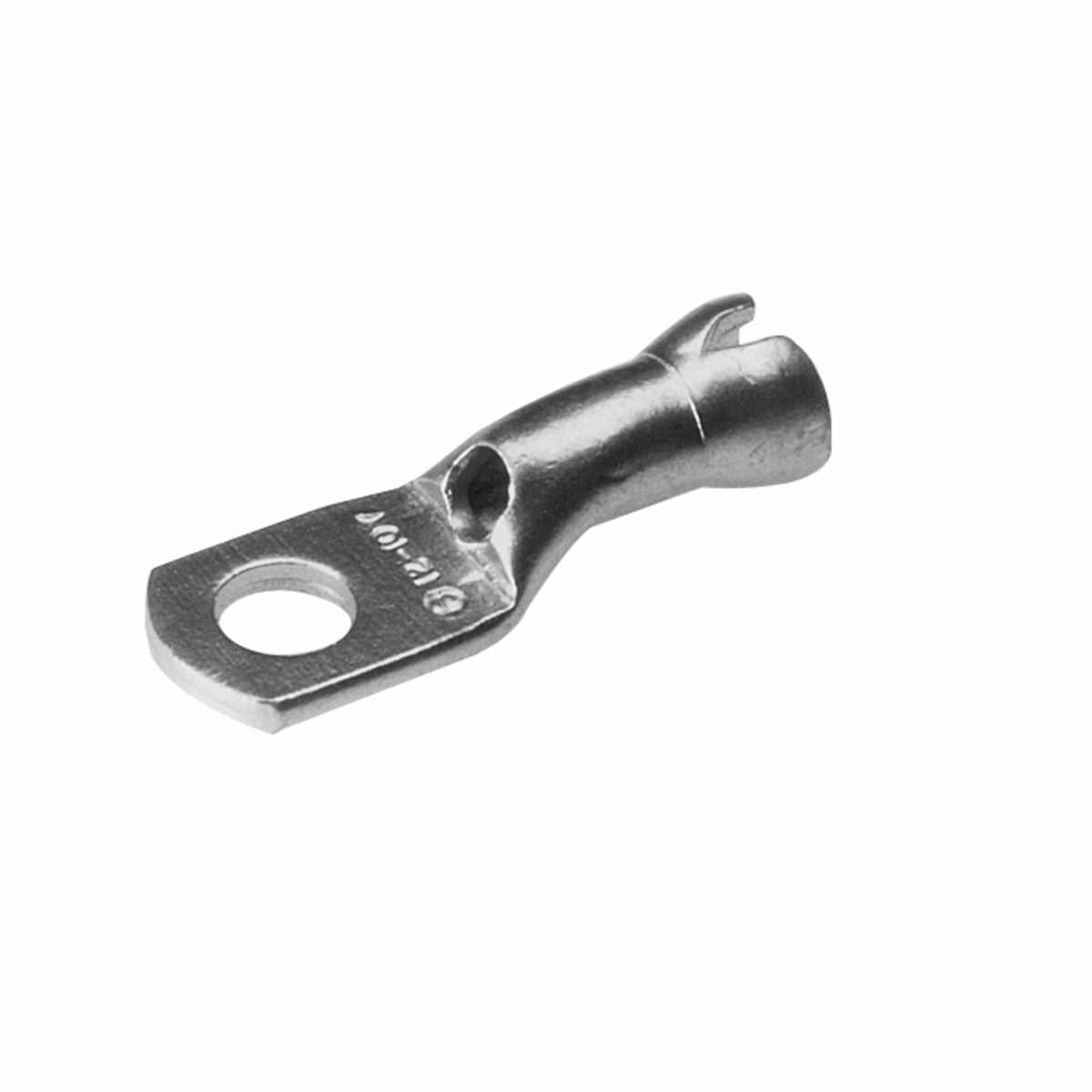

BURNDY YAV10HBOX Seamless Copper Tube Uninsulated Ring Terminal 12-10 AWG 8-10

Product Description

The BURNDY YAV10HBOX is a seamless copper tube uninsulated ring terminal designed for use with 12-10 AWG conductor types. This heavy-duty terminal features a shroud that offers cable support and insulation grip.

• Manufactured from pure electrolytic copper tubing.
• Meets SAE-AS7928 and UL467 standards.
• Designed to ensure a strong connection under vibration or flexing conditions.

Product Highlights

This product is ideal for applications involving copper commercial cables, type AN aircraft cables, and extra flexible conductors.

Product Information

Standard Information

• Catalog Number: YAV10HBOX
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper
• Country of Origin: United States
• Wire Strip Length: 7/16 inches
• Insulation Diameter (maximum): 0.192 inches
• Conductor Type: Commercial/Military Stranded Copper
• Tongue Angle: Straight
• Installation Tool Types: Plier Type: Y10D, Y10-22 Tool
