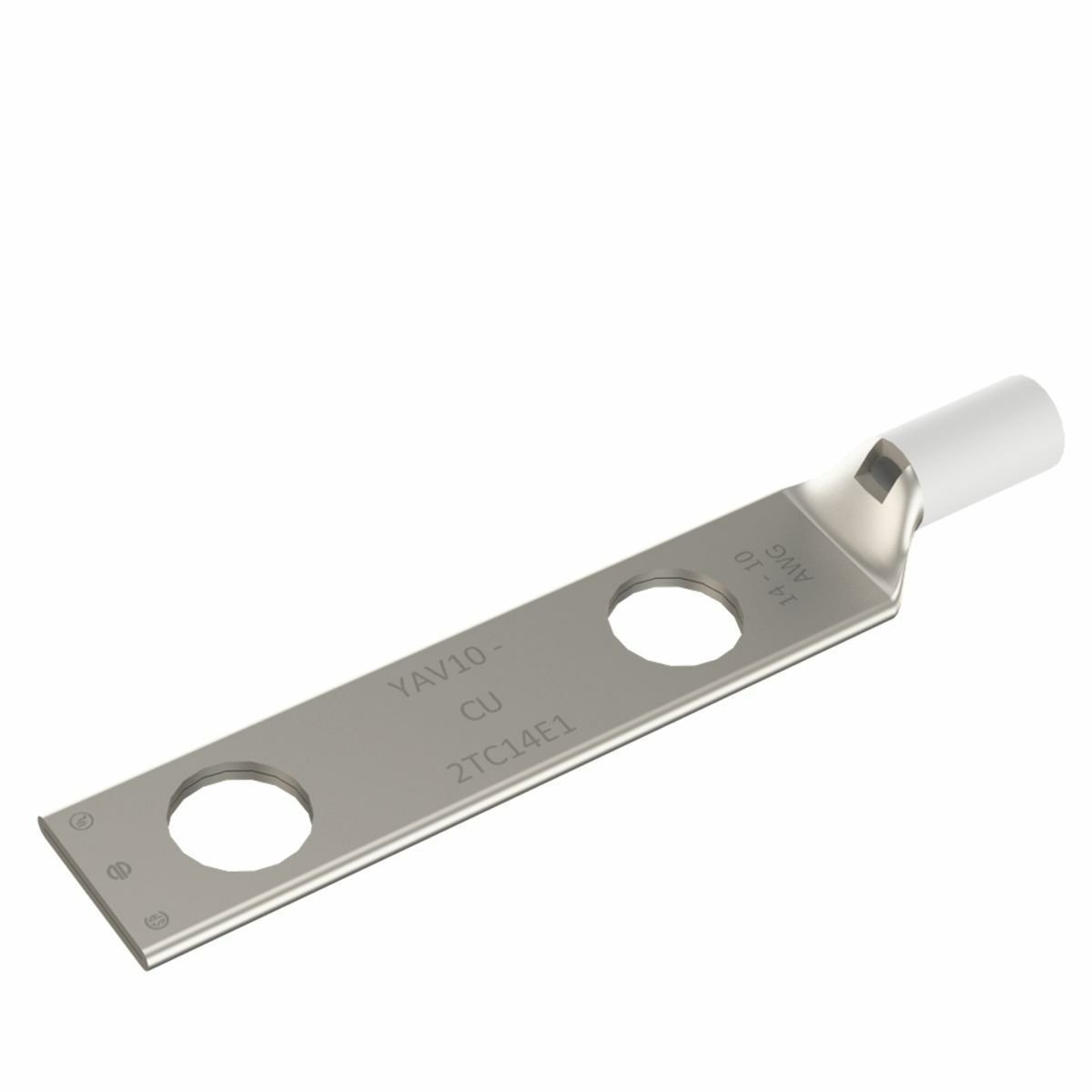

BURNDY YAV102TC14 Copper Compression Lug, 2 Hole with Inspection Window, 14 AWG - 10 AWG (str) / 12 AWG - 10 AWG (sol), 1/4 Stud, 5/8 Stud Hole Spacing, Short Barrel, Tin - Electro Plated

Product Description

The BURNDY YAV102TC14 is a copper compression lug designed for wire termination. It can accommodate stranded wire sizes from fourteen to ten AWG and solid wire sizes from twelve to ten AWG. This product features a two-hole design with an inspection window for easy wire management and installation.

• Material: Copper
• Voltage Rating: 35 kV
• Made in USA

Product Highlights

Features UL listed, suitable for various electrical applications, and built for durability.

Product Information

Standard Information

• Catalog Number: YAV102TC14
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper
• Voltage Rating: 35 kV
• Application: Wire Termination
• Country of Origin: United States
• Special Features: UL Listed 90 DEG C, 600 V, Electro-Tin Plated
• Wire Strip Length: 7/16 inches
• Pad Hole Spacing: 5/8 inches
