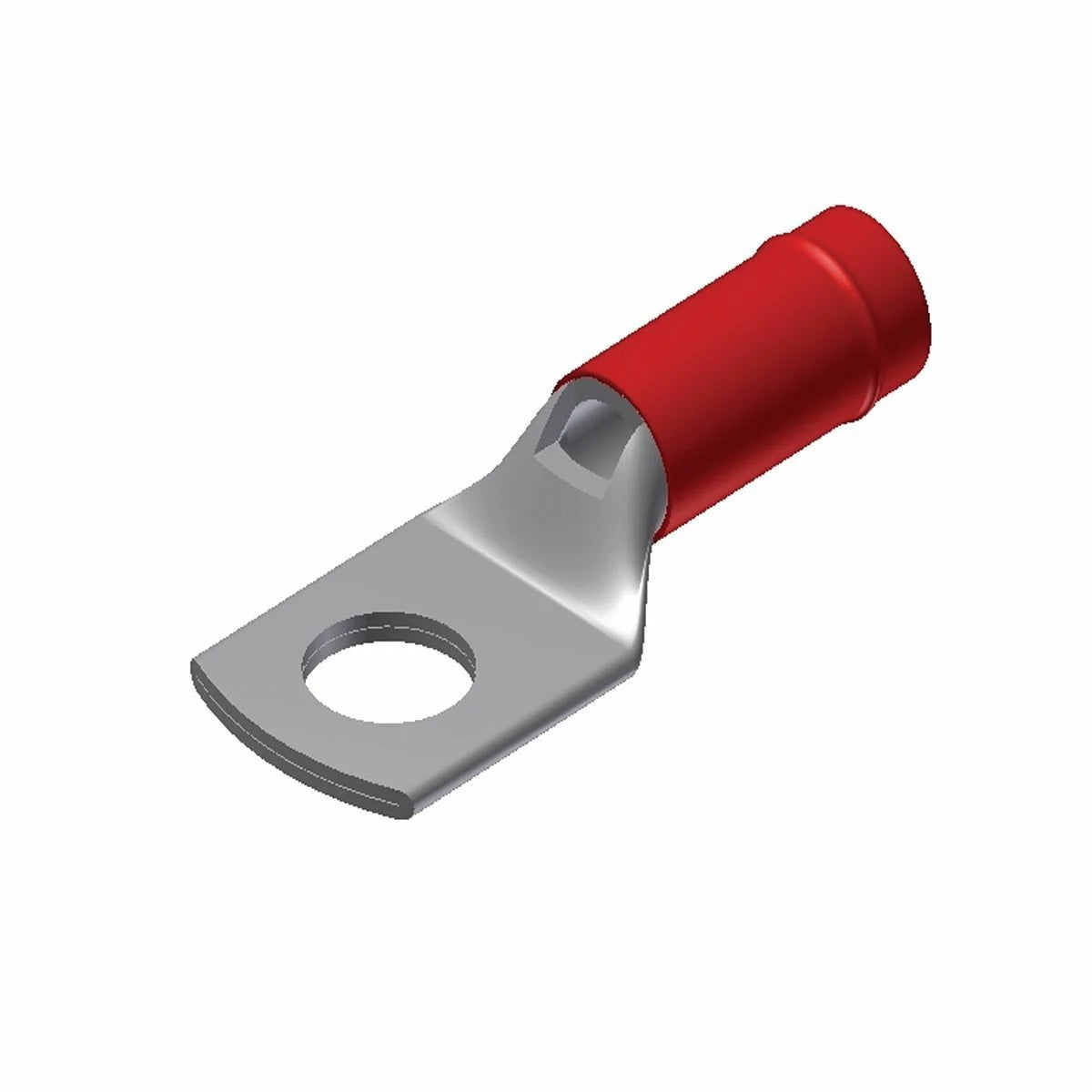

BURNDY YAEV8CL1 Copper Lug, Ring Tongue, 1 Hole w/ Inspection Hole, 8 AWG, 1/4 Stud, Insulated, Short Barrel, Tin Plated, 600 Volts Max.

Product Description

The BURNDY YAEV8CL1 is designed for various electrical applications where a secure connection is vital. This copper lug features a ring tongue for easy connection to a stud. It is made to handle up to 600 volts and is insulated for safety.

• Rated for 600 volts maximum
• Constructed with high-quality copper
• Includes an inspection hole for more reliable installation

Product Highlights

The YAEV8CL1 is suitable for demanding applications such as in aircraft, ships, and hospitals.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Country of Origin: United States

Technical Specifications

• Catalog Number: YAEV8CL1
• Material: Copper
• Insulation Type: Nylon
• Stud Size: 1/4 inch
• Temperature Rating: 105 degrees Celsius
• Wire Strip Length: 7/16 inch
• Maximum Insulation Diameter: 0.258 inches
• Special Features: Designed for high vibration applications
