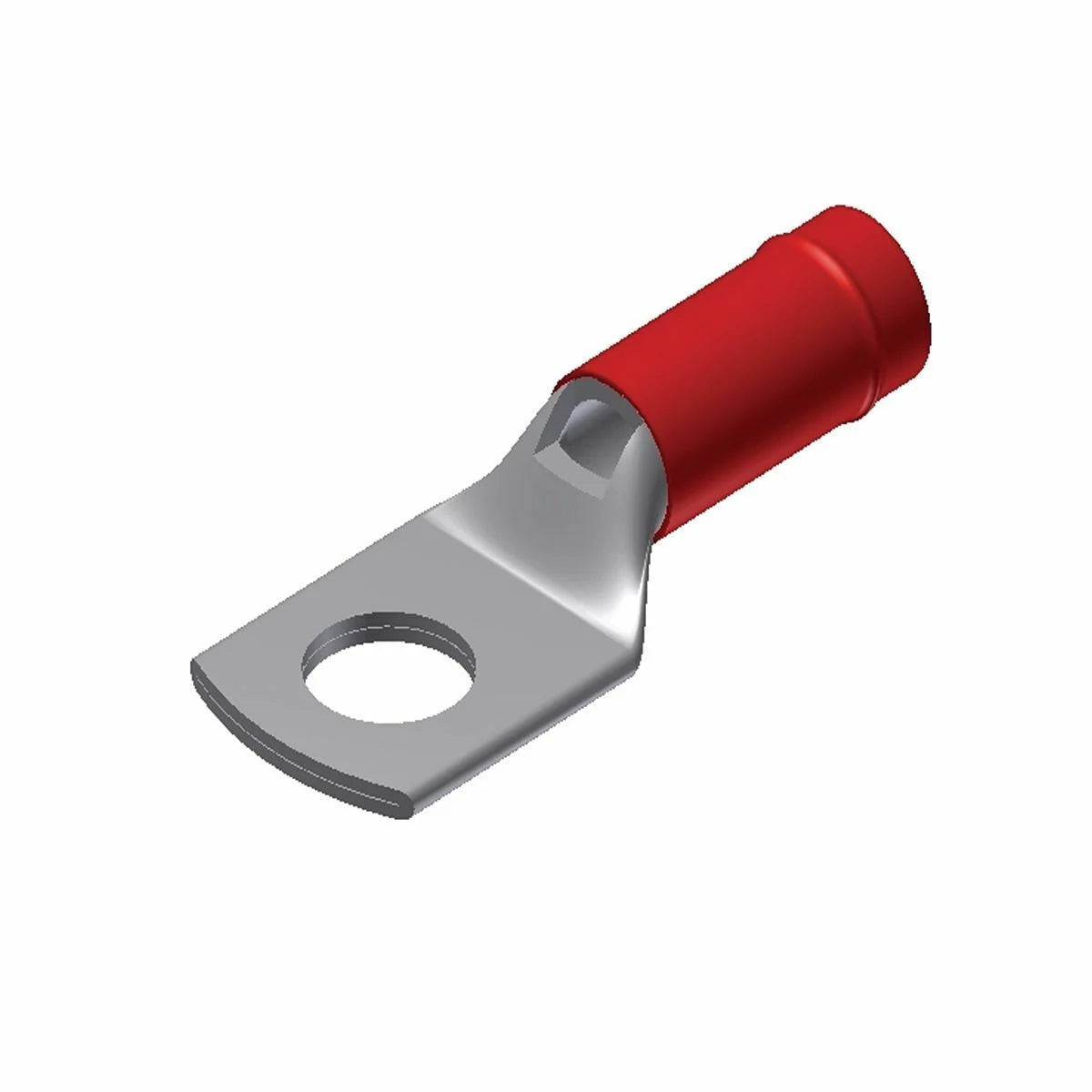

BURNDY YAEV8CL Copper Lug, Ring Tongue, 1 Hole w/ Inspection Hole, 8 AWG, #8-#10 Stud, Insulated, Short Barrel, Tin Plated, 600 Volts Max.

Product Description

The BURNDY YAEV8CL is a copper lug designed for reliable electrical connections in demanding environments. This terminal features a seamless barrel and a double thick tongue to ensure a solid connection.

• Insulation is rated for 600 volts maximum.
• Designed for 8 AWG stranded conductors and stud sizes #8 to #10.
• Suitable for high vibration applications in various industries.

Product Highlights

The YAEV8CL lug is crafted to meet military and UL specifications, ensuring quality and reliability.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YAEV8CL
• Material: Copper
• Insulation: Nylon
• Application: For very demanding high vibration applications
• Temperature Rating: 105 DEG C maximum
• Wire Strip Length: seven-sixteenths inches
• Insulation Diameter (maximum): 0.258 inches
• Country of Origin: United States
