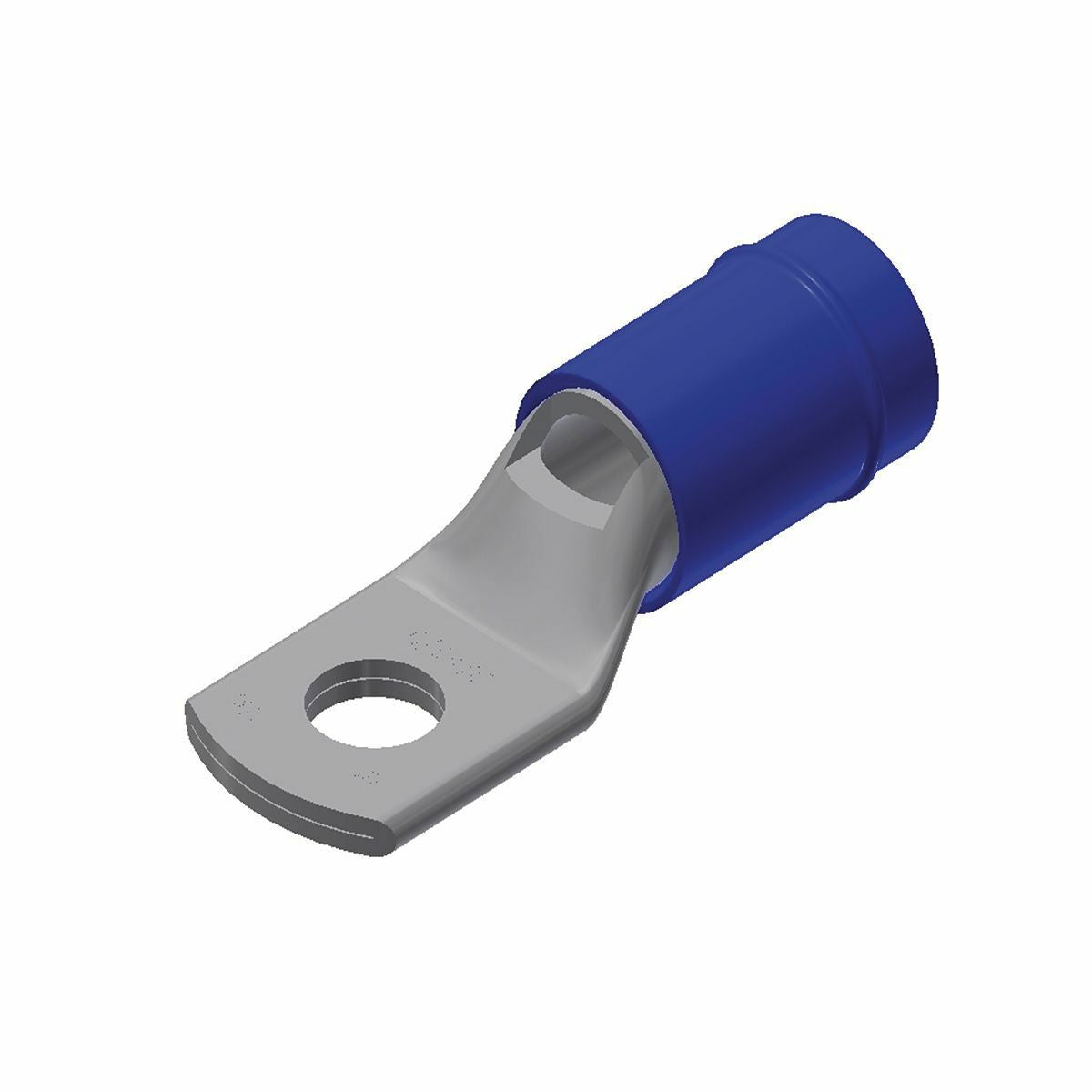

BURNDY YAEV6CL1 Copper Lug, Ring Tongue, 1 Hole w/ Inspection Hole, 6 AWG, #8-#10 Stud, Insulated, Short Barrel, Tin Plated, 600 Volts Max

Product Description

The BURNDY YAEV6CL1 is a copper lug designed for reliable electrical connections. This lug has a ring tongue and a single hole with an inspection feature. It is for wire sizes of six AWG and is compatible with stud sizes #8 to #10. Rated for a maximum voltage of six hundred volts, this lug is insulated and has a short barrel construction.

• Made of durable electrolytic copper for high conductivity
• Insulation designed for high vibration applications
• Temperature rated at one hundred five degrees Celsius

Product Highlights

This lug is ideal for demanding environments such as hospitals and industrial settings.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YAEV6CL1
• Material: Copper
• Insulation: Yes
• Application: High vibration environments in aircraft and ships
• Temperature Rating: 105 degrees Celsius
• Voltage Rating: 600 volts
• Wire Strip Length: 1/2 inch
• Tongue Angle: Straight
