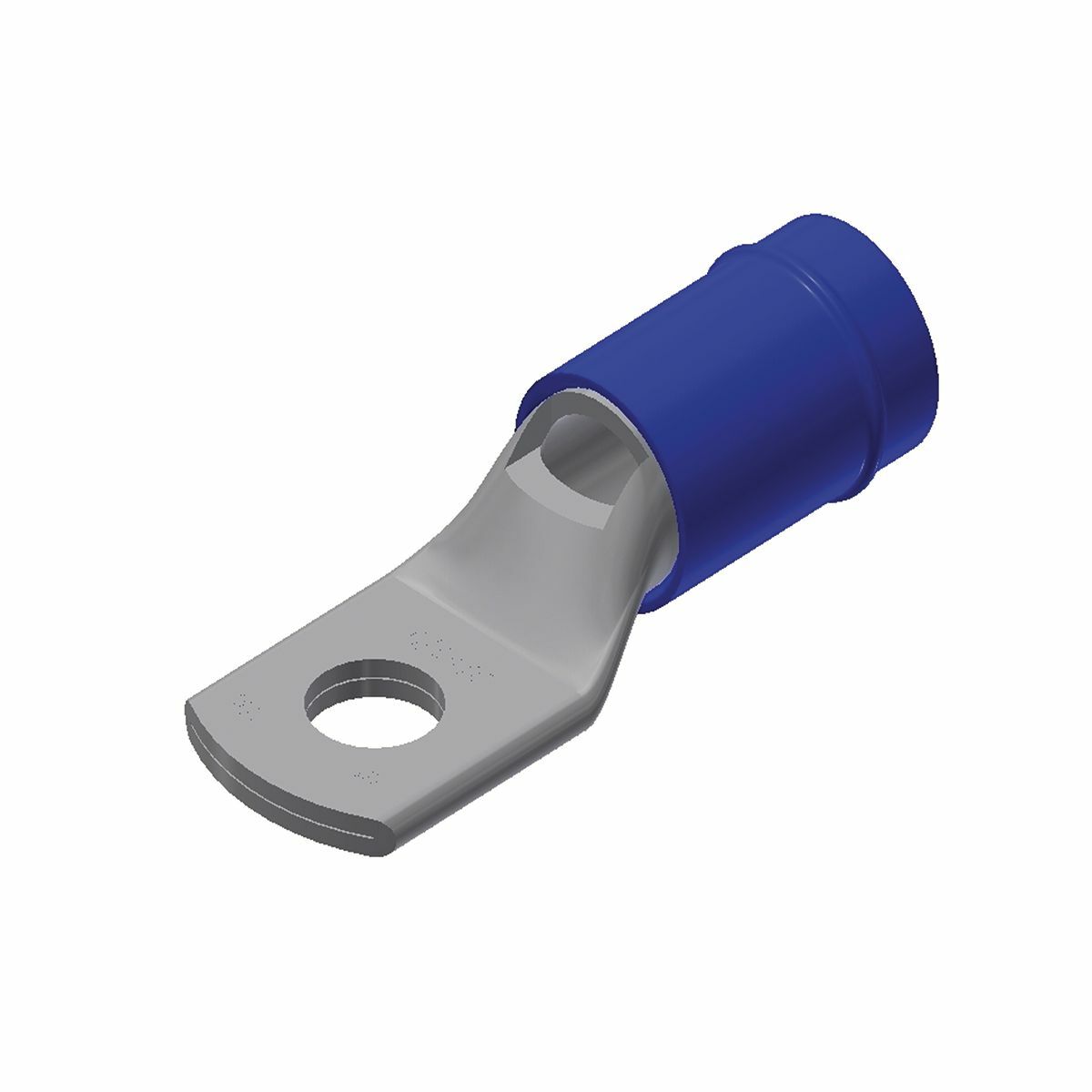

BURNDY YAEV14 CU Ring Tongue Terminal, 1 Hole/W/InspWindow, #20-#14 AWG, 600 V, #8-#10 Stud

Product Description

The BURNDY YAEV14 is a reliable CU ring tongue terminal designed for a range of applications. This terminal accommodates wire sizes from #20 to #14 AWG and operates at a voltage of 600 volts. It is suitable for #8 to #10 stud applications, making it versatile in various electrical setups.

• Effective in high vibration environments
• Nylon insulation for added safety
• Seamless barrel design for improved conductivity

Product Highlights

This terminal is designed for high vibration applications found in aircraft, ships, and industrial settings. It is built with a seamless barrel from pure electrolytic copper, ensuring low resistance and high conductivity.

Product Information

Standard Information

• Catalog Number: YAEV14
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper
• Insulation Type: Nylon
• Temperature Rating: 105 DEG C
• Insulation Diameter (maximum): 0.154 inches
• Wire Strip Length: 1/4 inches
• Standard: UL486; Military Specified (Mil-Spec)
• Country of Origin: United States
• Special Features: Designed for demanding high vibration applications, electro-tin plated for corrosion resistance, high dielectric strength insulation
