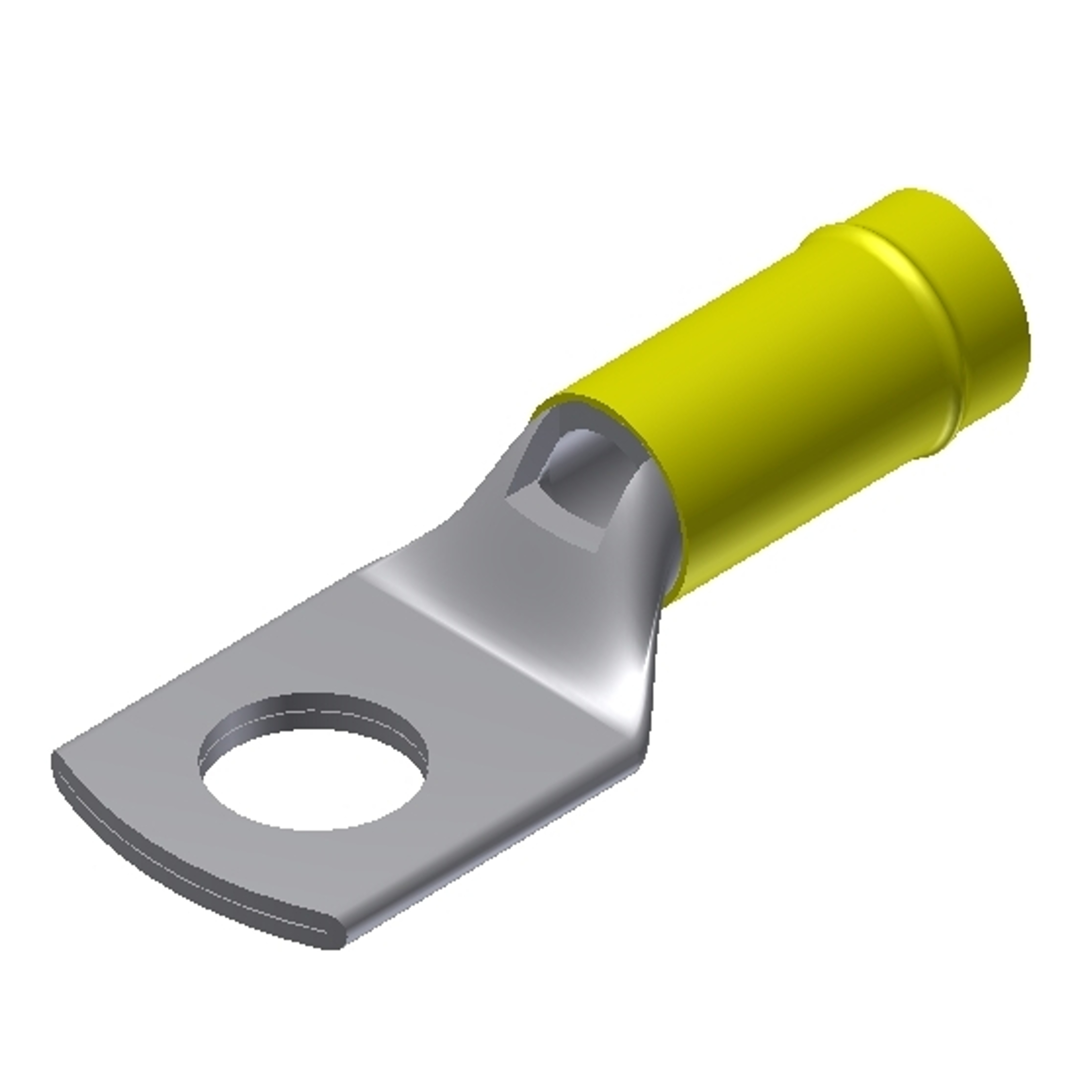

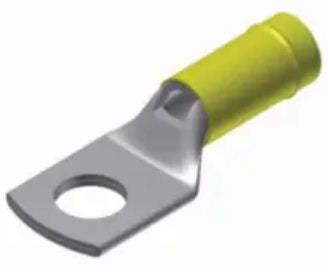

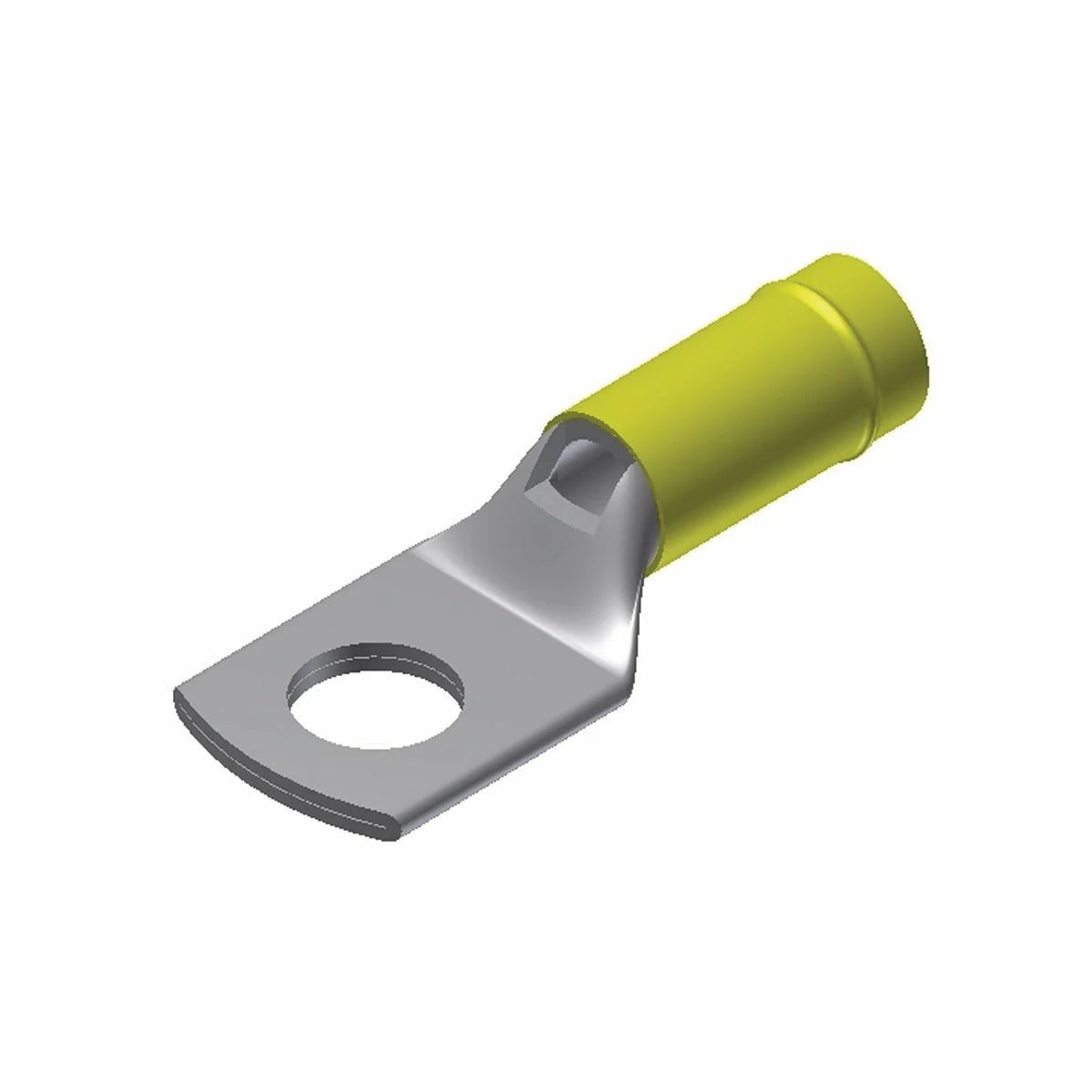

Burndy YAEV10T3 Copper Terminal Ring Tongue w/ Inspection Hole Wire Range 12-10 AWG 1/4 Stud

Product Description

The Burndy YAEV10T3 is a copper terminal designed for various wire applications. The terminal supports sizes from twelve to ten AWG and fits a quarter-inch stud. It provides a secure connection due to its electro-tin plating. This product is ideal for high vibration environments, such as marine and aircraft applications.

• High vibration application readiness.
• Electro-tin plated copper for corrosion resistance.
• Nylon insulation for durability.

Product Highlights

Designed for high reliability in demanding environments, the Burndy YAEV10T3 offers an effective solution for electrical connections. Its robust construction makes it a great choice for hospitals, industrial settings, and generating plants.

Product Information

Standard Information

• Brand: Burndy
• UPC: 781810564271
• Country of Origin: United States
• Insulation: Yes
• Item Type: Heavy Duty
• Application: For high vibration applications encountered in aircraft, ships, hospitals, and industries.

Technical Specifications

• Catalog Number: YAEV10T3
• Material: Copper
• Temperature Rating: 105 degrees Celsius
• Wire Strip Length: Five sixteenths inches
• Maximum Insulation Diameter: 0.209 inches
• Tongue Angle: Straight
• Standard: UL486; Military Specified (Mil-Spec)
