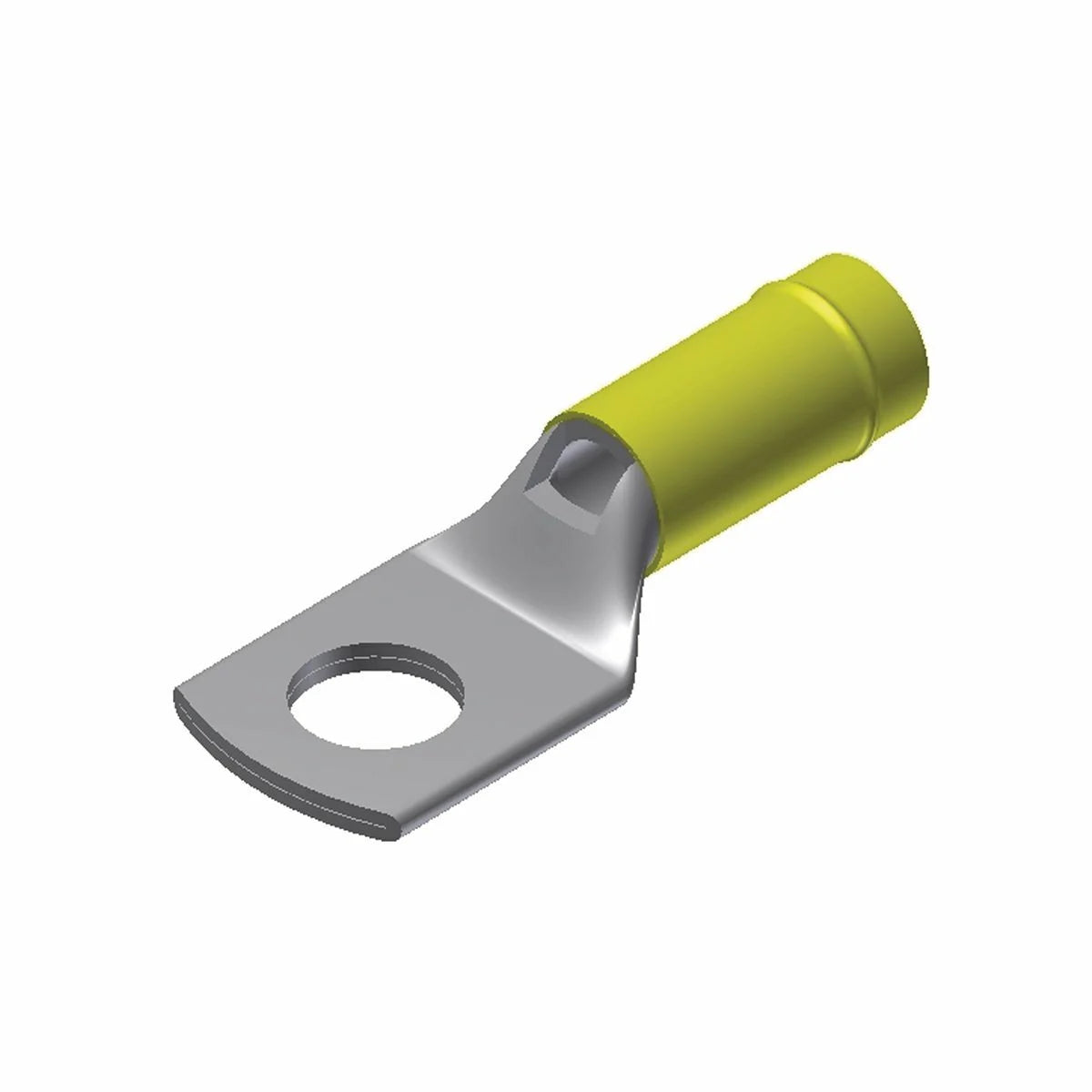

BURNDY YAEV10T2 Copper Lug, Ring Tongue, 1 Hole w/ Inspection Hole, AN 12-10, 5/16 Stud, Insulated, Short Barrel, Tin Plated, 600 Volts Max.

Product Description

The BURNDY YAEV10T2 is a copper lug designed for rigorous applications. It features a ring tongue design with a single hole, suitable for connecting wires in high vibration environments. This lug is insulated and has an inspection hole, allowing for secure connections.

• Designed for high vibration applications
• Insulated for safety and reliability
• Maximum voltage rating of 600 volts

Product Highlights

This product is ideal for use in aircraft, ships, hospitals, and industrial settings where reliability is essential.

Product Information

Standard Information

• Catalog Number: YAEV10T2
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper
• Insulation: Yes
• Application: For high vibration applications encountered in aircraft and aboard ships
• Special Features: Insulation lock, corrosion resistance
• Temperature Rating: 105 degrees Celsius
• Wire Strip Length: 5/16 inches
• Insulation Diameter (maximum): 0.209 inches
• Item Type: YAEV, Heavy Duty
