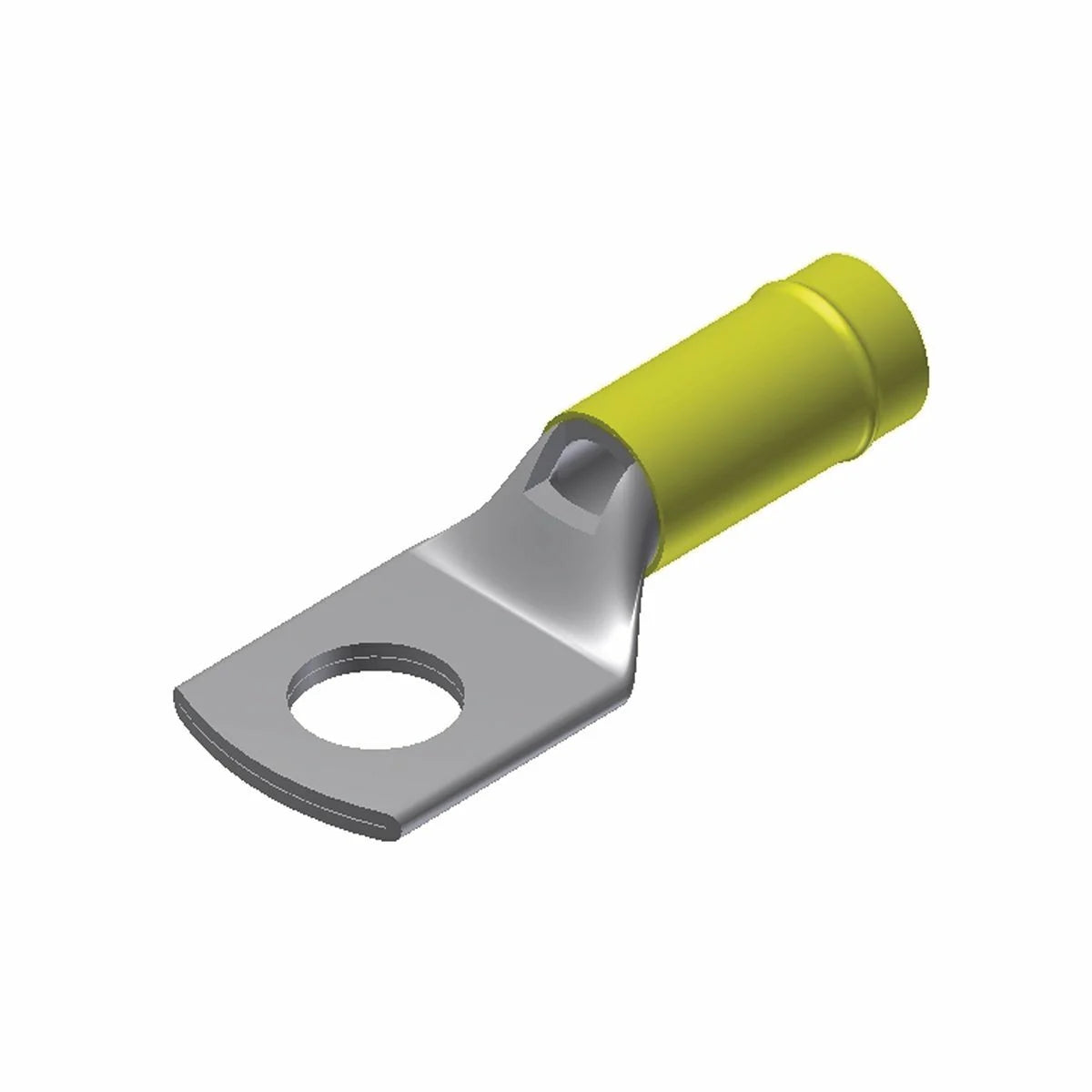

BURNDY YAEV10 Copper Terminal, Ring Tongue w/ Inspection Hole, Wire Range 12-10 AWG, #8-#10 Stud, Nylon Insulated, Short Barrel, Tin Plated, 600 Volts Max.

Product Description

The BURNDY YAEV10 is a copper terminal designed for reliable electrical connections. This ring tongue terminal features an inspection hole for easy installation. It accommodates wire sizes from twelve to ten AWG. The terminal is suitable for use with #8 to #10 studs.

• Insulation: Nylon insulated for added durability.
• Temperature Rating: Rated for a maximum of one hundred five degrees Celsius.
• Material: Constructed from electrolytic tin-plated copper for high conductivity.

Product Highlights

This terminal is ideal for high vibration applications, such as those in aircraft, ships, and motor leads in hospitals or industrial settings.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Sub Brand: Insulug
• Country of Origin: United States
• Made in USA: Yes

Technical Specifications

• Catalog Number: YAEV10
• Electrical Rating: 600 Volts
• Material: Copper
• Insulation Type: Nylon
• Wire Strip Length: 5/16 inches
• Maximum Insulation Diameter: 0.209 inches
• Special Features: Designed for high vibration applications, seamless barrel construction.
• Standards Complied: UL486; Military Specified (Mil-Spec)
