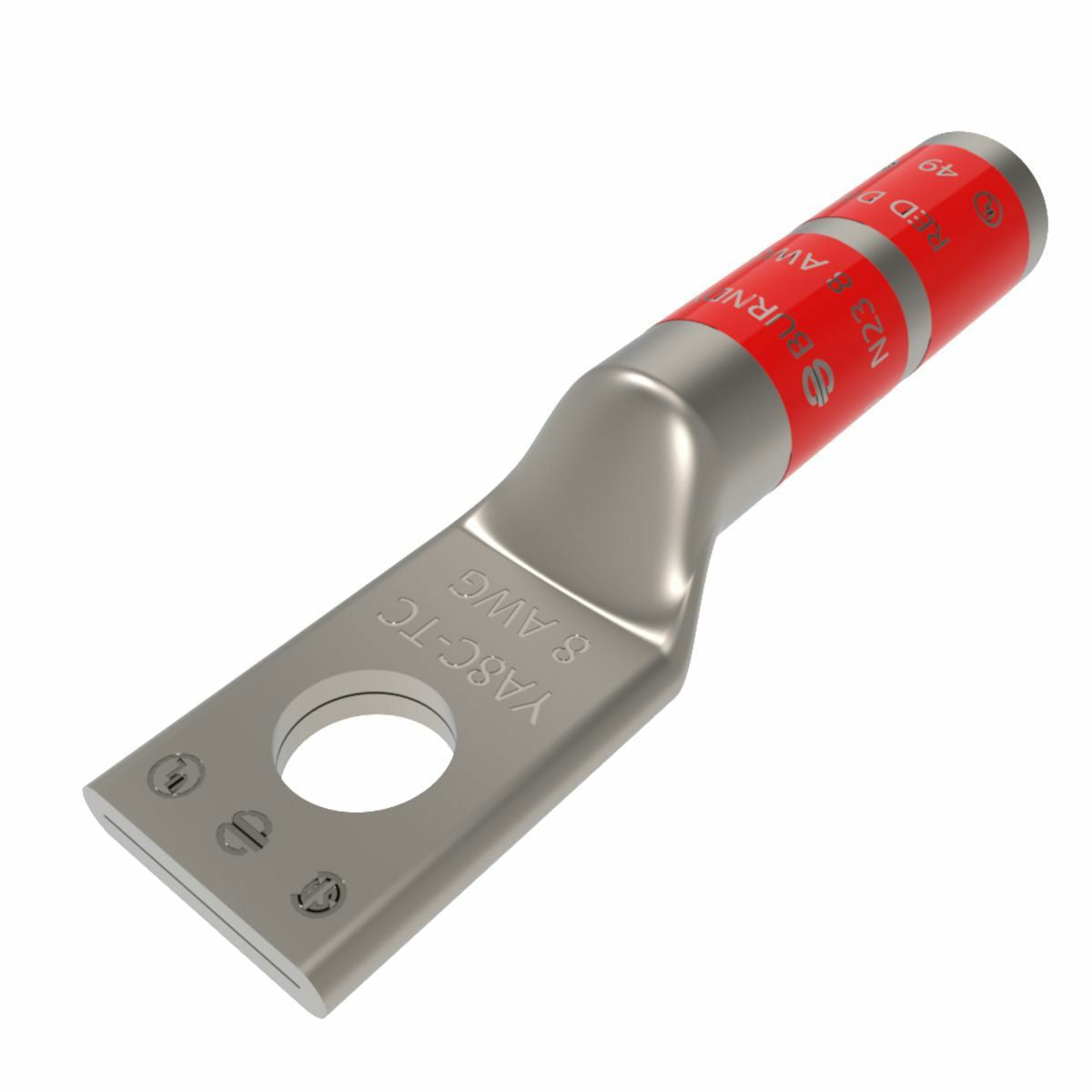

Burndy YA8CTC14 8 AWG CU, One Hole, 1/4 Stud Size, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90?C, Up to 35kV, RED Color Code, 49 Die Index

Product Description

The Burndy YA8CTC14 is a compression cable lug made for wire termination. This product is designed for copper conductors with a size of eight to six AWG. It features a long barrel and is tin plated for corrosion resistance. The lug supports a voltage rating of six hundred volts to thirty-five kilovolts, making it suitable for high voltage applications.

• This cable lug is UL and CSA approved.
• It includes a chamfered cable entry type for easy installation.
• The design ensures a secure fit on conductors with a pad size of one-quarter inch.

Product Highlights

Durable design for reliable performance in electrical connections.

Product Information

Standard Information

• Catalog Number: YA8CTC14
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper
• Voltage Rating: 35 kV
• Temperature Rating: 90 °C
• Special Features: UL Listed 90 °C, electro-tin plated finish, available in 45 ° and 90 ° angles
• Wire Strip Length: 1 inch
• Die Index: 49
• Country of Origin: United States
