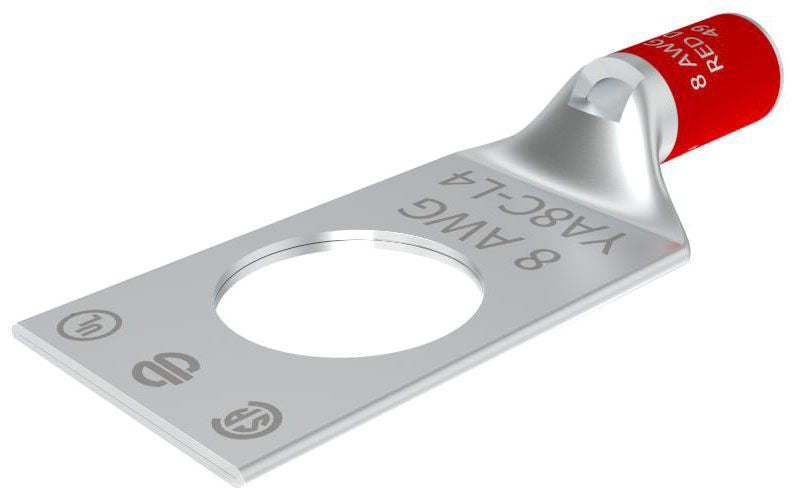

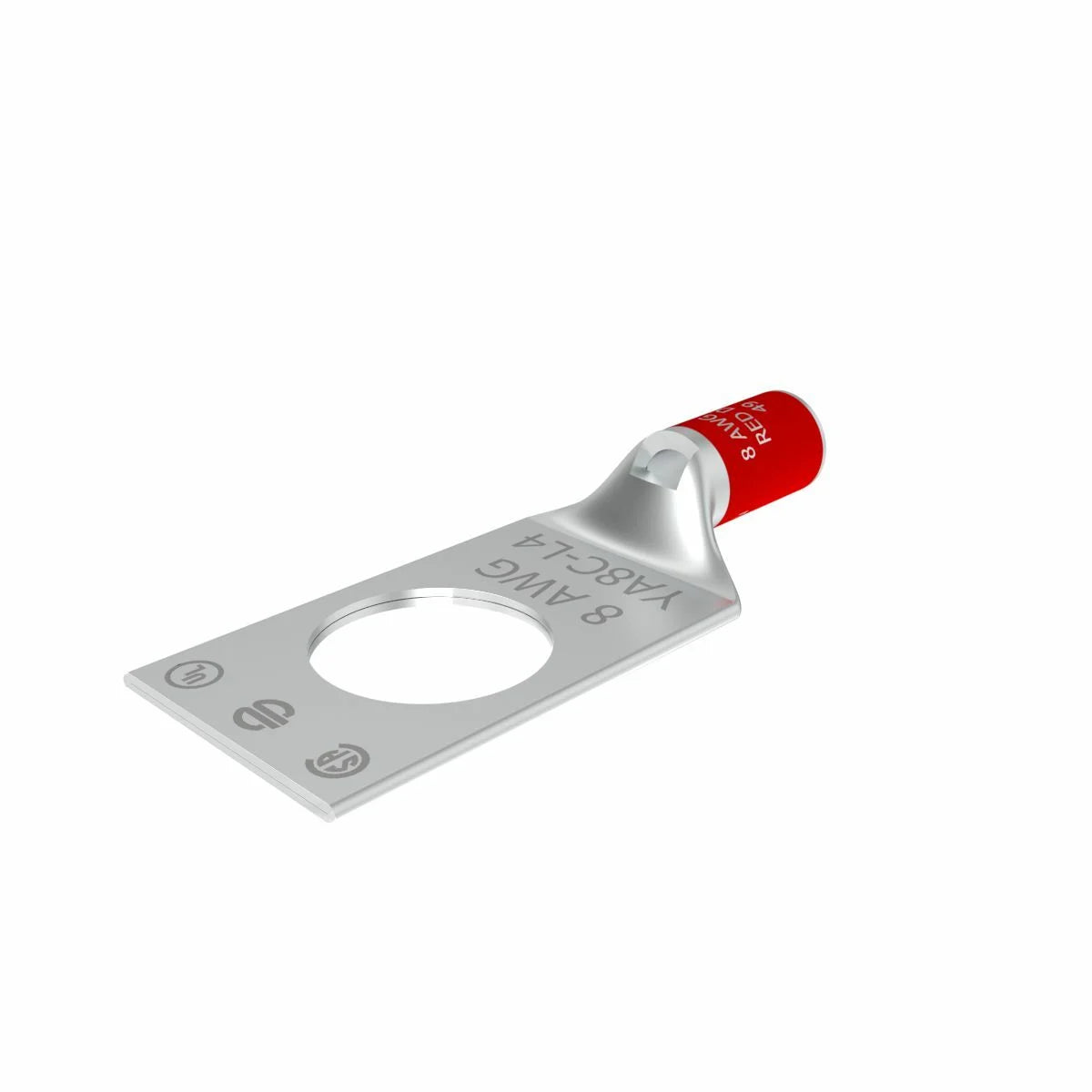

BURNDY YA8CL4BOX 8 AWG CU, One Hole, 1/2 Stud Size, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA 90? Up to 35kV, RED Color Code, 49 Die Index

Product Description

The BURNDY YA8CL4BOX is a compression cable lug for wire termination. It is made with copper material and is designed for use with an 8 AWG conductor. This cable lug is UL and CSA approved for voltages up to thirty-five kilovolts. The barrel is tin-plated, ensuring durability while maintaining good electrical conductivity.

• Voltage Rating: 35 kV
• Wire Strip Length: 1/2 inch
• Die Index: 49

Product Highlights

This product is suitable for various applications requiring reliable wire connections. Its standard barrel design allows for easy installation. The copper material offers high conductivity, and the electro-tin plating increases the longevity of the lug in demanding environments.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Brand: BURNDY

Technical Specifications

• Catalog Number: YA8CL4BOX
• Country of Origin: United States
• Application: Wire Termination
• Standard: UL 486A-486B
• Material: Copper
• Special Features: UL Listed 90 Degrees C, 600 V - 35 KV, Available in 45 and 90 Degrees Angles, Color Code: Red
• Overall Length: 1.76 inches
• Pad Size: 0.71 inches
