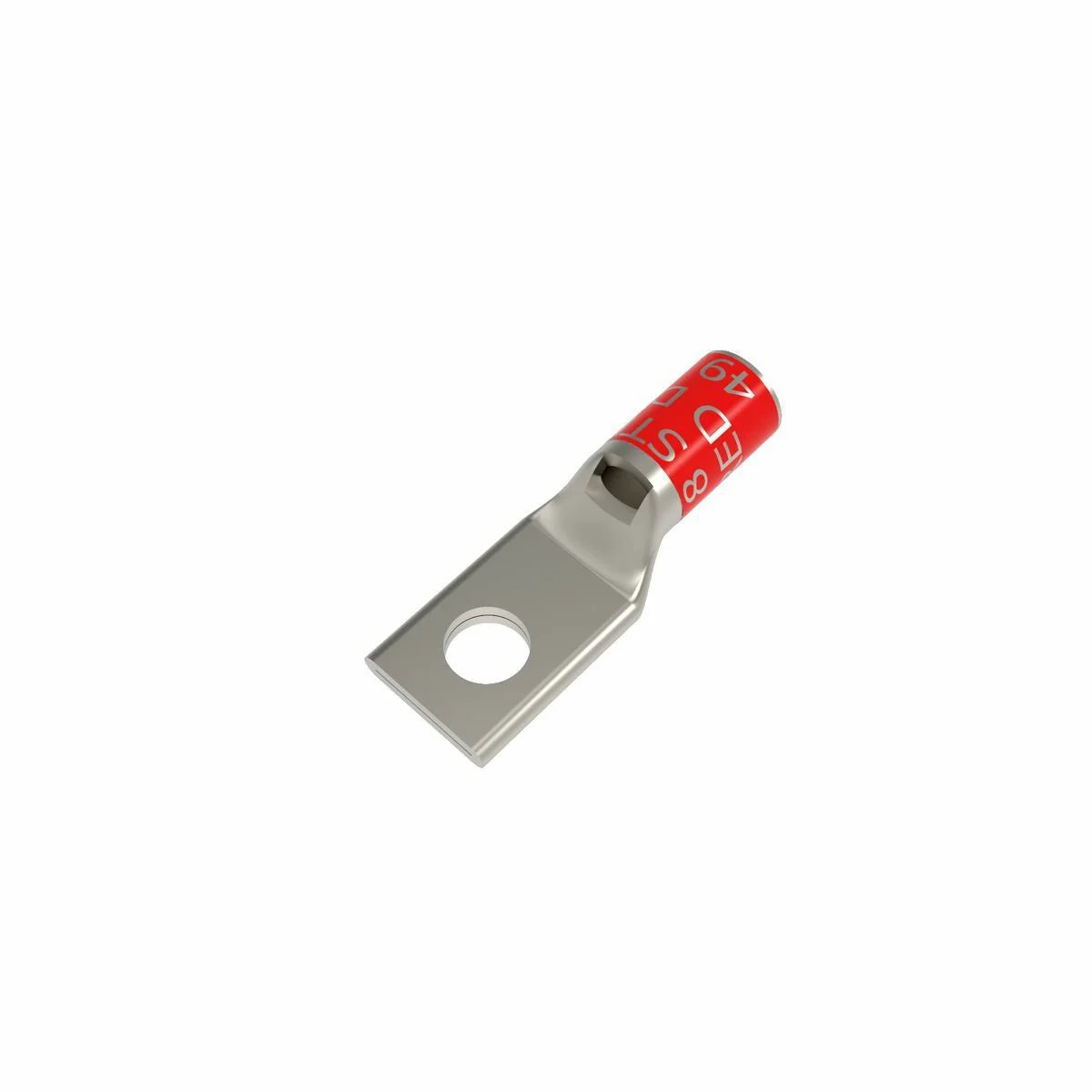

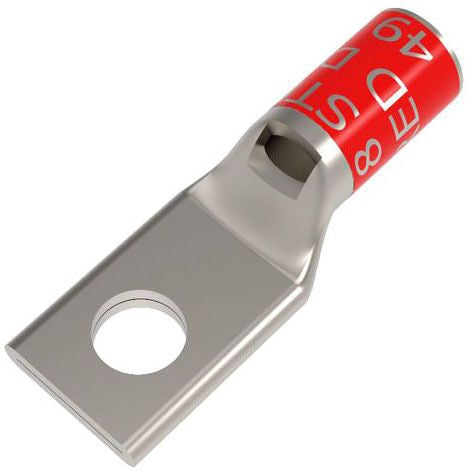

BURNDY YA8CL3BOX 8 AWG CU One Hole 3/8 Bolt Size Standard Barrel Inspection Window

Product Description

The BURNDY YA8CL3BOX is a compression cable lug designed for use with 8 AWG copper conductors. It is capable of handling voltage ratings up to thirty-five kilovolts and is UL listed for safety. This lug features an inspection window, allowing for easy visual inspection to ensure proper wire installation. The product is electro-tin plated to resist corrosion and improve conductivity.

• Voltage Rating: Up to thirty-five kilovolts
• Material: Copper with electro-tin plating
• Application: Wire Termination

Product Highlights

This cable lug is ideal for high-voltage applications where reliable connections are essential. Its design includes a standard barrel with an internal chamfer, making it straightforward to install.

Product Information

Standard Information

• Catalog Number: YA8CL3BOX
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Country of Origin: United States
• Voltage Rating: 35 kV
• Material: Copper
• Special Features: UL Listed 90 DEG C, 600 V - 35 KV, with inspection window
• Die Index: 49
• Application: Wire Termination
• Stud Size: 3/8 inch
• Wire Strip Length: 1/2 inch
