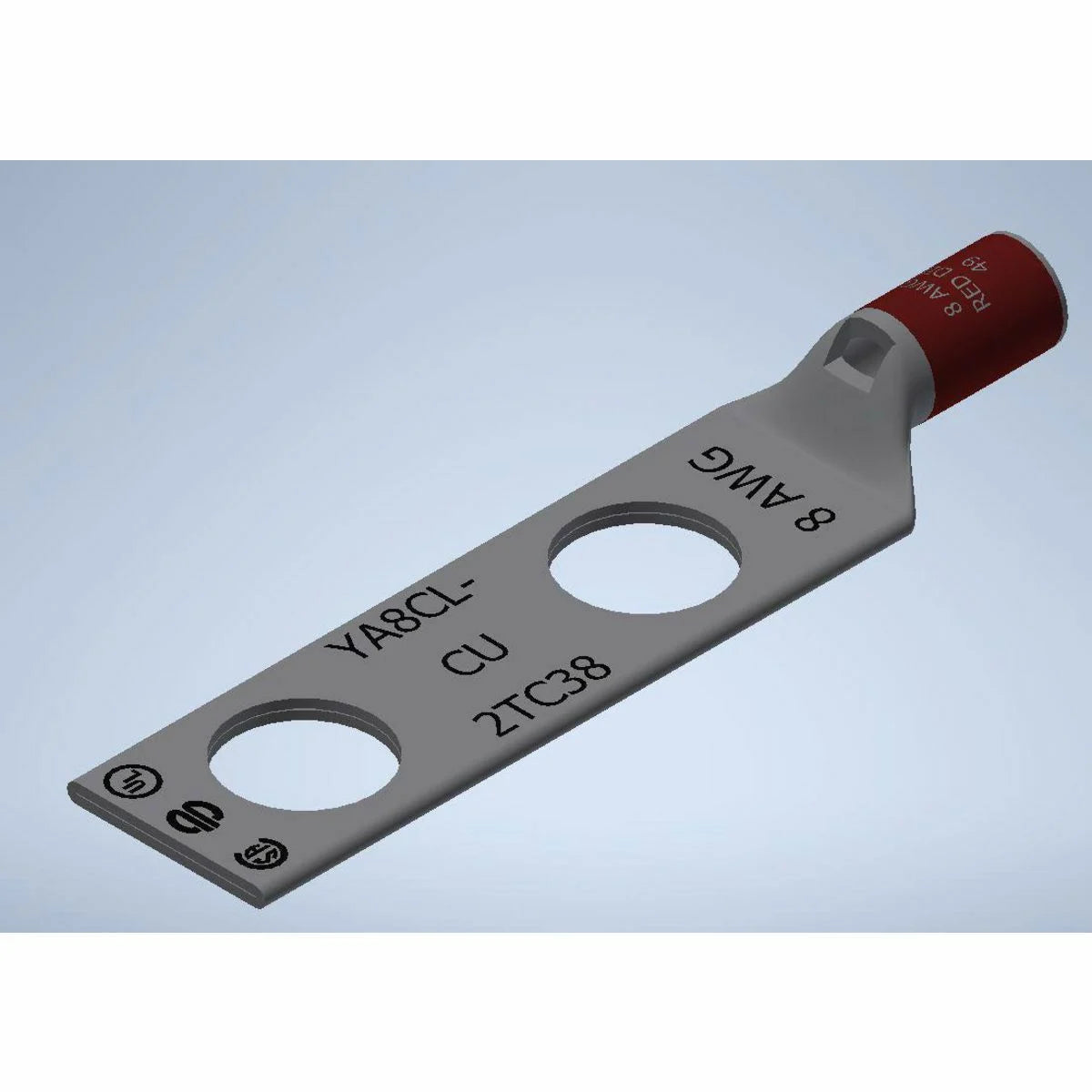

BURNDY YA8CL2TC38 8 AWG CU, Two Hole, 3/8 Stud Size, 1 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90?C, Up to 35kV, Red Color Code, 49 Die Index

Product Description

The BURNDY YA8CL2TC38 is designed for efficient wire termination. It is a two-hole compression terminal made from copper and suitable for conductors rated from 600 volts to 35 kilovolts. This product features a straight barrel with a standard inspection window for easy visual checks. The internal chamfer aids in conductor insertion, and the electro-tin plating enhances durability against elements.

• Voltage rating: 600 volts up to 35 kilovolts
• Material: Copper, UL Listed
• Includes inspection window for easy visual confirmation

Product Highlights

This terminal is ideal for use in various electrical applications where a reliable wire connection is critical. It ensures secure connectivity for stranded and solid copper conductors.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Catalog Number: YA8CL2TC38

Technical Specifications

• Voltage Rating: 35 kV
• Temperature Rating: 90 DEG C
• Wire Strip Length: 1/2 inch
• Pad Size: 0.58 inch width, 0.06 inch thickness
• Stud Size: 3/8 inch
• Die Index: 49
• Application: Wire Termination
• Country of Origin: United States
