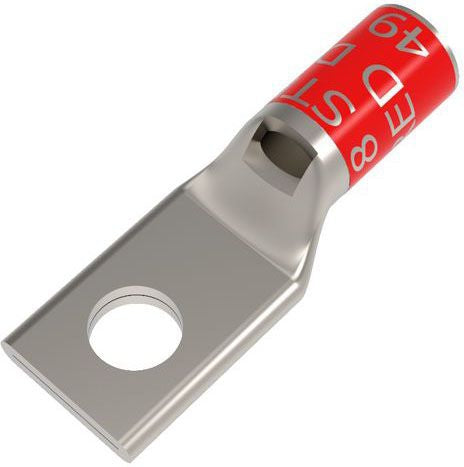

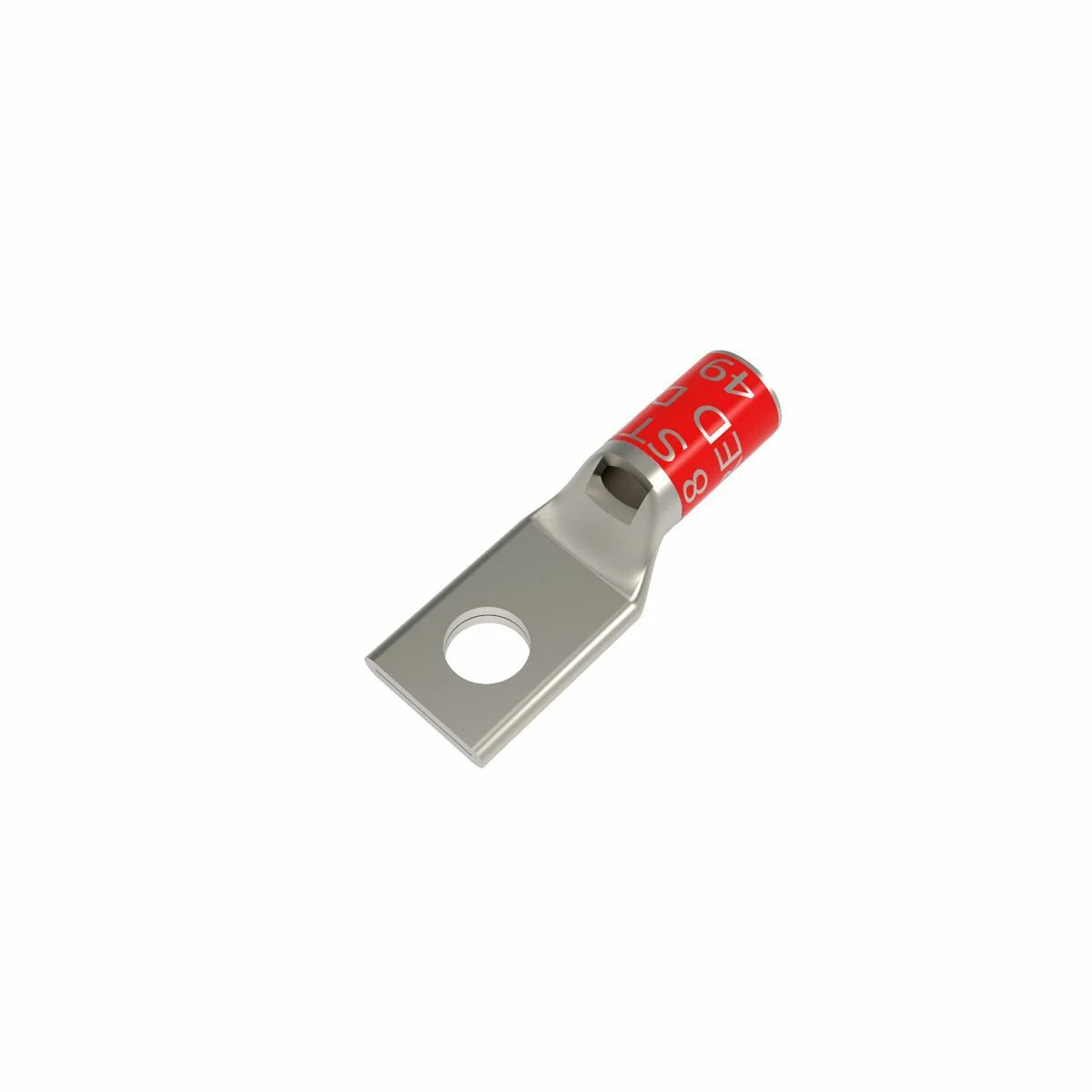

BURNDY YA8CL2BOX 8 AWG CU, One Hole, 5/16 Stud Size, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA 90? Up to 35kV, RED Color Code, 49 Die Index.

Product Description

The BURNDY YA8CL2BOX is a compression cable lug designed for wire termination. This product is suitable for conductor sizes of eight AWG and can handle voltages up to thirty-five kilovolts. It features an inspection window and a tin-plated finish, ensuring durability and corrosion resistance.

• Voltage Rating: 35 kV
• Material: Copper
• Standard: UL Listed

Product Highlights

This lug is essential for secure electrical connections in various applications, including industrial and commercial settings.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YA8CL2BOX
• Application: Wire Termination
• Special Features: UL Listed 90°C, tin-plated finish, inspection window
• Country of Origin: United States
• Wire Strip Length: 0.5 inches
• Pad Size: 0.52 inches wide x 0.06 inches thick
• Number of Pad Holes: 1
• Stud Size: 5/16 inches
