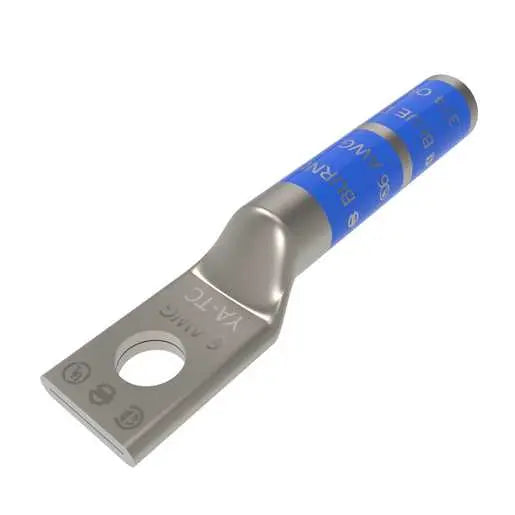

Burndy YA6CTC10 hylug #6 AWG Cu, 1-Hole, #10 Stud, Long Barrel

Product Description

The BURNDY YA6CTC10 is a HYLUG designed for wire termination. This #6 AWG copper, one-hole lug features a #10 stud size and a long barrel with an internal chamfer for smooth wire insertion. It is electro-tin plated to reduce galvanic corrosion and marked with stamping and barrel color.

• Internal chamfer at wire entry prevents strand damage
• Long barrel increases mechanical strength with more crimps
• Electro-tin plated to reduce galvanic corrosion

Product Highlights

This copper compression lug is ideal for creating secure and corrosion-resistant wire terminations in electrical applications.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YA6CTC10
• Country of Origin: China

Technical Specifications

• Application: Wire Termination
• Catalog Number: YA6CTC10
• Color Code: Blue
• Connector Type: LONG BARREL
• Die Index: 7
• EU RoHS Indicator: Yes
• Feature - Barrel Style: Chamfered
• Feature - Barrel Type: Long
• Finish Type: Tin-Plated
• Material: COPPER
• Physical Attribute - Number of Holes: 1
• Physical Attribute - Tongue Type: Standard
• Plated: Y
• Plating Type: Tin - Electro Plated
• Sub Brand: HYLUG
• Temperature Rating: 194
• Trade Name: HYLUG
• Type: Long Barrel, Tin Plated
• UPC: 781810019061
• UPC 14 Digit GTIN: 00781810019061
• Dimension - B Length inch: 1.12 in
• Dimension - Bolt Hole Size inch: 0.20 in
• Dimension - Bolt Size fraction: #8-#10
• Dimension - Bolt Size inch: 0.21
• Dimension - D inch: 0.52 in
• Dimension - Hole Size fraction: #10
• Dimension - Hole Size inch: 0.21
• Dimension - Hole Size mm: 5.3 mm
• Dimension - L Length Overall mm: 48 mm
• Dimension - Length Overall inch: 1.89 in
• Dimension - N inch: 0.25 in
• Dimension - Outside Diameter inch: 0.29 in
• Dimension - Pad Width inch: 0.42 in
• Dimension - Strip Length inch: 1-3/16
• Dimension - Stud Size fraction: #10
• Dimension - Stud Size inch: #10
• Dimension - Z (inch): 0.27 in
• Physical Attribute - Tongue Angle: Straight
• Voltage - Maximum: 35000
• Voltage Rating: 35 kV
• Conductor - Copper Str Size: 6 AWG
• Conductor - Copper Str Size Range: 6 AWG
• Conductor - Material: COPPER
• Conductor Size: 6 AWG
• Conductor Type: CODE
• Industry Standard(s): UL 486A-486B
• Standards - Industry Standards Met: UL467
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes
• Brand: Burndy
• Model: YA6CTC10
• Country of Origin: China
• ECCN: EAR99
• UNSPSC: 39121405
• Finish: Electro Tin-Plated
• Use With: Copper
• Stud Size: #10
• Lug Wire Size: 6 AWG
• Volts AC: 600
• Mounting: 1-Hole
• Allowable Gauge Range: 6
