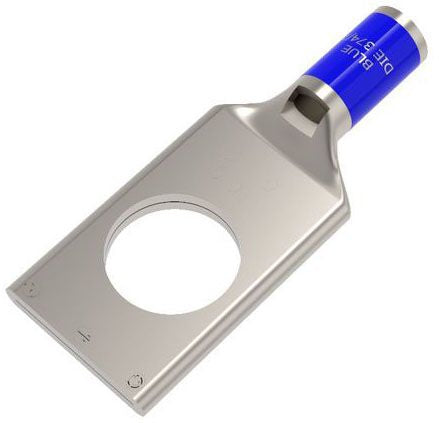

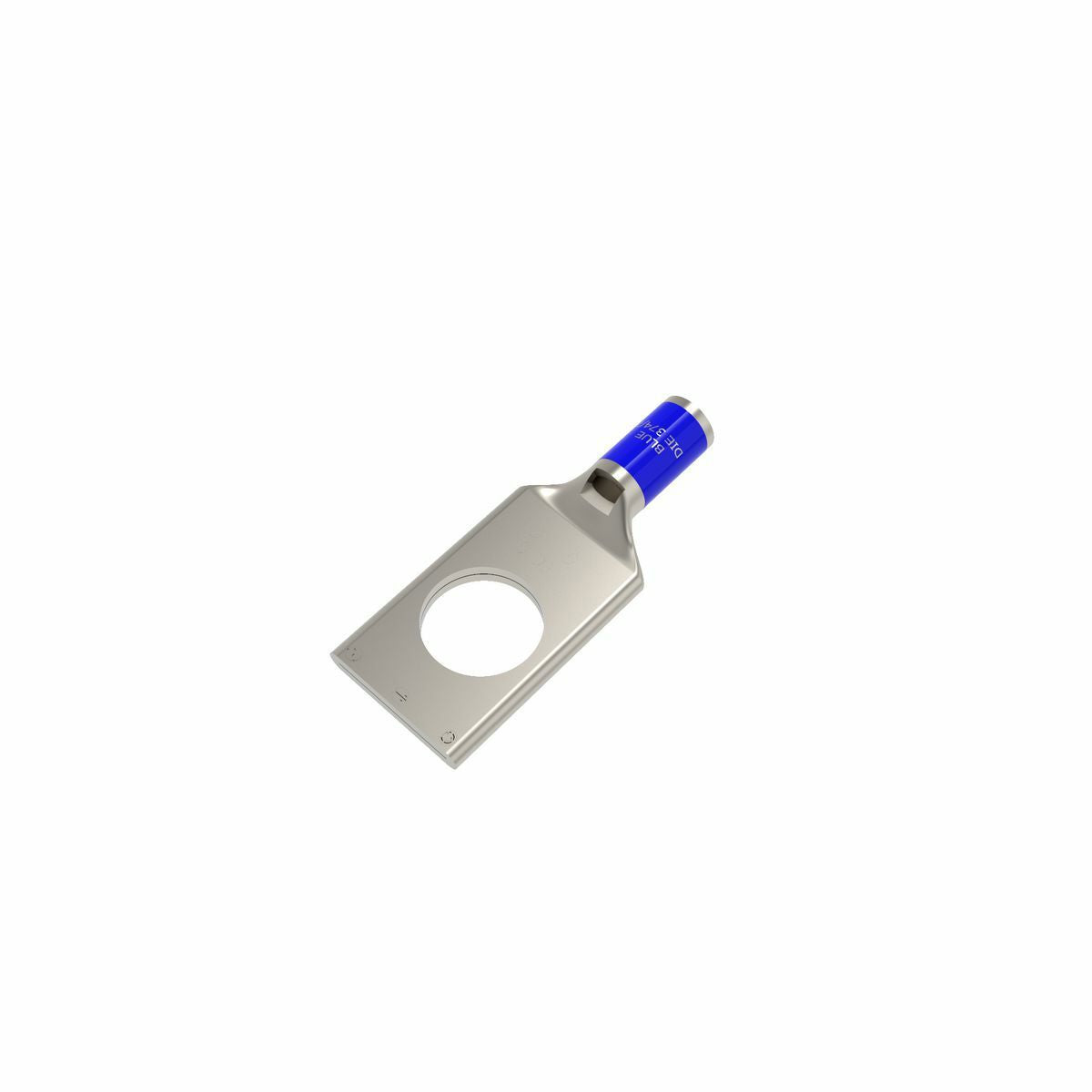

BURNDY YA6CLBOX 6 AWG CU One Hole 1/4 Stud Size Standard Barrel Inspection Window Internal Chamfer Tin Plated UL/CSA 90 Up to 35kV

Product Description

The BURNDY YA6CLBOX is a 6 AWG copper compression terminal designed for wire termination applications. This product provides a reliable connection with a voltage rating of thirty-five kilovolts. The standard barrel and internal inspection window ensure efficient wire termination.

• Suitable for commercial applications with stranded copper conductors.
• UL and CSA approved with a temperature rating of ninety degrees Celsius.
• Features tin plating for enhanced corrosion resistance.

Product Highlights

Use this terminal for secure wire connections in various electrical installations.

Product Information

Standard Information

• Catalog Number: YA6CLBOX
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper
• Voltage Rating: 35 kV
• Wire Strip Length: 7/16 inches
• Pad Size: 0.45 inches x 0.08 inches
• Stud Size: 1/4 inches
• Die Index: 7
• Made in USA: Yes
• Special Features: UL Listed, Electro-Tin plated
