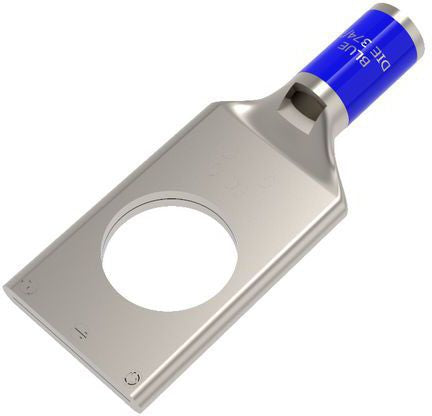

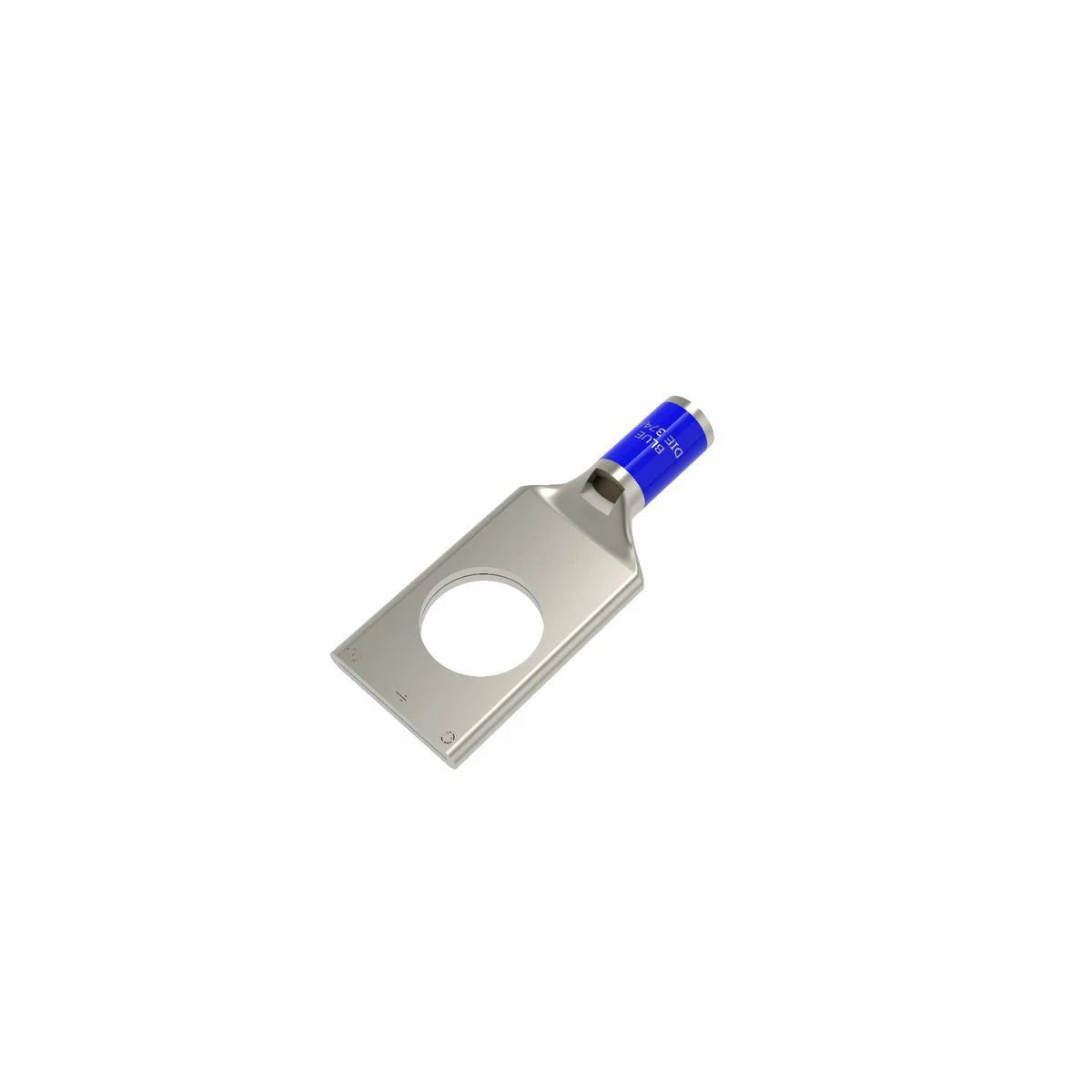

BURNDY YA6CL6 6 AWG CU, One Hole, 1/2 Stud Size, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA 90 Up to 35kV, BLUE Color Code, 7 or 374 Die Index

Product Description

The BURNDY YA6CL6 is a 6 AWG copper cable lug designed for reliable wire termination. This product features a standard barrel with an inspection window and internal chamfer for ease of use. The tin-plated finish ensures durability and resistance to corrosion. Suitable for high voltage applications up to thirty-five kilovolts, this lug meets UL and CSA standards.

• Voltage rating: 600 V to 35 kV.
• Constructed from copper with a blue color code.
• Features a beveled entry with a chamfered design.

Product Highlights

This cable lug is ideal for commercial stranded copper conductors and includes an electro-tin plated finish that enhances conductivity and longevity.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Country of Origin: United States

Technical Specifications

• Catalog Number: YA6CL6
• Application: Wire Termination
• Material: Copper
• Voltage Rating: 35
• Standard: UL 486A-486B
• Die Index: 7/374
• Temperature Rating: 90 Degrees Celsius
• Wire Strip Length: 9/16 Inches
