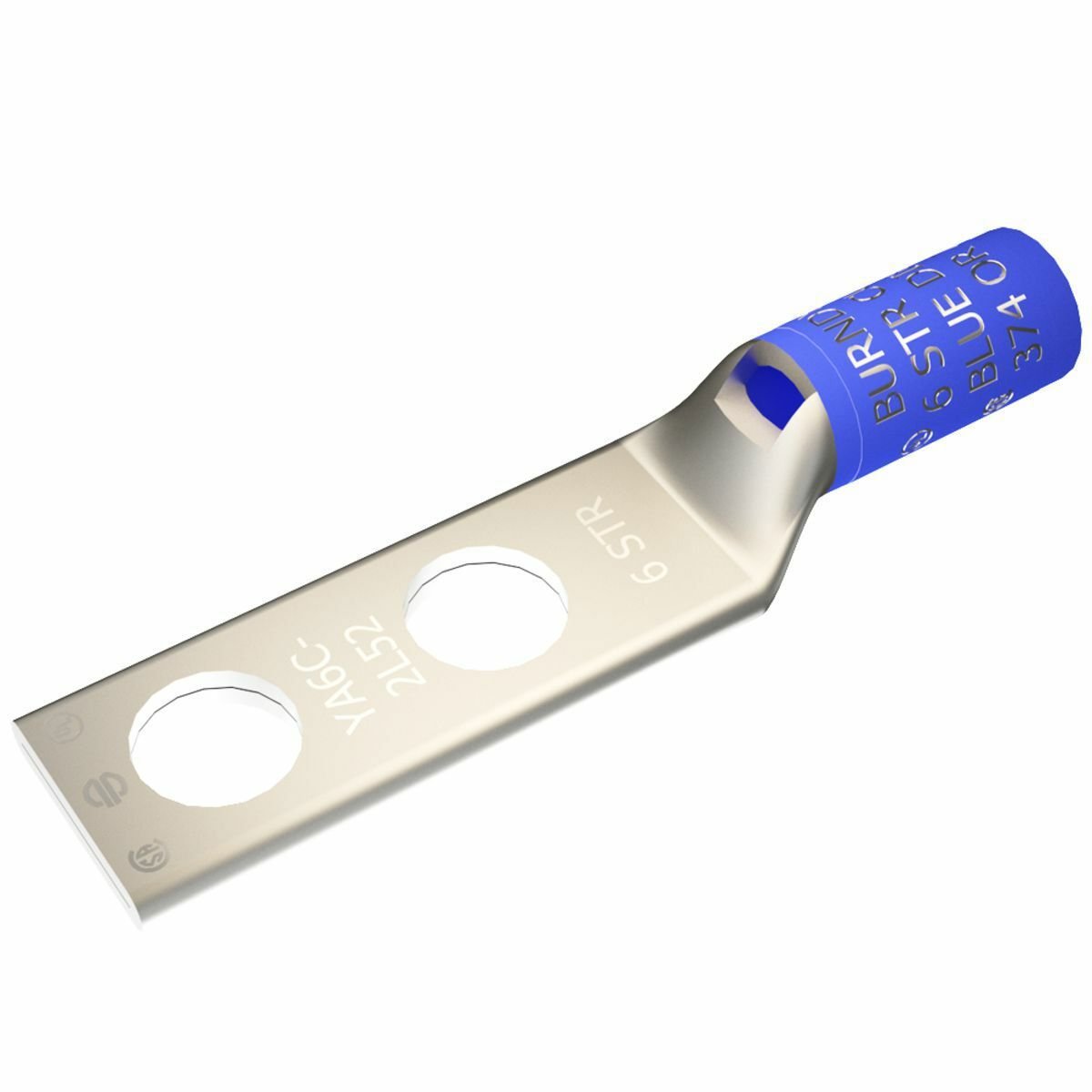

BURNDY YA6CL2TC38 6 AWG CU Two Hole 3/8 Stud Size 1 Hole Spacing Standard Barrel Inspection Window Internal Chamfer Tin Plated UL/CSA 90C Up to 35kV Blue Color Code 7 or 374 Die Index

Product Description

The BURNDY YA6CL2TC38 is a two-hole compression terminal designed for reliable wire connections. This product accommodates 6 AWG copper conductors. It is suitable for various applications requiring efficient wire termination with high voltage capabilities.

• Voltage rating up to thirty-five kV.
• Built with an internal chamfer and inspection window.
• Tin plated for improved conductivity and corrosion resistance.

Product Highlights

This compression terminal features a clear inspection window for quality assurance and is designed to fit specific crimping tools that ensure a secure connection.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Country of Origin: United States

Technical Specifications

• Catalog Number: YA6CL2TC38
• Material: Copper
• Die Index: 7
• Temperature Rating: 90°C
• Pad Hole Spacing: 1 inch
• Stud Size: 3/8 inch
• Finish: Electro-Tin Plated
• Wire Strip Length: 7/8 inch
