Burndy YA6CL1BOX 6 AWG CU One Hole 8-10 Stud Size Standard Barrel Inspection Window Internal Chamfer Tin Plated UL/CSA 90 Up to 35kV Blue Color Code 7 or 374 Die Index

Product Description

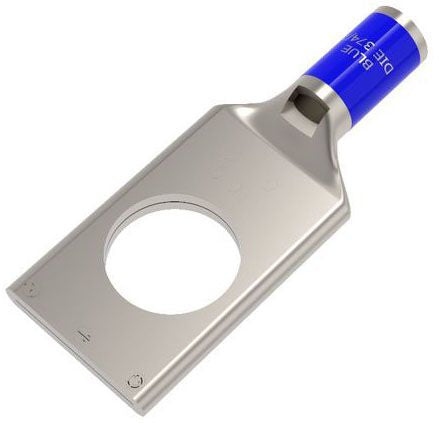

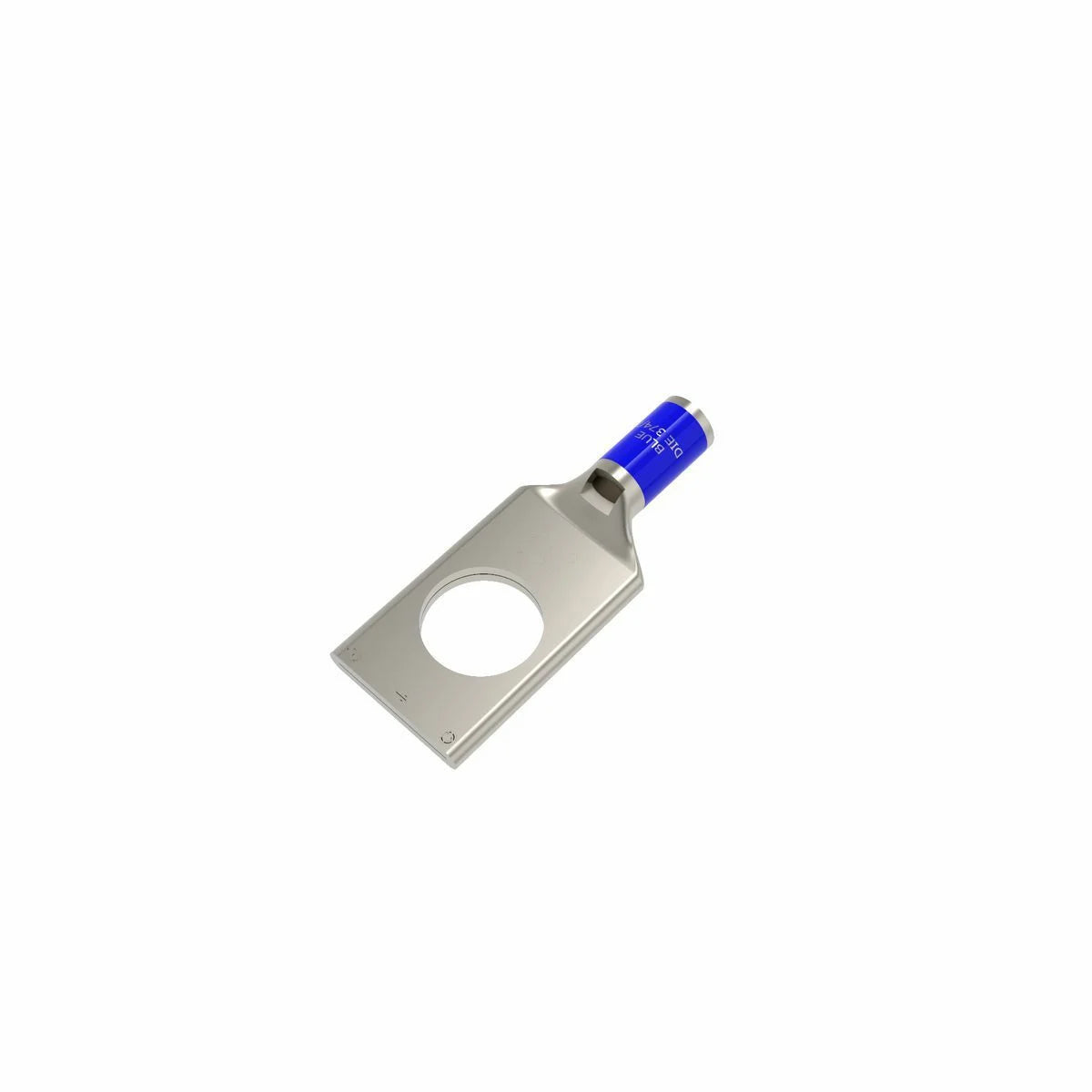

Burndy YA6CL1BOX is a compression cable lug designed to connect copper conductors effectively. It is rated for use with conductors of six AWG and features a one-hole design suitable for #8 to #10 stud sizes.

• Internal inspection window for easy verification
• UL Listed for temperatures up to ninety degrees Celsius
• Electro-tin plated finish for corrosion resistance

Product Highlights

This lug is ideal for wire termination, providing reliable electrical connections in various applications.

Product Information

Standard Information

• Brand: Burndy
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YA6CL1BOX
• Material: Copper
• Voltage Rating: 35 kV
• Temperature Rating: 90 Deg C
• Wire Strip Length: 7/8 inches
• Die Index: 7
• Special Features: Features UL Listed 90 Deg C, 600 V - 35 kV, straight tongue angle, and a variety of die sets compatible with different tools.
• Country of Origin: United States
• UPC: 781810552803
• Cross Reference Products: 54134
