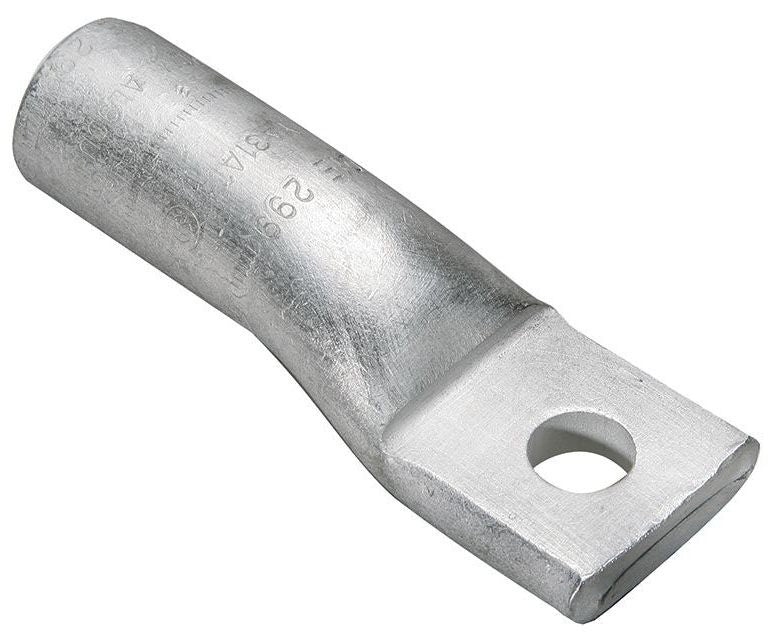

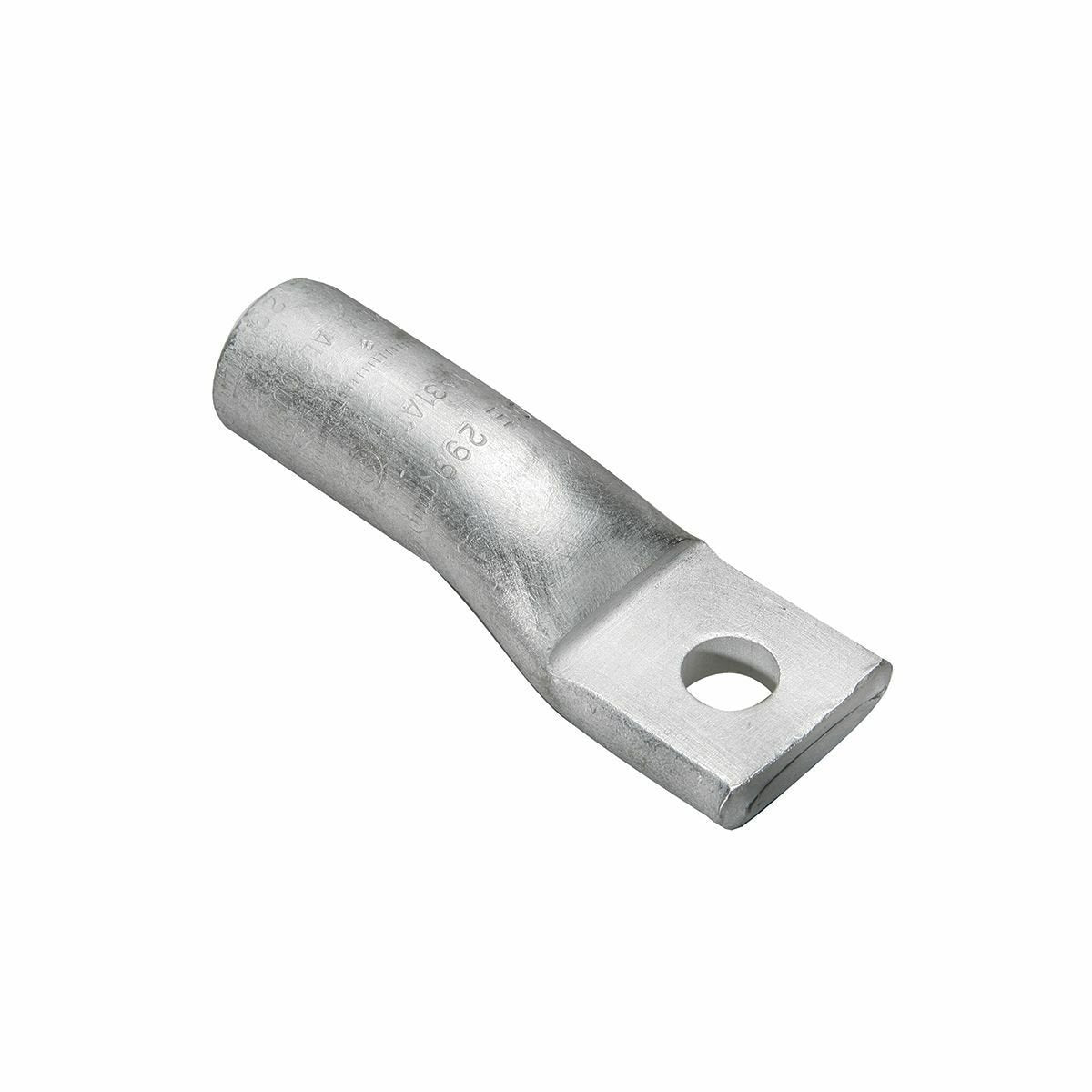

BURNDY YA6CA3 6 AWG, AL Terminal, One Hole, 3/8, Stud Size, AL9CU, Internal Chamfer, Tin Plated, Prefilled PENETROX?, End Cap, UL/CSA, 90?C, Up to 35kV, Gray Color Code, 346 Die Index.

Product Description

The BURNDY YA6CA3 is a reliable terminal designed for wire termination. This product features a one-hole design specifically for six AWG aluminum conductors. It is dual-rated for use with copper conductors as well. The YA6CA3 comes with a prefilled PENETROX oxide inhibitor and color-coded end caps, ensuring ease of use and preventing contamination before application.

• Designed for aluminum and copper conductors
• Maximum voltage rating of up to thirty-five kilovolts
• Meets UL486A-486B standards for electrical reliability

Product Highlights

The YA6CA3 terminal provides a permanent, trouble-free electrical connection with a heavy-duty wall thickness for optimal conductivity. It features easy cable insertion thanks to an internally beveled barrel. This product is made in the USA and is UL listed for safety and quality.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• UPC: 781810752159
• Catalog Number: YA6CA3

Technical Specifications

• Voltage Rating: 35 kV
• Conductor Size: 6 AWG
• Stud Size: 3/8 inch
• Barrel Type: Straight
• Length: 2.28 inches
• Material: Tin-plated aluminum
• Country of Origin: United States
• Application: Wire termination
