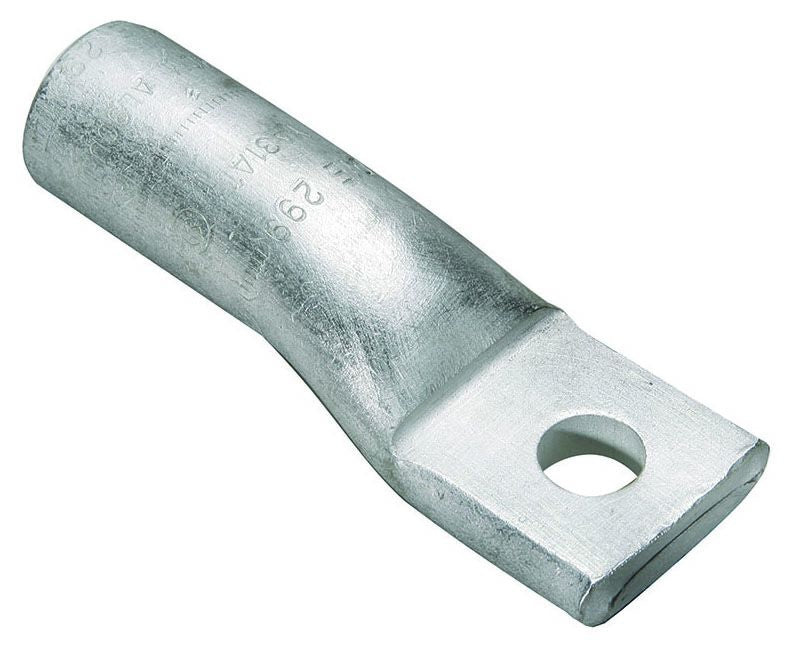

BURNDY YA6CA1 6 AWG AL Terminal One Hole 1/4 Stud Size AL9CU

Product Description

The BURNDY YA6CA1 is a 6 AWG aluminum terminal designed for one-hole applications. It supports both aluminum and copper conductors. The terminal is prefilled with PENETROX oxide inhibitor and is suitable for heavy-duty applications up to thirty-five kilovolts.

• Rated for a maximum temperature of ninety degrees Celsius.
• Meets UL486B standards for electrical connections.
• Features color-coded end caps for identifying conductor size and specifications.

Product Highlights

This terminal features a durable construction with corrosion resistance and easy cable insertion for efficient wiring. It is UL listed for safety and reliability.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Country of Origin: United States

Technical Specifications

• Catalog Number: YA6CA1
• Material: Aluminum
• Application: Wire Termination
• Voltage Rating: 35 kV
• Die Index: 346
• Size: 6 AWG
• Pad Size: 0.47 inches by 0.14 inches
• Stud Size: 1/4 inches
• Special Features: Tin-plated, prefilled with PENETROX
