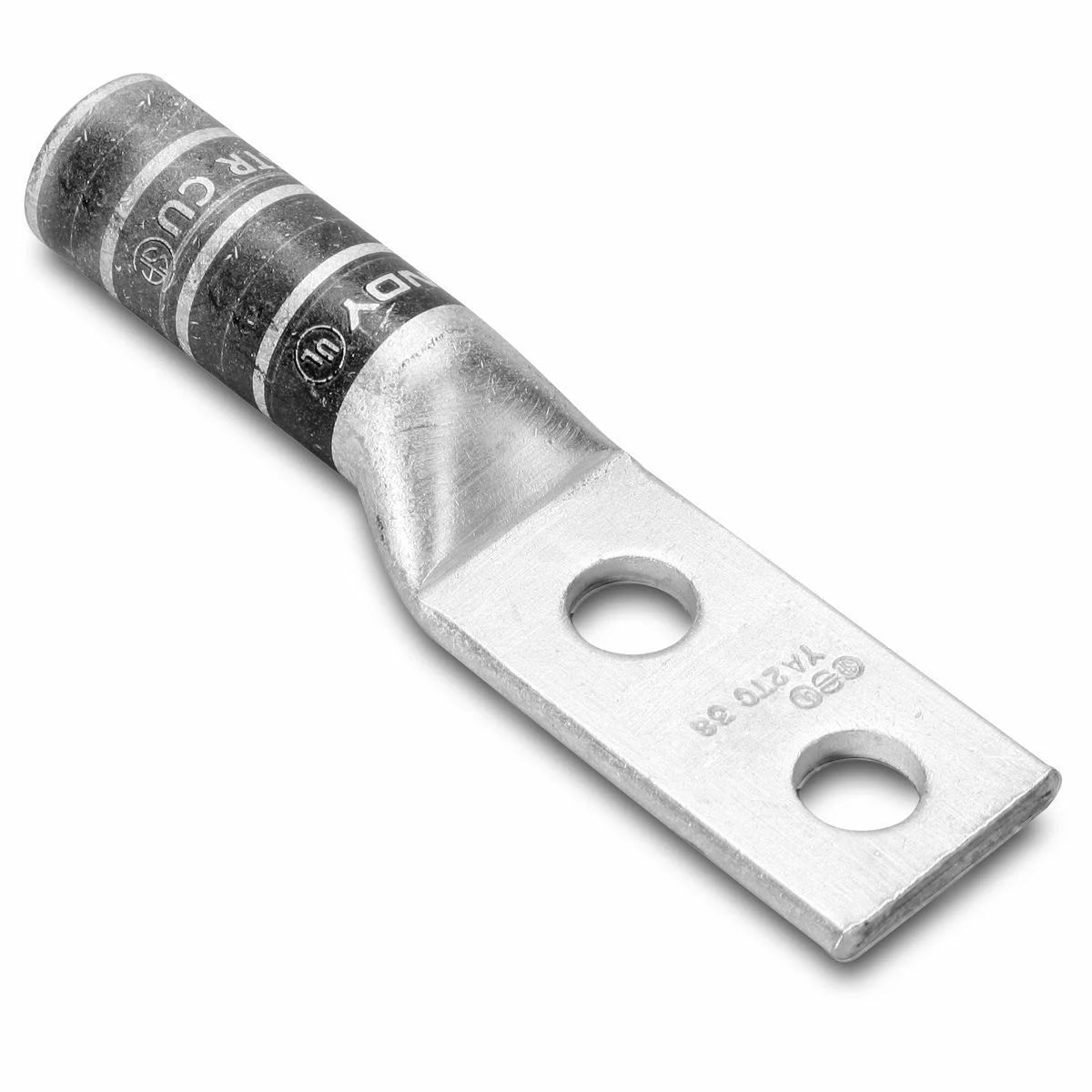

BURNDY YA6C2TC14 Compression Cable Lug 600V to 35kV 6 AWG Two Hole

Product Description

The BURNDY YA6C2TC14 is a compression cable lug designed for wire termination. This product is made by BURNDY, a Hubbell affiliate, and supports a voltage rating of six hundred volts to thirty-five kilovolts. The lug is suitable for use with six American Wire Gauge (AWG) stranded copper conductors.

• Voltage Rating: 600 volts to 35 kilovolts
• Material: Tin plated copper
• UL Listed and CSA approved

Product Highlights

This compression lug features a long barrel design with a straight, skived barrel for improved connectivity. The lug has a wire strip length requirement of one and three-sixteenths inches.

Product Information

Standard Information

• Catalog Number: YA6C2TC14
• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper
• Approval: UL 468A/468B, CSA
• Voltage Rating: 35 kV
• Die Index: 7 or 374
• Dimensions: Overall length is two point six five inches
• Pad Size: 0.45 inches wide x 0.08 inches thick with two pad holes
• Temperature Rating: 90 degrees Celsius
• Country of Origin: United States
• Application: Wire termination
