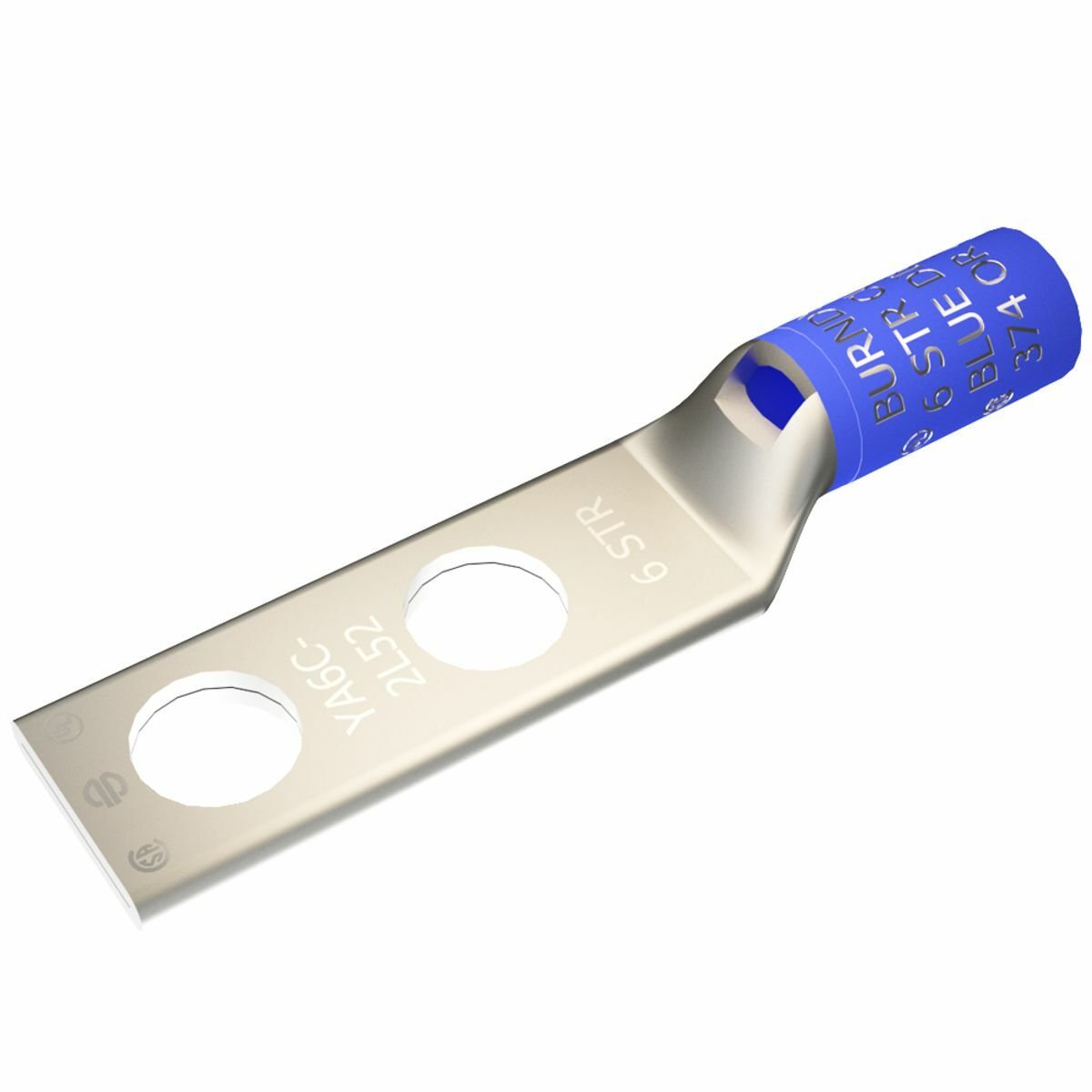

BURNDY YA6C2L Copper Compression Lug, 2 Hole w/ Inspection Window, 6 AWG, 1/4 Stud, 5/8 Stud Hole Spacing

Product Description

The BURNDY YA6C2L is a copper compression lug designed for efficient wire termination. This product features a two-hole design with an inspection window, making it suitable for various applications in electrical installations.

• Material: Copper
• Voltage Rating: 600 V - 35 KV
• Made in the USA

Product Highlights

The copper compression lug provides a reliable connection for stranded conductors of six AWG size. It is UL listed and features an electro-tin plated finish for enhanced conductivity and corrosion resistance.

Product Information

Standard Information

• Catalog Number: YA6C2L
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Application: Wire Termination
• Barrel Type: Short, Skived, Standard, Straight
• Pad Size: 0.45 inches W x 0.08 inches thick
• Pad Hole Spacing: 0.625 inches
• Stud Size: 1/4 inches
• Wire Strip Length: 5/8 inches
• Temperature Rating: 90 °C
• Finish: Electro-Tin Plated
