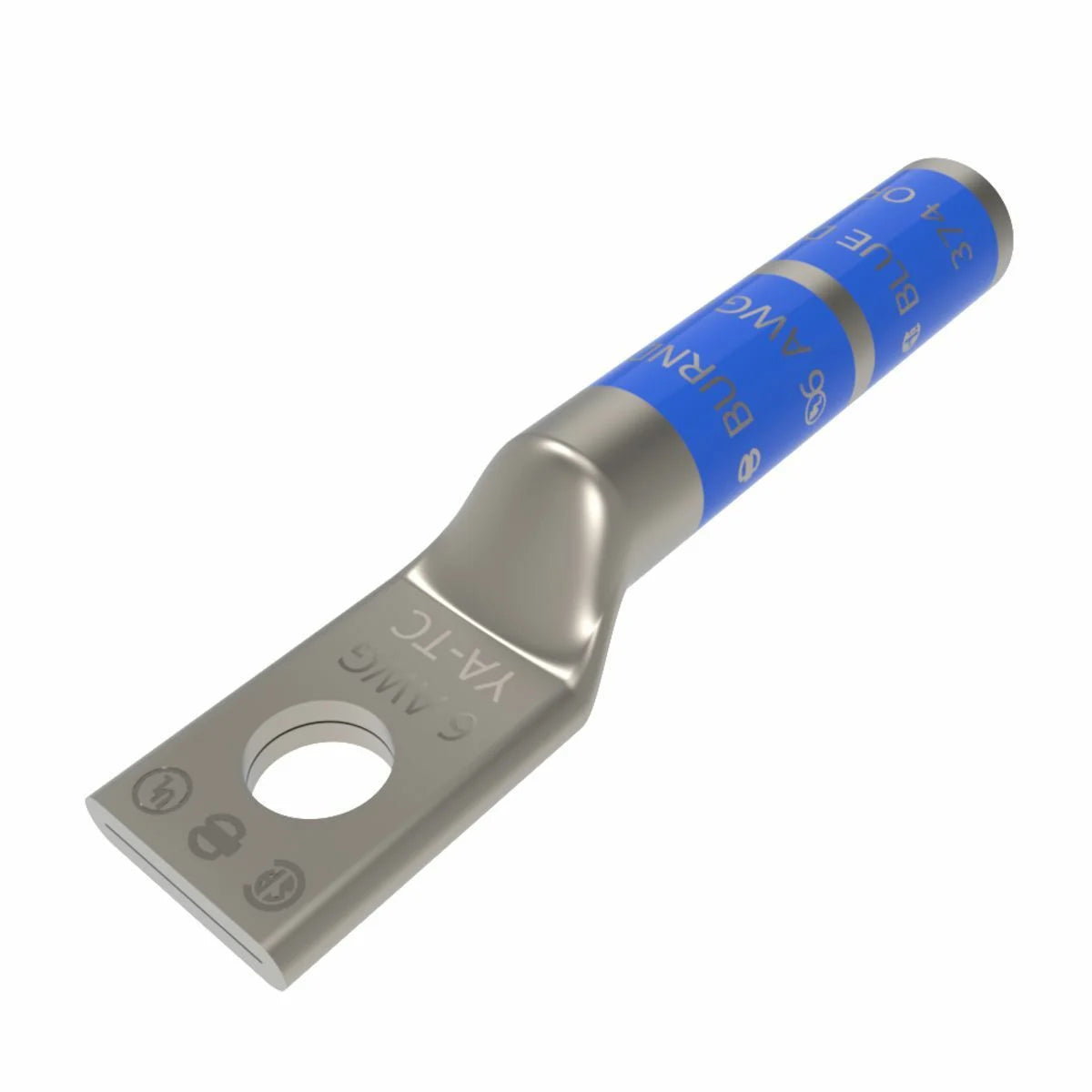

BURNDY YA6C 6 AWG CU One Hole 1/4 Stud Size Long Barrel Internal Chamfer Tin Plated UL/CSA 90°C Up to 35kV

Product Description

The BURNDY YA6C is a compression cable lug designed for efficient wire termination. This product is suitable for use with six AWG copper wires. It features a one hole design with a quarter inch stud size, perfect for secure connections. This lug is made from copper and is tin plated for enhanced conductivity and corrosion resistance.

• Rated for voltage up to thirty-five kilovolts.
• Temperature rated for ninety degrees Celsius.
• UL and CSA approved for safety and reliability.

Product Highlights

The YA6C is ideal for high voltage applications where secure and reliable connections are critical. Its electro-tin plating ensures durability and longevity in various environments.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YA6C
• Material: Copper
• Application: Wire Termination
• Barrel Type: Long, Straight
• Voltage Rating: 35 kV
• Temperature Rating: 90°C
• Wire Strip Length: 1-3/16 inches
• Die Index: 7
• Country of Origin: USA
