BURNDY YA4CL3BOX 4 AWG CU, One Hole, 5/16 Stud Size, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA 90? Up to 35kV, GRAY Color Code, 8 or 346 Die Index

Product Description

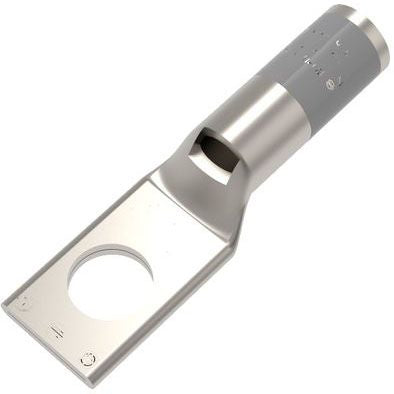

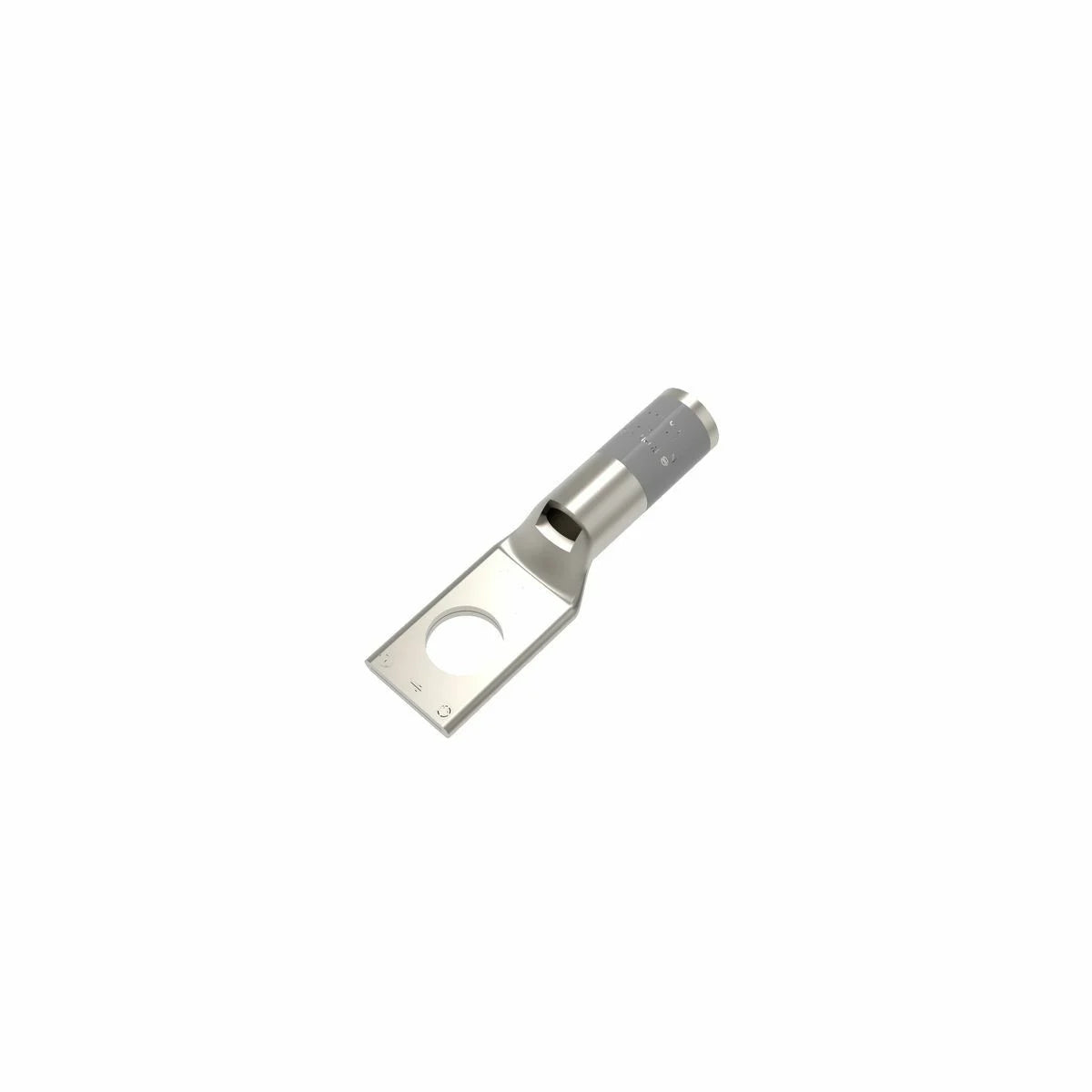

The BURNDY YA4CL3BOX is a compression cable lug designed for effective wire termination. It accommodates a conductor size of 4 AWG and ensures a secure connection with its one-hole setup and 5/16 inch stud size. The lug is made from copper and features a standard barrel type that allows for straightforward installation in various applications.

• Voltage Rating: 35 kV
• Temperature Rating: 90 °C
• Material: Copper with electro-tin plating

Product Highlights

This cable lug is UL and CSA approved and suitable for high voltage applications. Its internal chamfer and inspection window enhance usability and allow for a visual inspection during installation.

Product Information

Standard Information

• Catalog Number: YA4CL3BOX
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Application: Wire Termination
• Cross Reference Products: 54139
• Special Features: Features UL Listed 90 °C, 600 V - 35 kV; available angles: 45 ° and 90 °; package: box; die index: 8; wire strip length: 7/8 inches; color code: gray.
• Country of Origin: United States
• UPC: 781810552438
• Voltage Rating: 35
