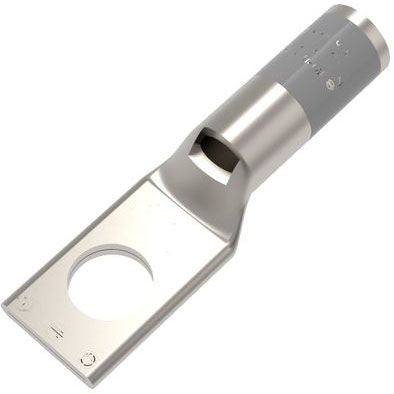

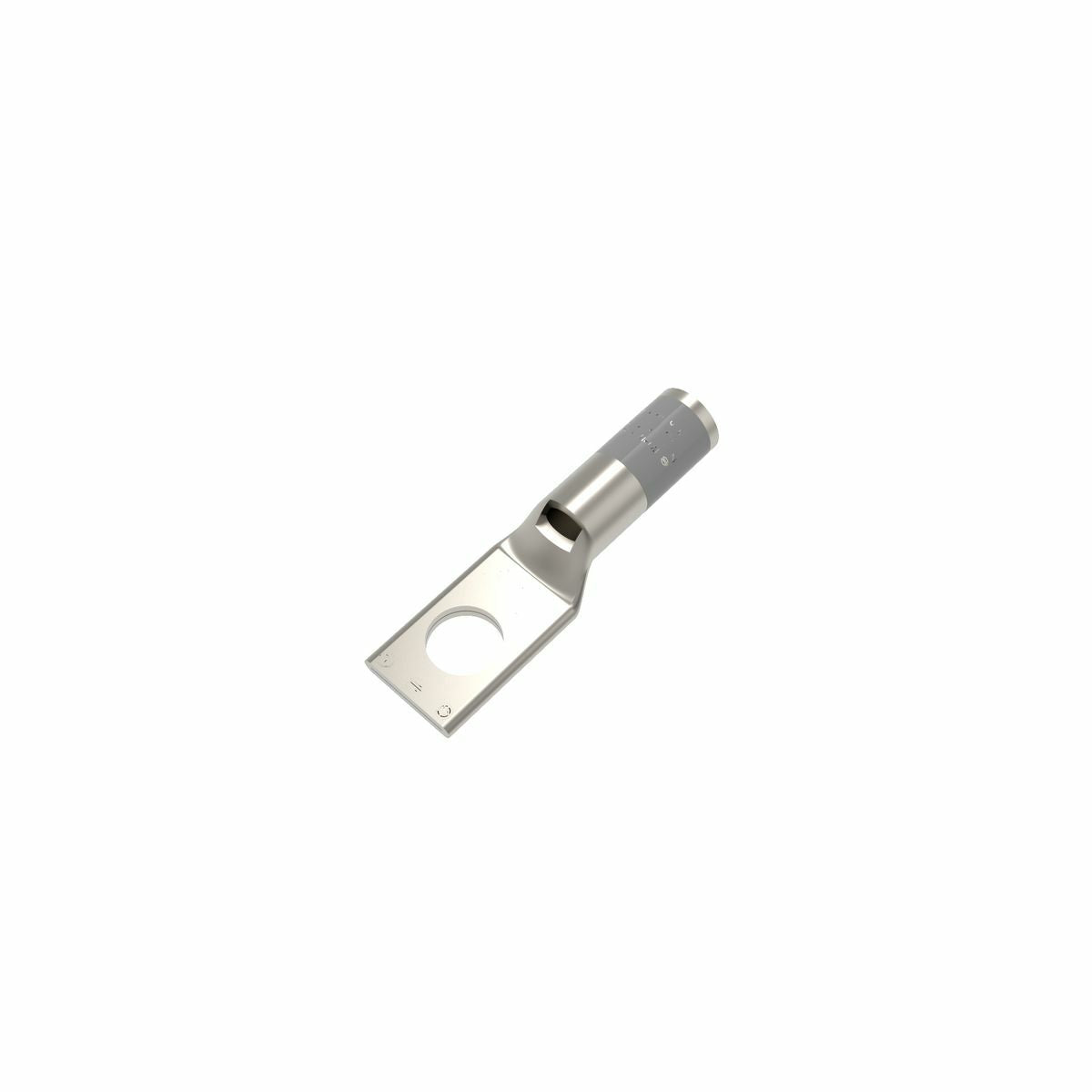

BURNDY YA4CL1BOX 4 AWG CU 1 HOLE STANDARD BARREL TIN PLATED

Product Description

The BURNDY YA4CL1BOX is a 4 AWG copper compression cable lug designed for wire termination. This lug features a standard barrel with a one-hole design suitable for stud sizes #8 to #10. It is electro-tin plated for enhanced conductivity and corrosion resistance.

• Voltage Rating: 600V to 35kV
• Temperature Rating: 90 Degrees Celsius
• Wire Strip Length: Seven-Eighths Inch

Product Highlights

This product includes an inspection window, providing visibility into the connection for verification. It is suitable for use in various applications including commercial stranded copper conductors.

Product Information

Standard Information

• Catalog Number: YA4CL1BOX
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper
• Country of Origin: United States
• Special Features: UL Listed 90 Degrees Celsius, 600 V - 35 KV, with 45 Degrees and 90 Degrees angles available
• Die Index: 8
• Color Code: Gray
• Application: Wire Termination
• Voltage Rating: 35
