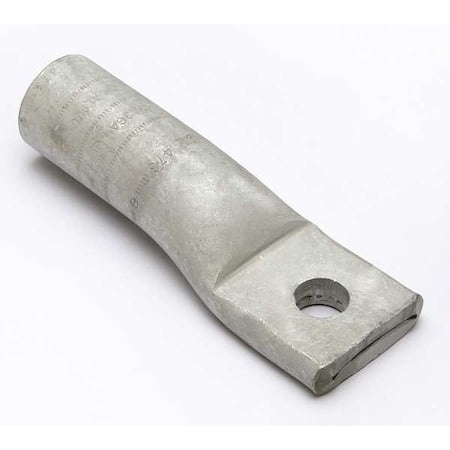

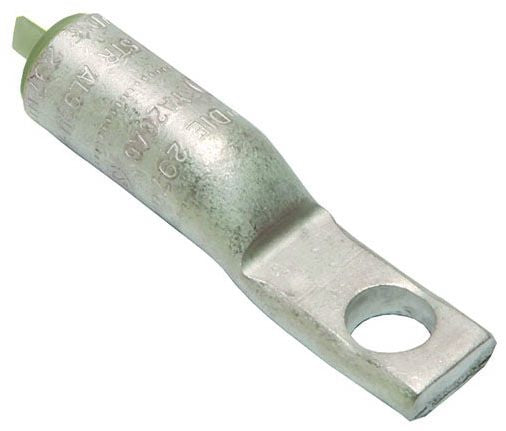

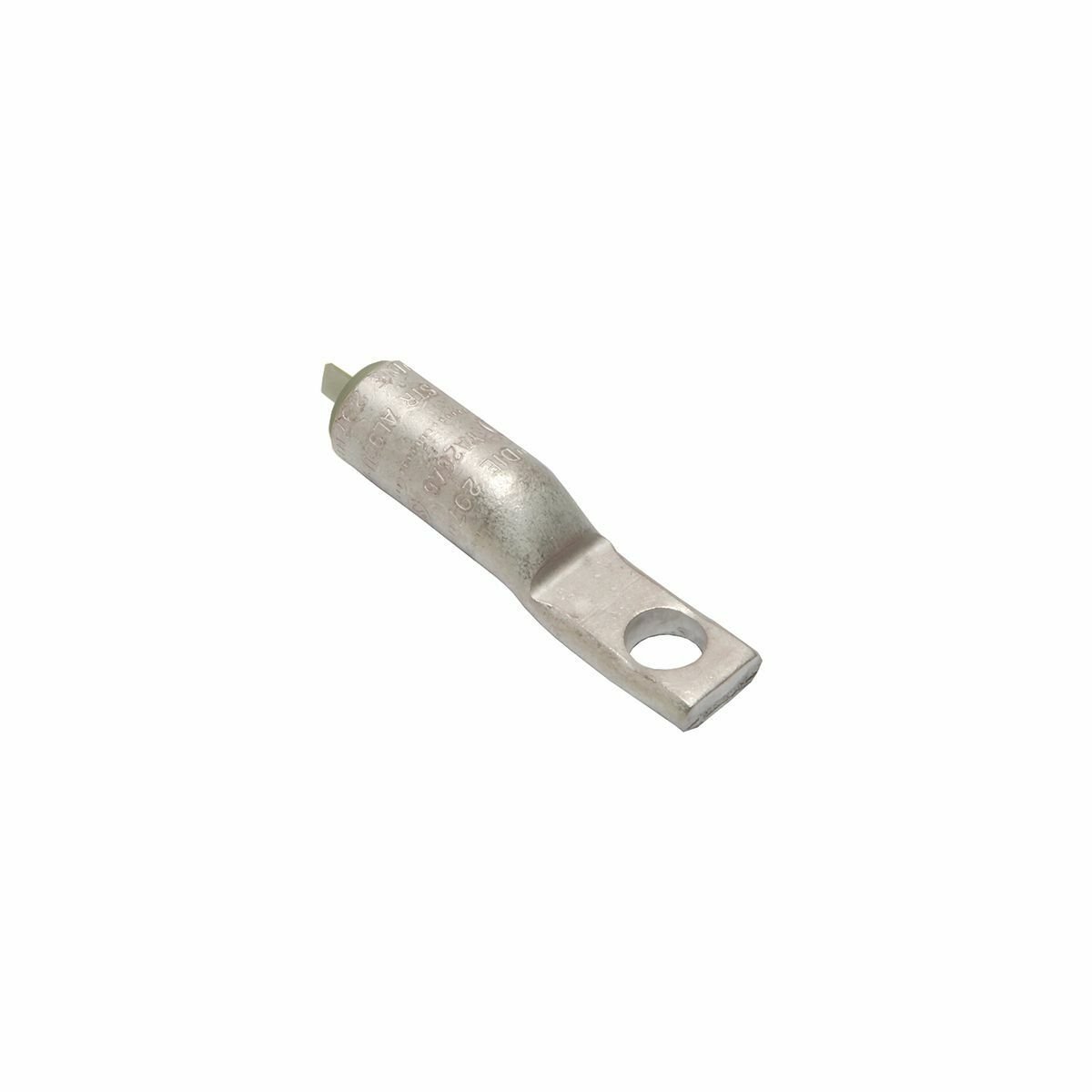

Burndy YA4CA6 AL Terminal 4 AWG 3/8 inches Stud

Brand: BURNDY
SKU: YA4CA6
Availability: In Stock

Ships same day if ordered by 12 pm
$18.48
$18.48
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The BURNDY YA4CA6 is an aluminum terminal designed for use with both aluminum and copper conductors. This HYLUG terminal is tin-plated and prefilled with PENETROX oxide inhibiting compound. It is designed for heavy-duty applications up to 35kV. The terminal features a color-coded end cap and is clearly marked with wire size and die index.

  • Dual-rated for aluminum and copper conductors
  • Prefilled with PENETROX oxide inhibiting compound
  • Electro-tin plated for corrosion resistance

Product Highlights

This aluminum compression terminal ensures a reliable electrical connection for heavy-duty applications, with easy cable insertion and clear markings for proper crimping.

Product Information

Standard Information

  • Brand: BURNDY
  • Manufacturer Part Number: YA4CA6
  • Country of Origin: USA
Technical Specifications
Type
1-Hole Non-Insulated
Brand
Burndy
Width
0.8 in
Finish
Tin Plated
Height
0.43 Inch
Length
2.32 Inch
Plated?
Yes
Voltage
35,000 Volt
Material
Aluminum
Stud Size
0.375 in
Sub Brand
HYLUG
Wire Size
4 AWG
Cable Size
4 AWG Stranded
Max Voltage
35000 V
Applications
For Aluminum And Copper Conductors
Color Coding
Green
Plating Type
Tin - Electro Plated
Conductor Size
4 AWG
Connection Type
Terminal
Number of Holes
1 Hole
Country of Origin
USA
Buy American Compliant
Y
CSA
No
Catalog Number
YA4CA6
Manufacturer
Burndy, a Hubbell affiliate
Made in USA
Yes
Application
Wire Termination
Special Features
Features: Type YA-A Aluminum Tin-Plated Compression HYLUG Terminals are dual-rated and designed for use on both aluminum and copper conductors. Designed for heavy duty application to 35kV. YA-A terminals are prefilled with PENETROX oxide inhibitor and assembled with color-coded end caps. Designed for a permanent trouble-free electrical termination. Heavy duty wall thickness provides maximum conductivity, low resistance, and ductility. Electro-Tin Plating provides durable long lasting corrosion resistance. Internally bevelled barrel provides easy cable insertion. Meets UL486B 90 DEG C Requirements. Connector is clearly marked with wire size, die index, color-code and proper number and location of crimps. Color-Coded End Caps inserted in barrel end prevents foreign material from entering and contaminating the connector prior to usage. UL Listed 90 DEG C, 600 V - 35 kV
Standard
UL 486A-486B
Voltage Rating
35 kV
Item Type
YA-A, Dual Rated
Die Index
375
Lug Wire Size
4 AWG
Rating - KVA
35 kV
Feature - Barrel Type
Standard
Dimension - Hole Size inch
0.41
Dimension - Pad Width inch
0.80 in
Dimension - Outside Diameter i
0.43 in
Item [Specifications]
One-Hole Lug Compression Connector
Die Code [Specifications]
375
Barrel Size [Specifications]
Standard
Barrel Style [Specifications]
Chamfered
Tongue Angle [Specifications]
Straight
Tongue Width [Specifications]
0.8 in
For Stud Size [Specifications]
3/8 in
For Wire Size [Specifications]
4 AWG
For Wire Type [Specifications]
Solid, Stranded
Overall Width [Specifications]
0.8 in
Tongue Length [Specifications]
0.94 in
Connector Type [Specifications]
Standard Barrel
Contact Finish [Specifications]
Tin
Plate Material [Specifications]
Electro Tin
RoHS Compliant [Specifications]
Yes
Inspection Hole [Specifications]
No
Maximum Voltage [Specifications]
35 kV AC
Wire Size Range [Specifications]
4 AWG - 4 AWG
Tongue Thickness [Specifications]
0.12 in
Wire Size Ranges [Specifications]
4 AWG - 4 AWG
Termination Style [Specifications]
Crimp
Hole Center to End [Specifications]
0.44 in
For Conductor Material [Specifications]
Aluminum, Copper
Barrel Outside Diameter [Specifications]
0.43 in
Length (Straight Wireway) [Specifications]
2.32 in
Maximum Operating Temperature [Specifications]
194 Degrees F
For Stranded Copper Wire Size - Maximum [Specifications]
4 AWG
For Stranded Copper Wire Size - Minimum [Specifications]
4 AWG
For Stranded Aluminum Wire Size - Maximum [Specifications]
4 AWG
Feature - Barrel Style
Chamfered
Finish Type
Tin-Plated
Physical Attribute - Number of Holes
1
Physical Attribute - Tongue Type
Standard
Temperature Rating
194
Trade Name
HYLUG™
Dimension - B Length inch
0.88 in
Dimension - Bolt Hole Size inch
0.39
Dimension - Bolt Size inch
0.38
Dimension - D inch
0.94 in
Dimension - Length Overall inch
2.32 in
Dimension - N inch
0.44 in
Dimension - Z (inch)
0.50 in
Physical Attribute - Tongue Angle
Straight
Conductor - AL Str Size
4 AWG
Conductor - AL Str Size Range
4 AWG
Conductor - Copper Str Size
4 AWG
Conductor - Copper Str Size Range
4 AWG
Conductor - Material
ALUMINUM / COPPER
Conductor Type
CODE
Certification - CSA Approved
Yes
Industry Standard(s)
UL 486A-486B
Standards - Industry Standards Met
UL 486A-486B
UL Listed
Yes
Series
YA-A
Volts AC
600
Allowable Gauge Range
4
Number of Ports
1
Contact Material
Copper
Number of Poles
1
MPN
YA4CA6
Compatible Mounting Type
Wire
EU RoHS Indicator
Yes
