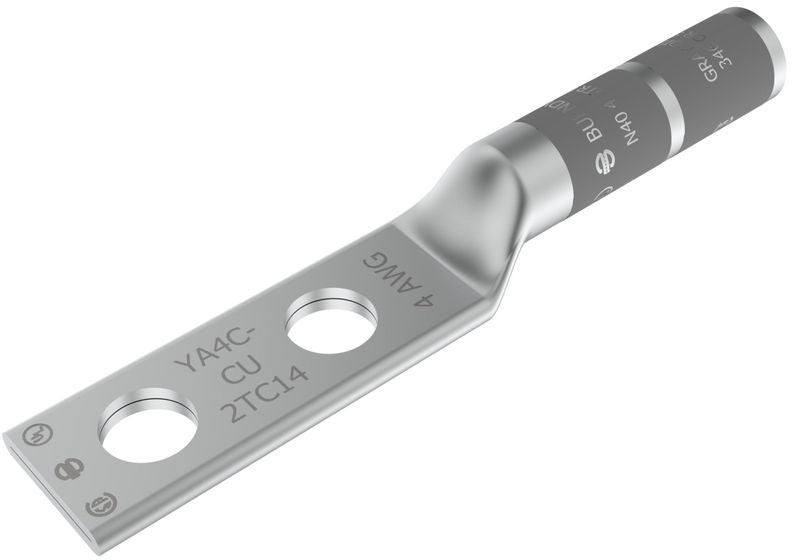

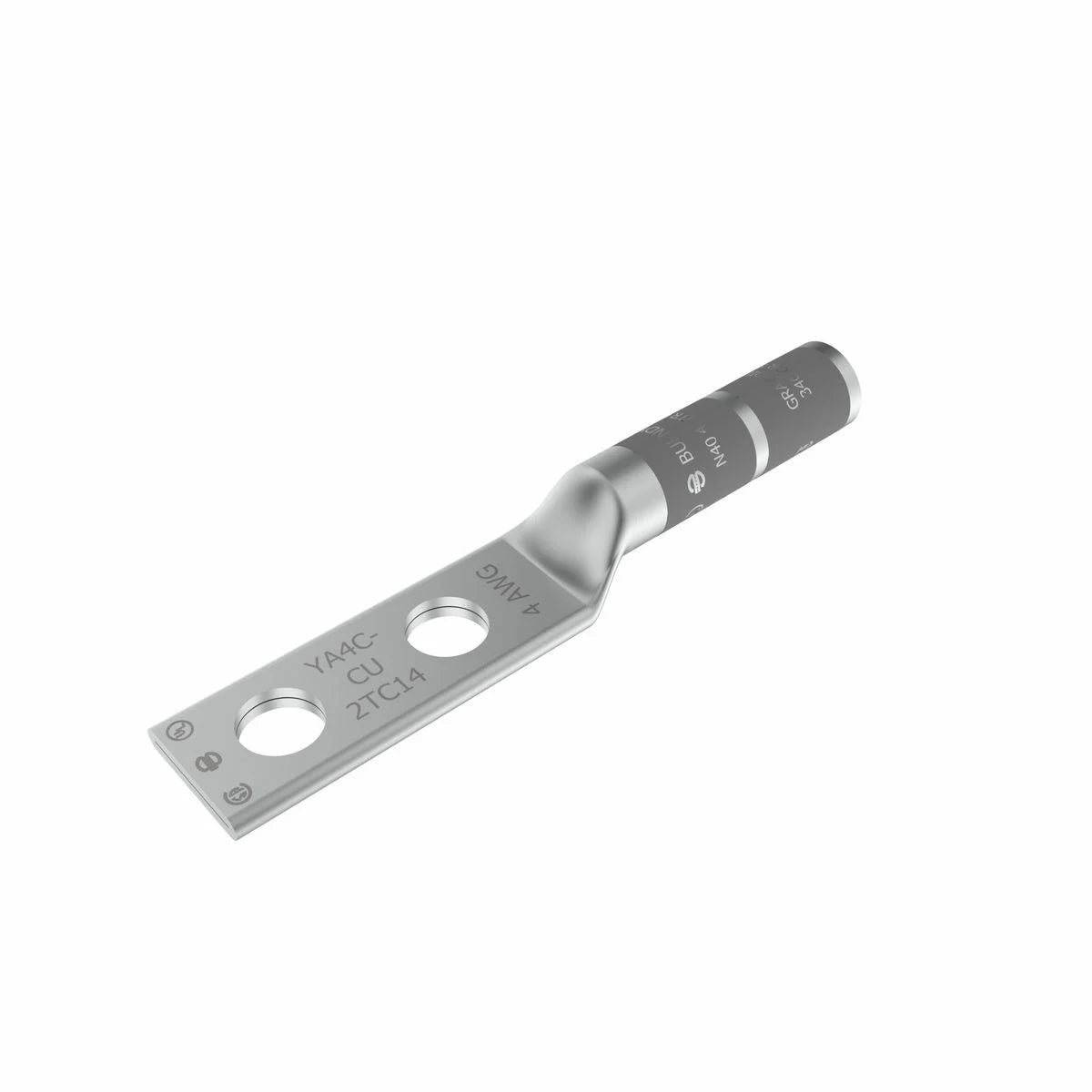

BURNDY YA4C2TC14 4 AWG CU Two Hole 1/4 Stud Size 5/8 Hole Spacing Long Barrel Internal Chamfer

Product Description

The BURNDY YA4C2TC14 is a compression cable lug designed for wire termination. This product is made from high-quality copper and features a long barrel design. The lug supports a variety of applications, making it suitable for both residential and commercial electrical projects.

• Suitable for 4 AWG stranded copper conductors.
• Voltage rating of up to 35 kV.
• Electro-tin plated for corrosion resistance.

Product Highlights

Ideal for high-voltage applications, this cable lug is UL Listed and compliant with standard UL 486A-486B. It offers reliable connections under various conditions and ensures excellent conductivity.

Product Information

Standard Information

• Catalog Number: YA4C2TC14
• Brand: BURNDY

Technical Specifications

• Material: Copper
• Application: Wire Termination
• Voltage Rating: 35 kV
• Temperature Rating: 90 degrees Celsius
• Wire Strip Length: 1-3/16 inches
• Pad Hole Spacing: 5/8 inches
• Stud Size: 1/4 inches
• Die Index: 8/346
