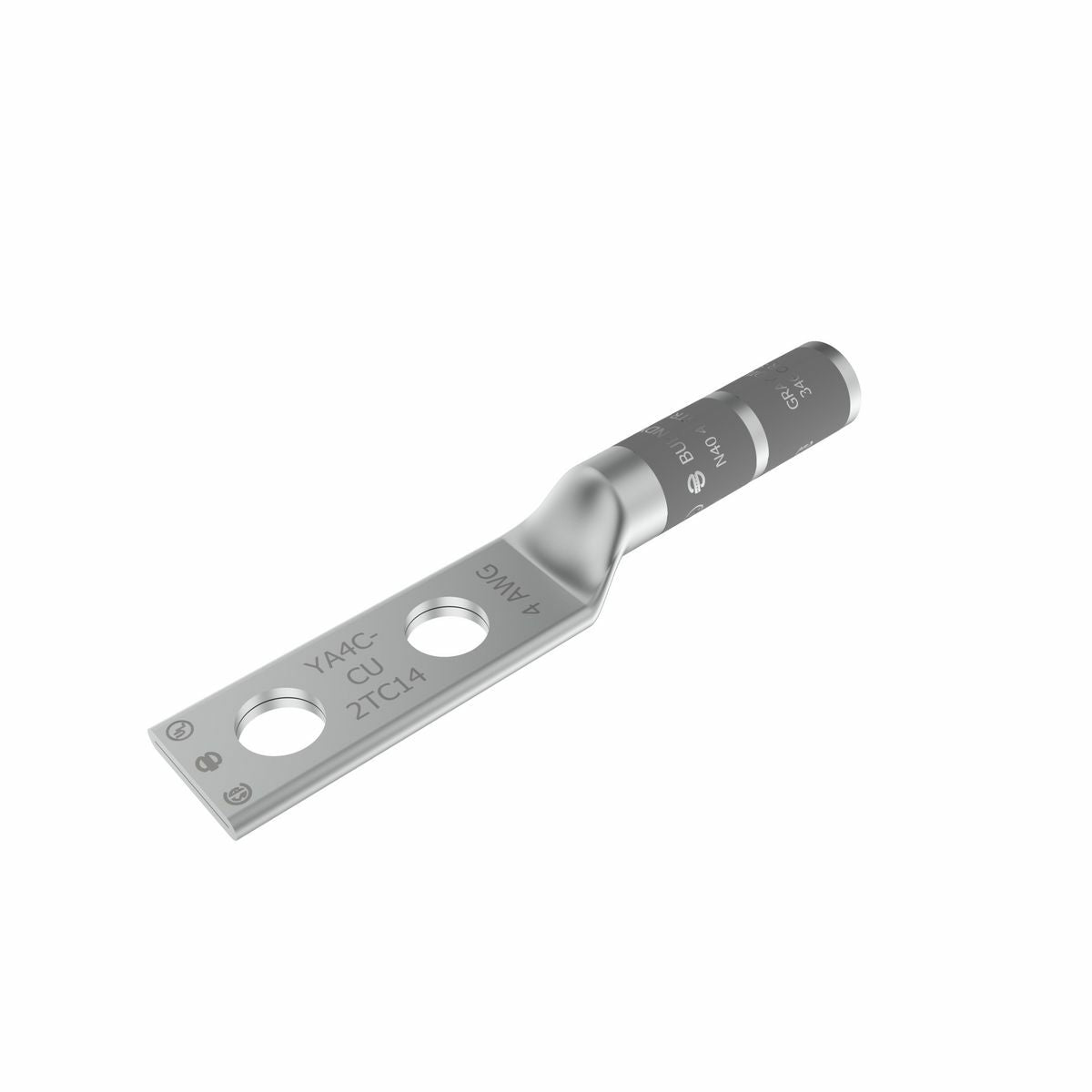

BURNDY YA4C2N 4 AWG CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel Internal Chamfer, Tin Plated

Product Description

The BURNDY YA4C2N is a reliable electrical connector designed for tension connections in various wire applications. It features a 4 AWG copper construction and is suitable for use with a variety of conductor types. This lug is UL listed and can handle voltage ratings from 600 volts to 35 kilovolts, ensuring safety and efficiency in high voltage applications.

• UL Listed for safety and reliability
• Long barrel design for improved electrical contact
• Suitable for wire termination in commercial applications

Product Highlights

This lug is designed for wires requiring secure and robust connections in challenging environments. It is ideal for industrial and commercial settings.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YA4C2N
• Material: Copper
• Voltage Rating: 35 kV
• Temperature Rating: 90 °C
• Finish: Electro-Tin Plated
• Wire Strip Length: 1-3/16 inches
• Tongue Angle: Straight
• Pad Size: 0.83 inches width, 0.12 inches thickness
• Pad Hole Spacing: 1.75 inches
