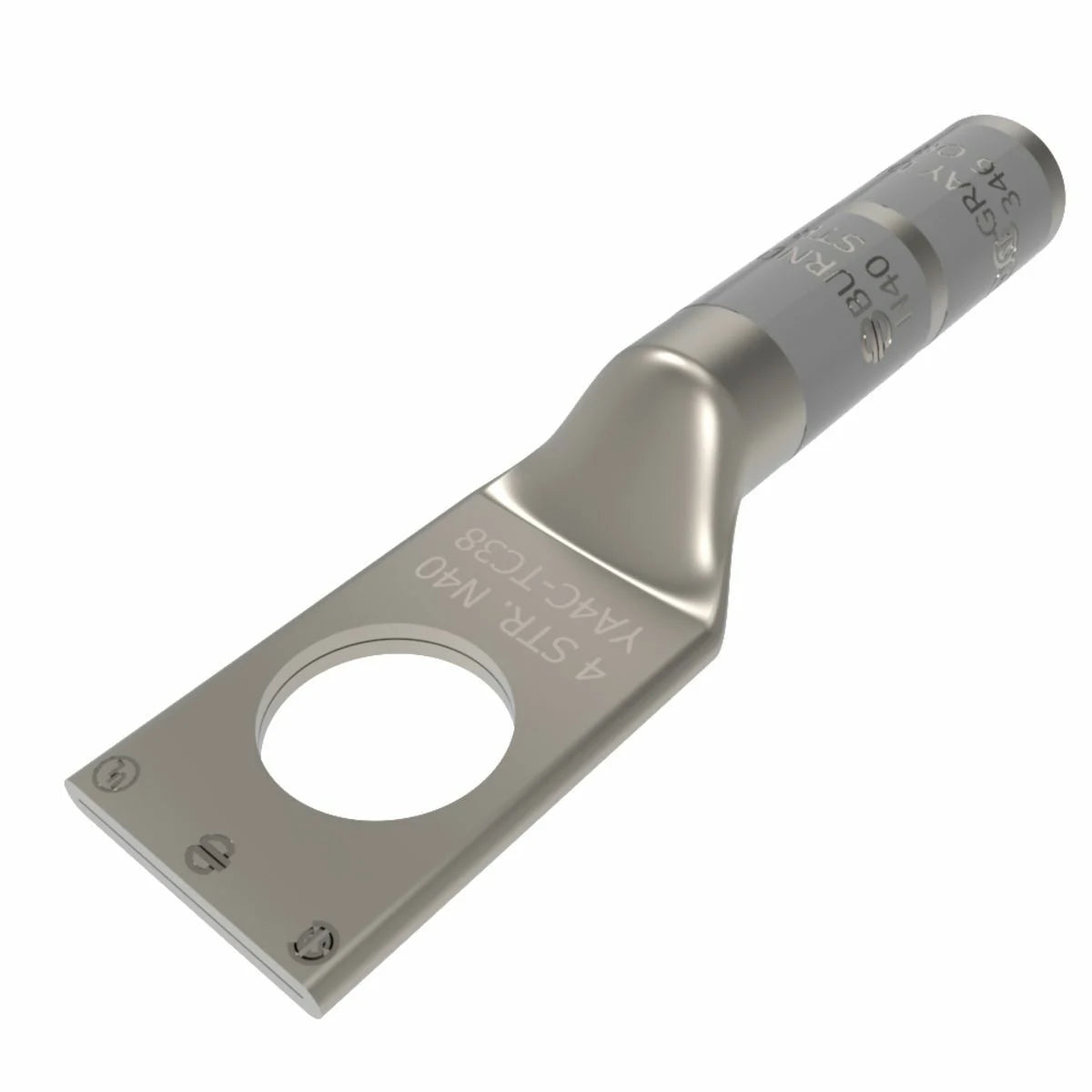

BURNDY YA4C 4 AWG CU One Hole 1/4 Stud Size Long Barrel Internal Chamfer Tin Plated UL/CSA 90C Up to 35kV

Product Description

The BURNDY YA4C is a copper compression cable lug designed for effective wire termination. This product is suitable for wire sizes of four AWG and rated up to thirty-five kilovolts. It features a long barrel design with a chamfered entry for easy installation.

• Meets UL 486A-486B standards.
• Designed for a voltage rating of thirty-five kilovolts.
• Made of electro-tin plated copper.

Product Highlights

This cable lug is ideal for commercial stranded copper conductors. The internal chamfer allows for efficient wire strip lengths of one and three-sixteenths inches, ensuring reliable connections.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Country of Origin: United States

Technical Specifications

• Catalog Number: YA4C
• Material: Copper
• Voltage Rating: 35 kV
• Barrel Length: 1.12 inches
• Pad Size: 0.5 inches width x 0.09 inches thickness
• Stud Size: 1/4 inches
• Temperature Rating: 90 degrees Celsius
• Die Index: 8/346
