Burndy YA44L Copper 1-Hole Lug 35 kV (1000 MCM) YA44L

Product Description

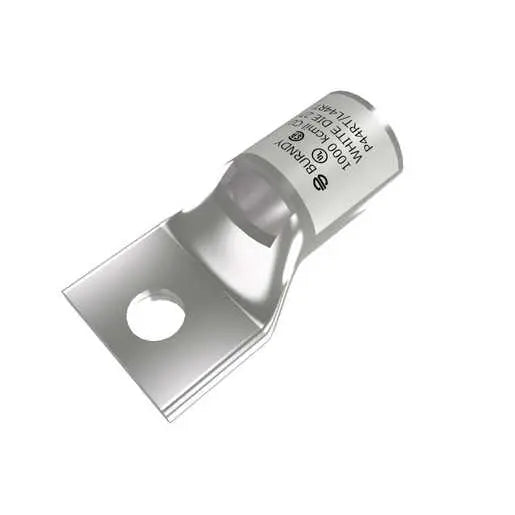

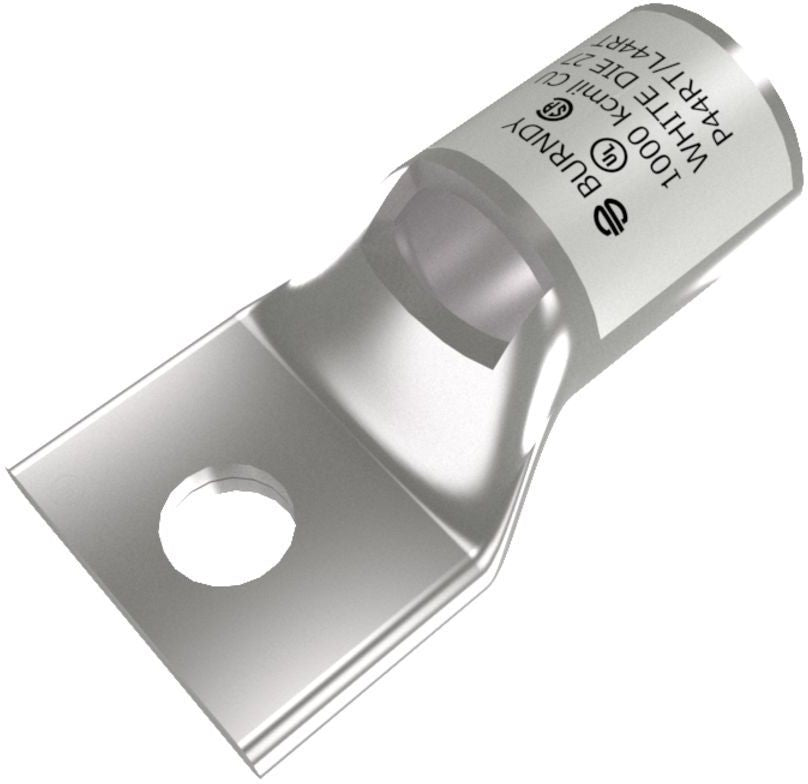

The Burndy YA44L is a copper compression terminal designed for terminating 1000 kcmil (1000 MCM) stranded copper conductors and fitting a 5/8 in stud. It features an electro tin-plated finish, an internal chamfered cable entry and an inspection window for visual verification. The lug has a standard straight barrel (1.65 in) and is rated to 35 kV with a 90 C temperature rating and UL/CSA approvals for power connection and cable termination applications.

• Fits 1000 kcmil stranded copper conductors and accepts a 5/8 in stud
• Electro tin-plated copper construction with internal chamfer, chamfered/beveled cable entry and inspection window
• Rated to 35 kV (35,000 V), 90 C temperature rating; UL listed and CSA approved

Product Highlights

Copper compression lug for 1000 kcmil conductors, 1-hole 5/8 in stud, tin-plated, inspection window, 35 kV rating, UL/CSA approved

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YA44L
• Country of Origin: USA

Technical Specifications

• Brand: Burndy
• Manufacturer Part Number: YA44L
• Product Type: Compression terminal (lug)
• Material: Copper
• Plating: Electro tin plated
• Conductor Size: 1000 kcmil (1000 MCM) stranded
• Conductor Material: Copper
• Number of Holes: 1
• Stud Size: 5/8 in
• Barrel Type: Standard, straight, non-insulated
• Barrel Length: 1.65 in
• Cable Entry: Chamfered / beveled (internal chamfer)
• Wire Strip Length: 1-15/16 in
• Pad Width: 2.19 in
• Pad Thickness: 0.33 in
• Hole Size (bolt/hole): Approximately 0.66 - 0.69 in (5/8 in stud)
• Overall Length: 4.04 in
• Voltage Rating: 35 kV (35,000 V)
• Temperature Rating: 90 C
• Inspection Window: Yes
• Die Index: 27
• Standards / Certifications: UL listed (UL 486A-486B), CSA approved
• RoHS Compliance: Yes
• Trade Name: HYLUG
