Burndy YA44A3 AL Terminal, AL9CU, Internal Chamfer, Tin Plated, Prefilled PENETROX A13, End Cap, UL/CSA, 90.C, Up to 35kV, Color Code, Die Index

Product Description

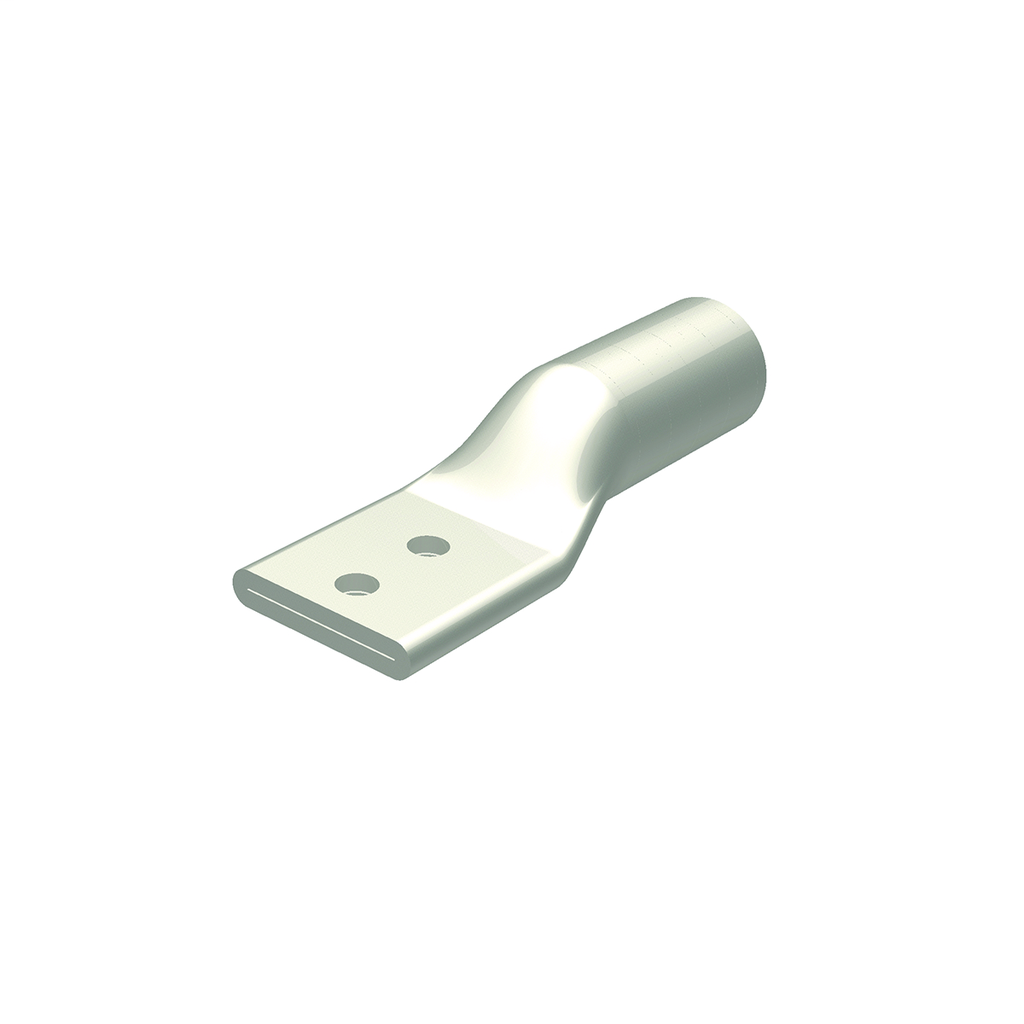

The Burndy YA44A3 is an aluminum compression lug designed for use with aluminum and copper conductors. It features a two-hole design without an inspection window and is suitable for conductor sizes up to one thousand kcmil. The lug is rated for a maximum voltage of thirty-five thousand volts and is tin plated for enhanced conductivity.

• Two-hole design for secure connections
• UL listed for temperatures up to ninety degrees Celsius
• Compatible with aluminum and copper conductors

Product Highlights

Ideal for various electrical applications including wire terminations and connections.

Product Information

Standard Information

• Catalog Number: YA44A3
• Manufacturer: Burndy

Technical Specifications

• Voltage Rating: 35 kV
• Material: Aluminum
• Stud Size: 1/2 in
• Hole Size: 14 mm
• Overall Length: 7.76 in
• Width: 1.65 in
• Height: 1.84 in
• Plating Type: Tin - Electro Plated
